16/07/2025

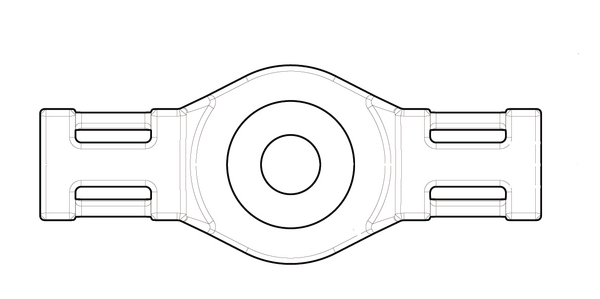

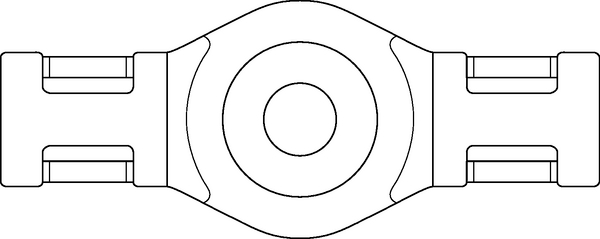

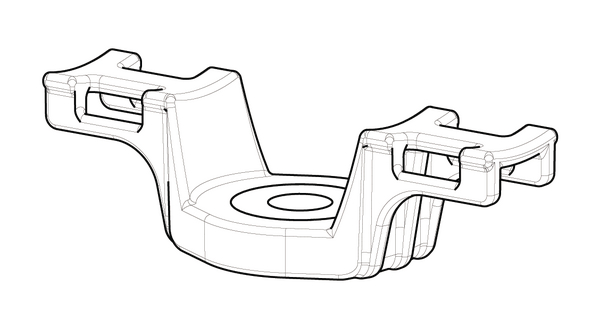

Cable tie mount for screw fixation, Wmax=12.7mm, ⌀9.5 mm, black, 100pcs.
Art.-No. 151-00456 | HDM375BDM-PA66HIRHS-BK |

Copied
HDM375BDM4W is suitable for up to 2 cable ties.
Mount and tie combination makes it easy to service bundles in the field.

    This product is not available anymore.
    • Design offers secure alignment to the bundle
    • Possible replacement of cushion clamps and/or metal clamps
    • Eliminates the needs for multiple sized fix diameter clamps
    • For heavy duty cable ties up to 13.5 mm width
    • Easy maintenance of bundle by simply changing the cable tie
    Add to watchlist

    Request your individual offer now

     Request quote
    Application These heavy duty mounts (HDM) have been primarily designed for use in the automotive and truck industry. Nowadays they can be found in a variety of applications requiring heavy duty mounting in areas like the railway, defence and/or agriculture industry.
    Colour Black (BK)
    Fixation Method Screw Mounting and Rivet
    Key product features vibration absorbing, for multiple routing
    Local order number HDM375BDMC2
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION HDM375BDM-PA66HIRHS-BK
    Pack Cont. 100pcs.
    Package Content packed in Bag
    Product Family HDM375BDM - High Torque Double Mounts
    Product Group Harness clip for heavy duty applications, for screws or threaded bolts
    Type HDM375BDM
    Length (L) 87mm
    Strap Width max. (G) 12.7mm
    Strap Width max. (G) (imperial) 0.5"
    Width (W) 34.5mm
    for Hole ⌀ (FH) 9.5 mm
    Max. Torque (kgf-cm) 1576kgf-cm
    Max. Torque (lbf-In) 114lbf-ft
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin US
    GTIN-13 / EAN 4031026313603
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
