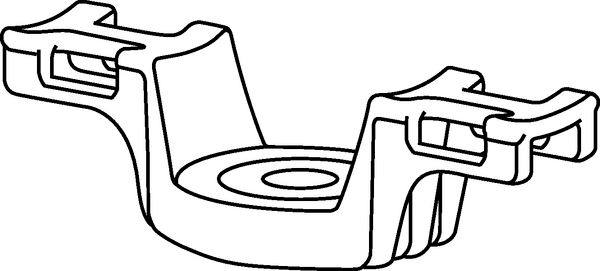

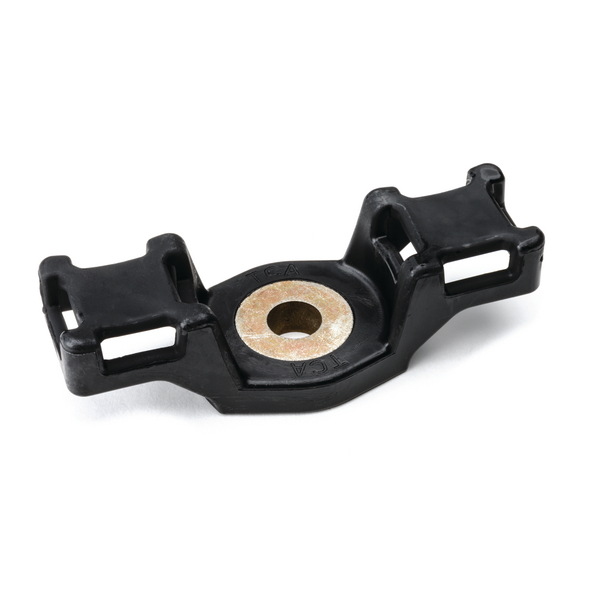

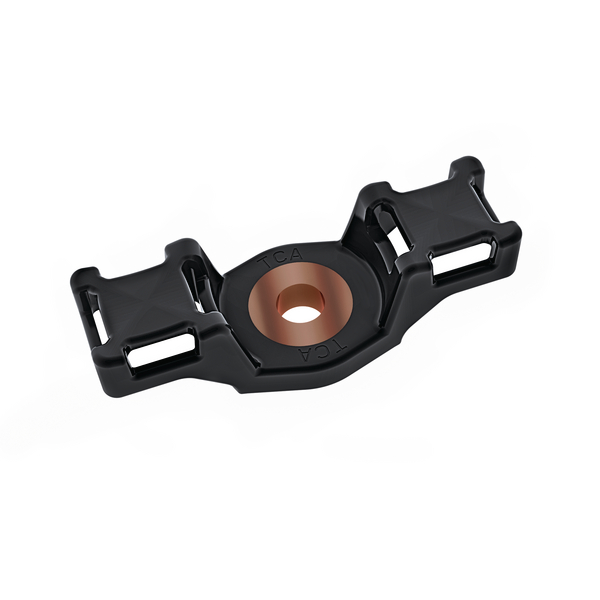

Harness Clip for Heavy Duty Applications, for Screws or Bolts HDM375BDM4W-R

High Torque Double Mounts (metal bushing), Article number: 151-02104

Features

  • Design offers secure alignment to the bundle
  • Possible replacement of cushion clamps and/or metal clamps
  • Eliminates the needs for multiple sized fix diameter clamps
  • For heavy duty cable ties up to 12.7 mm width
  • High tightening torque through metal bushing
  • Easy maintenance of bundle by simply changing the cable tie

Certifications & Approvals

Application

These heavy duty mounts (HDM) have been primarily designed for use in the automotive and truck industry. Nowadays they can be found in a variety of applications requiring heavy duty mounting in areas like the railway, defence and/or argriculture industry.

High Torque Double Mounts (metal bushing) is suitable for following markets and industries

Colour Black (BK)
Fixation Method Screw Mounting and Rivet
Mounting Screw Type 3/8" (M10) Screw
Pack Cont. 100pcs.
Package Quantity per Carton
PART DESCRIPTION HDM375BDM4W-R-PA66HIRHSUV-BK
Product Family High Torque Double Mounts (metal bushing)
Product Group Harness Clip for Heavy Duty Applications, for Screws or Bolts
Type 151-02104

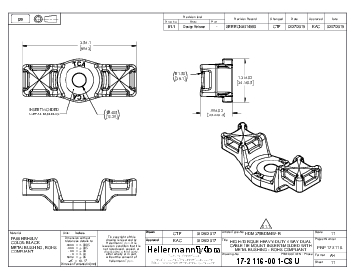

Fixing Hole Centres (F) (imperial) 0.405"
for Hole ∅ (FH) 10.29 mm
Height (H) 25.2mm
Length (L) 89.0mm
Strap Width max. (G) 12.7mm
Strap Width max. (G) (imperial) 0.5"
Width (W) 35.6mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous good No
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Maximum Torque (kgf-cm) 1576.0kgf-cm
Maximum Torque (lbf-In) 114.0lbf-ft
Operating Temperature - °C -40 °C to +110 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
EAN / GTIN 4031026609539
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Weight (kg) 3.639kg
Packaging 3 - Height (m) 0.158m
Packaging 3 - Length (m) 0.435m
Packaging 3 - Qty 100
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0183
Packaging 3 - Weight (kg) 3.9391kg
Packaging 3 - Width (m) 0.266m
Packaging 4 - Height (m) 1.093m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 4200
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.049
Packaging 4 - Weight (kg) 186.442kg
Packaging 4 - Width (m) 0.8m
Weight 0.0874lbs
Weight 3.519kg
ETIM 6.0 EC000449
ETIM 7.0 Key EC000449
UNSPSC Key 39121717
