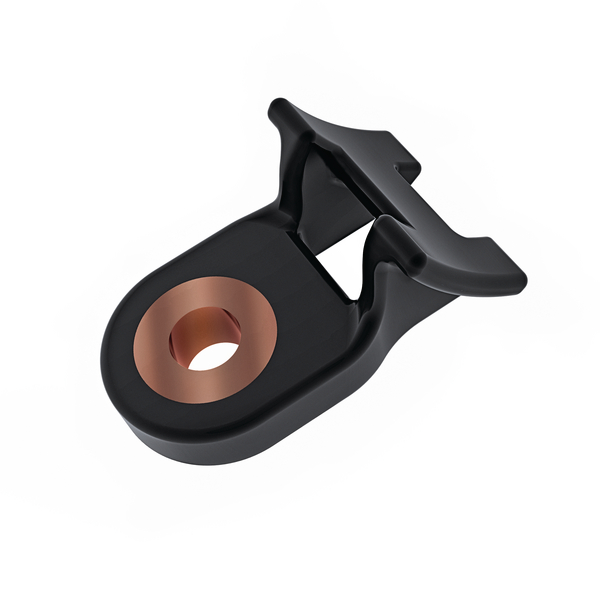

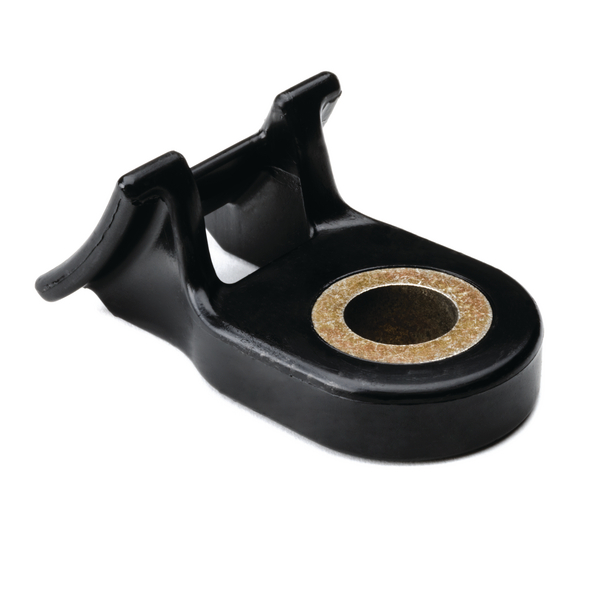

Harness Clip for Heavy Duty Applications, for Screws or threaded Bolts : HDM400
Fixing mount 47x25 mm black, Article number: 151-01224
Features
- Design offers secure alignment to the bundle
- Possible replacement of cushion clamps and/or metal clamps
- Eliminates the needs for multiple sized fix diameter clamps
- For heavy duty cable ties up to 12.7 mm width
- High tightening torque through metal bushing
- Easy maintenance of bundle by simply changing the cable tie
Certifications & Approvals
Application
These heavy duty mounts (HDM) have been primarily designed for use in the automotive and truck industry. Nowadays they can be found in a variety of applications requiring heavy duty mounting in areas like the railway, defence and/or argriculture industry.
High Torque Mounts is suitable for following markets and industries
-
Truck Heavy Equipment
-
Shipbuilding
-
Rail Transportation Sector
-
Wind Energy Sector
-
Electronics Industry
-
Automotive Industry
More products in this product group
Harness Clip for Heavy Duty Applications, for Screws or threaded Bolts >| Colour | Black (BK) |
| Fixation Method | Screw Mounting and Rivet |
| Mounting Screw Type | 3/8" (M10) Screw |
| Pack Cont. | 500pcs. |
| Package Quantity per | Bag |
| PART DESCRIPTION | HDM400-PA66HIRHSUV-BK |
| Product Family | High Torque Mounts |
| Product Group | Harness Clip for Heavy Duty Applications, for Screws or threaded Bolts |
| Short Description | Fixing mount 47x25 mm black |
| Type | HDM400BR |
|
|

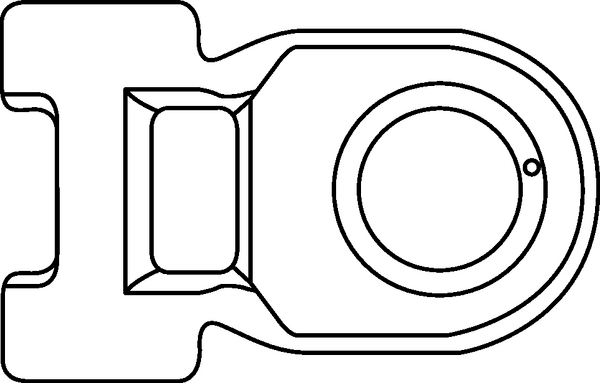

| for Hole ∅ (FH) | 10.29 mm |
| Height (H) | 20.7mm |
| Length (L) | 47.0mm |
| Strap Width max. (G) | 12.7mm |
| Strap Width max. (G) (imperial) | 0.50" |
| Width (W) | 25.0mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Maximum Torque (kgf-cm) | 1576.0kgf-cm |
| Maximum Torque (lbf-In) | 114.0lbf-ft |
| Operating Temperature - °C | -40 °C to +105 °C, (+105 °C for 500 h) |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
|
|
|
| EAN / GTIN | 4031026474021 |
| Packaging 1 - Height (m) | 0.1m |
| Packaging 1 - Length (m) | 0.429m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.01115m³ |
| Packaging 1 - Weight (kg) | 8.555501kg |
| Packaging 1 - Width (m) | 0.26m |
| Packaging 3 - Height (m) | 0.158m |
| Packaging 3 - Length (m) | 0.435m |
| Packaging 3 - Qty | 500 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0183m³ |
| Packaging 3 - Weight (kg) | 8.855501kg |
| Packaging 3 - Width (m) | 0.266m |
| Packaging 4 - Height (m) | 1.251m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 21000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.201m³ |
| Packaging 4 - Weight (kg) | 392.931kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.0349lbs |
| Weight | 8.5555kg |
| ETIM 6.0 | EC000449 |
| ETIM 7.0 Key | EC000449 |
| UNSPSC Key | 39121717 |
