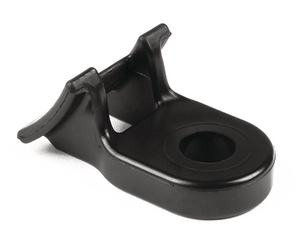

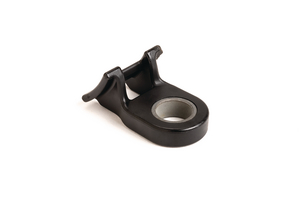

Harness Clip for Heavy Duty Applications, for Screws or threaded Bolts HDM401

High Torque Mounts, Article number: 151-07300

Features

  • Design offers secure alignment to the bundle
  • Possible replacement of cushion clamps and/or metal clamps
  • Eliminates the needs for multiple sized fix diameter clamps
  • For heavy duty cable ties up to 12.7 mm width
  • High tightening torque through metal bushing
  • Easy maintenance of bundle by simply changing the cable tie

Certifications & Approvals

Application

These heavy duty mounts (HDM) have been primarily designed for use in the automotive and truck industry. Nowadays they can be found in a variety of applications requiring heavy duty mounting in areas like the railway, defence and/or argriculture industry.

High Torque Mounts is suitable for following markets and industries

Colour Black (BK)
Fixation Method Screw Mounting and Rivet
Mounting Screw Type 3/8" (M10) Screw
Pack Cont. 500pcs.
Package Quantity per Bag
PART DESCRIPTION HDM401-PA66HIRHSUV-BK
Product Family High Torque Mounts
Product Group Harness Clip for Heavy Duty Applications, for Screws or threaded Bolts
Type HDM401HIHS-HSW-BN-D1
for Hole ∅ (FH) 10.29 mm
Height (H) 20.7mm
Length (L) 46.0mm
Strap Width max. (G) 12.7mm
Strap Width max. (G) (imperial) 0.50"
Width (W) 24.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous good No
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Maximum Torque (kgf-cm) 553kgf-cm
Maximum Torque (lbf-In) 40lbf-ft
Operating Temperature - °C -40 °C to +110 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
EAN / GTIN 4031026616551
Packaging 1 - Height (m) 0.9906m
Packaging 1 - Length (m) 0.2m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.06542
Packaging 1 - Weight (kg) 3.835kg
Packaging 1 - Width (m) 0.3302m
Packaging 3 - Height (m) 0.158m
Packaging 3 - Length (m) 0.435m
Packaging 3 - Qty 500
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0183
Packaging 3 - Weight (kg) 4.135kg
Packaging 3 - Width (m) 0.266m
Packaging 4 - Height (m) 1.23m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 21000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.181
Packaging 4 - Weight (kg) 194.67kg
Packaging 4 - Width (m) 0.8m
Weight 0.01692lbs
Weight 3.835kg
ETIM 6.0 EC000449
ETIM 7.0 Key EC000449
UNSPSC Key 39121717
