Screw Fixing Mounts : KR8G5

Screw Fixing Mount for a broad temperature range, Article number: 151-00654

Features

  • Curved design for additional cable support
  • Simple to install with a screw or bolt
  • Excellent security, particularly in areas of high vibration

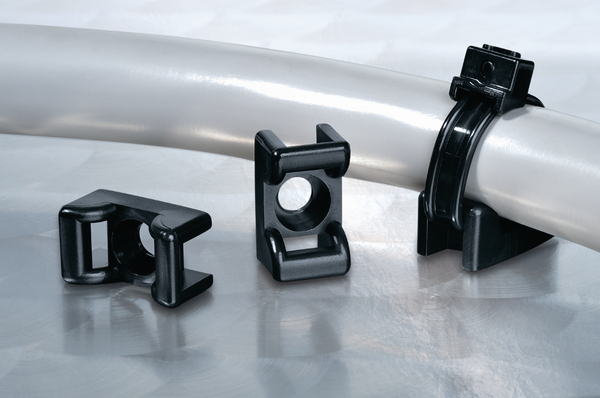

  • Mounts are available in various sizes and materials

Certifications & Approvals

Application

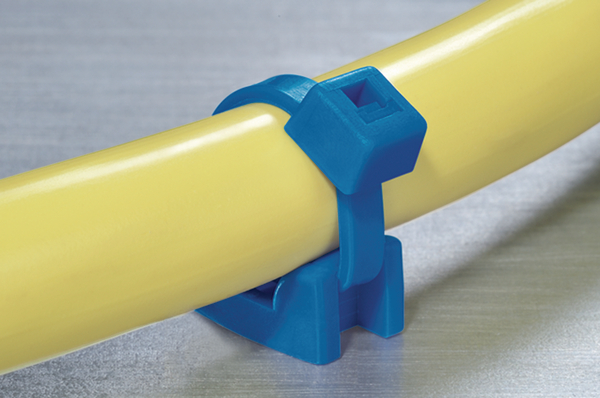

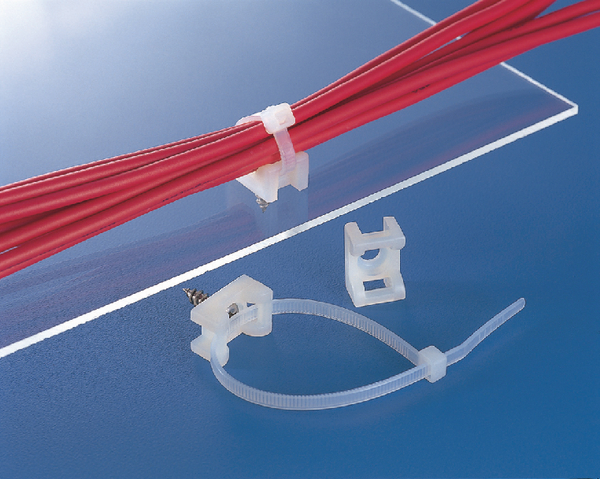

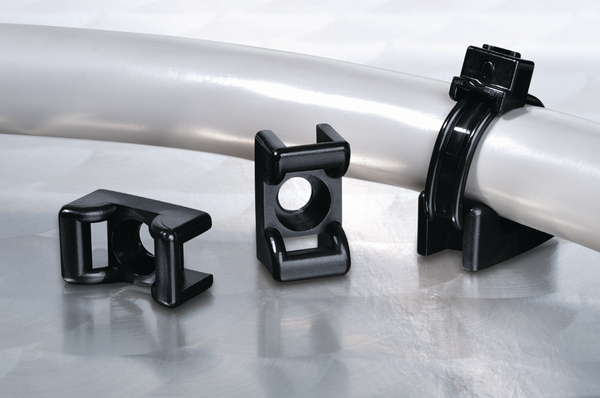

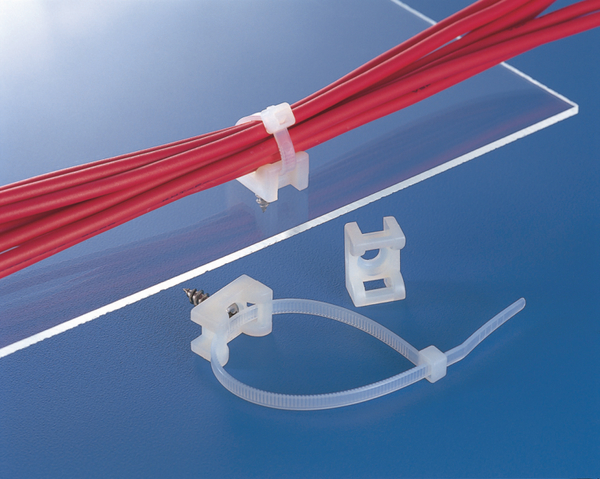

Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries from agriculture to truck manufacturing. They offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 8.3 mm width.

KR-E/TFE for a broad temperature range is suitable for following markets and industries

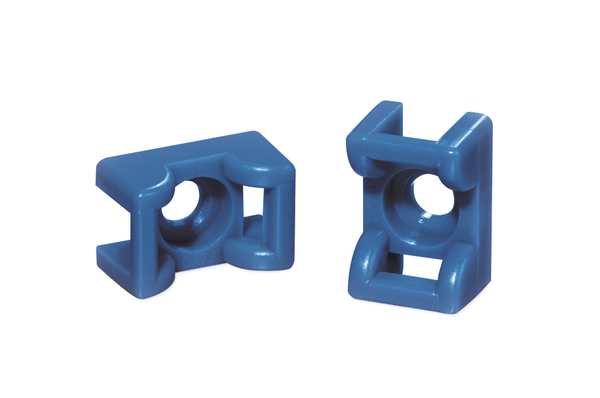

Colour Blue (BU)
Fixation Method Screw Mounting and Rivet
Mounting Screw Type M6
Pack Cont. 100pcs.
Package Quantity per Bag
PART DESCRIPTION KR8G5-E/TFE-BU
Product Family KR-E/TFE for a broad temperature range
Product Group Screw Fixing Mounts
Short Description Screw Fixing Mount for a broad temperature range
Strap Thickness max. 2.4
Type KR8G5-ETFE

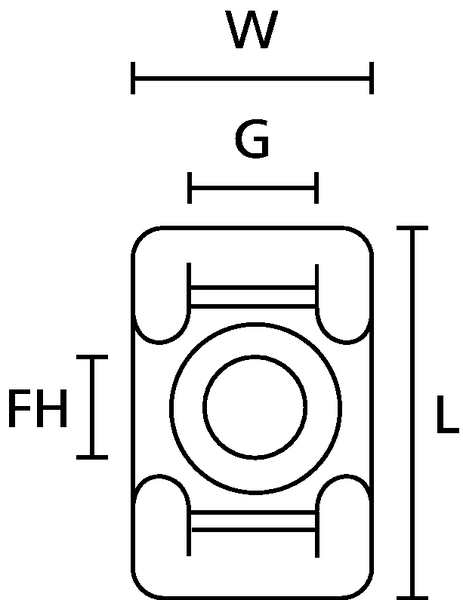

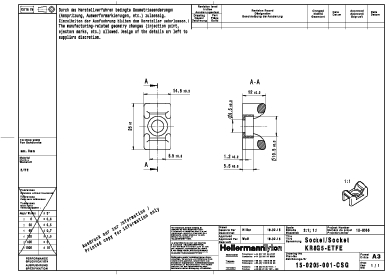

for Hole ∅ (FH) 6.5 mm

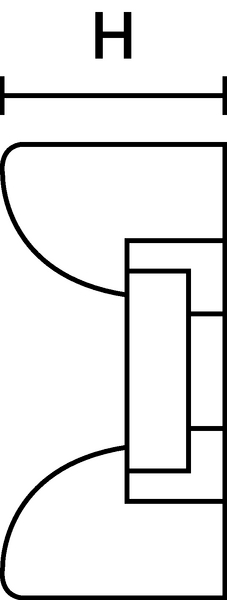

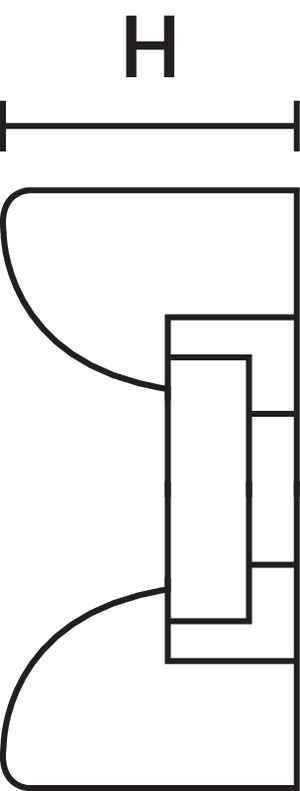

Height (H) 12.1mm
Height (H2) 5.5mm
Length (L) 24.8mm
Strap Width max. (G) 8.3mm
Width (W) 14.3mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Hazardous good No
Material Ethylene Tetrafluoroethylene (E/TFE)
Operating Temperature - °C -80 °C to +170 °C
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275
UL Recognized (US and Canada) Yes
UL-File Number E64962
EAN / GTIN 4944387953183
Packaging 1 - Height (m) 0.025m
Packaging 1 - Length (m) 0.23m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00086
Packaging 1 - Weight (kg) 0.186kg
Packaging 1 - Width (m) 0.15m
Packaging 3 - Height (m) 0.28m
Packaging 3 - Length (m) 0.45m
Packaging 3 - Qty 5000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0391
Packaging 3 - Weight (kg) 9.64kg
Packaging 3 - Width (m) 0.31m
Packaging 4 - Height (m) 1.265m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 100000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.214
Packaging 4 - Weight (kg) 213.8kg
Packaging 4 - Width (m) 0.8m
Weight 0.186kg
ETIM 6.0 EC000449
ETIM 7.0 Key EC000449
