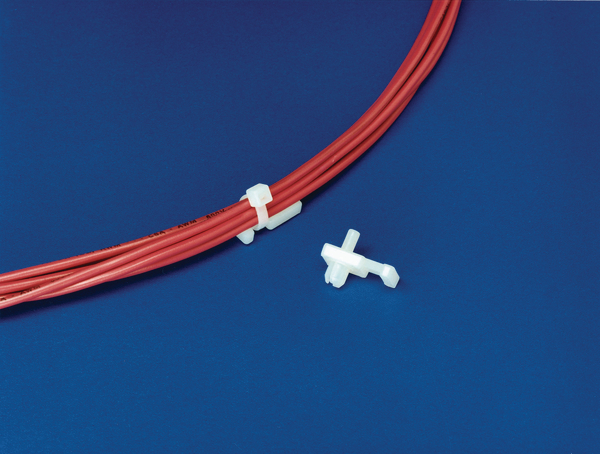

Cable tie mount for hole (round), Wmax=3.5mm, ⌀2.5 mm, natural, 500pcs.

Art.-No. 151-27401

| LKCR-PA66-NA

|

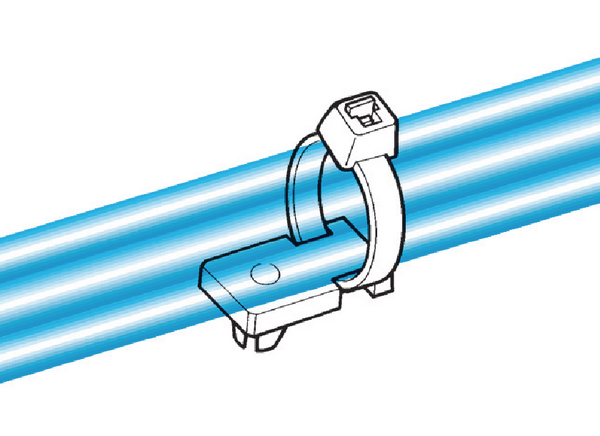

Curved design for additional support of the bundle

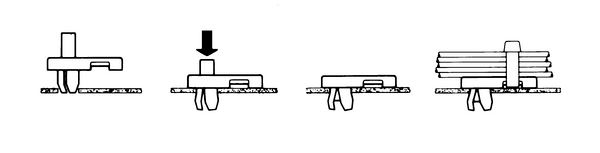

Simple to install with a screw or bolt
Excellent security, particularly in areas of high vibration

Add to watchlist

Request quote

Distributors near you

Downloads e-Learning

Base Data

Application	Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries from Agriculture to Truck manufacture, they offer a very secure fixing and can be used with a wide variety of cable ties up to 4.8mm wide.
Colour	Natural (NA)
Fixation Method	with Rivet (Mounts)
Local order number	LKCR.NN6P
Material	Polyamide 6.6 (PA66)
PART DESCRIPTION	LKCR-PA66-NA
Package Content	500pcs.
Package Content packed in	Bag
Product Family	LKCRF1 with Rivet
Short Description	Screw Fixing Mount 20x14 mm, with Rivet, natural
Type	LKCR
Weight/Unit	0.00064kg

Product Dimensions


Fixing Hole Centres (F)	14.6mm

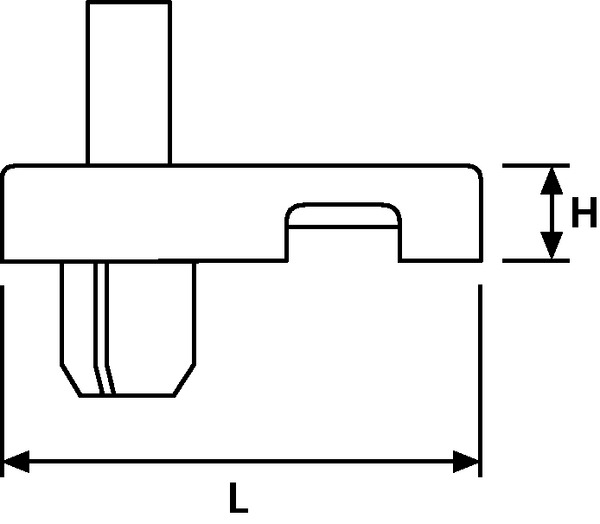

Height (H)	4.5mm
Height (H2)	2.2mm
Length (L)	20.0mm
Strap Width max. (G)	3.5mm

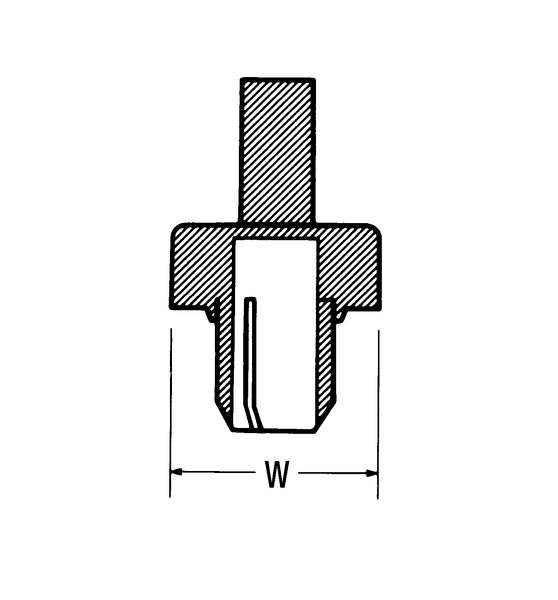

Width (W)	14.0mm
for Hole ⌀ (FH)	2.5 mm

Specifications

ELV compliant Dir. Art. 4 (2)	Yes
Flammability	UL 94 V2
Hazardous Goods	No
Operating Temperature	-40 °C to +85 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging


Country of Origin	GB
Customs Number	39269097
GTIN-13 / EAN	5022660310508
Packaging 1 - Height (m)	0.045m
Packaging 1 - Length (m)	0.2m
Packaging 1 - Qty	500
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.001305m³
Packaging 1 - Weight (kg)	0.320001kg
Packaging 1 - Width (m)	0.145m
Packaging 3 - Height (m)	0.192m
Packaging 3 - Length (m)	0.586m
Packaging 3 - Qty	20000
Packaging 3 - Type	Box
Packaging 3 - Volume (m³)	0.0439m³
Packaging 3 - Weight (kg)	13.53004kg
Packaging 3 - Width (m)	0.39m
Packaging 4 - Height (m)	1.144m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	400000
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.098m³
Packaging 4 - Weight (kg)	292.6kg
Packaging 4 - Width (m)	0.8m

More Information

ETIM 7.0 Key	EC000449
ETIM 8.0 Key	EC000449
ETIM 9.0 Key	EC000449
UNSPSC Key	39121717
