Screw Fixing Mounts : MB2

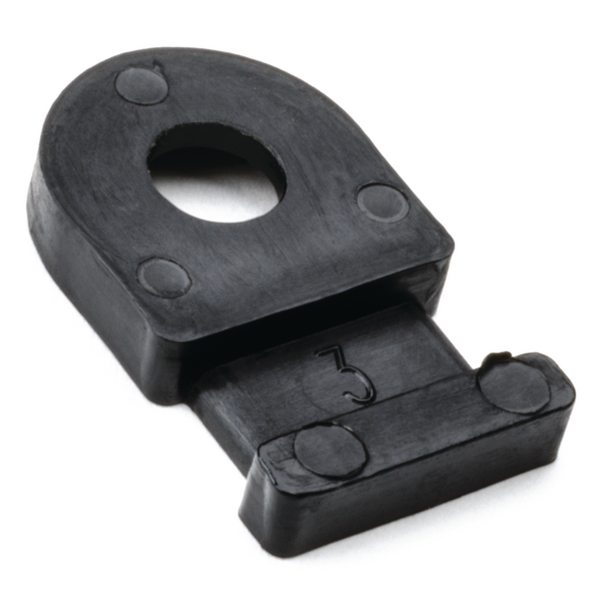

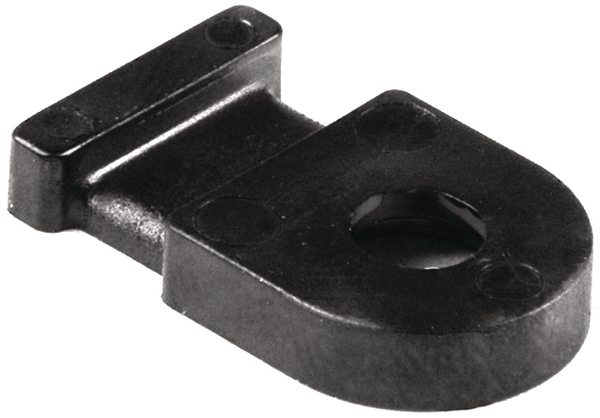

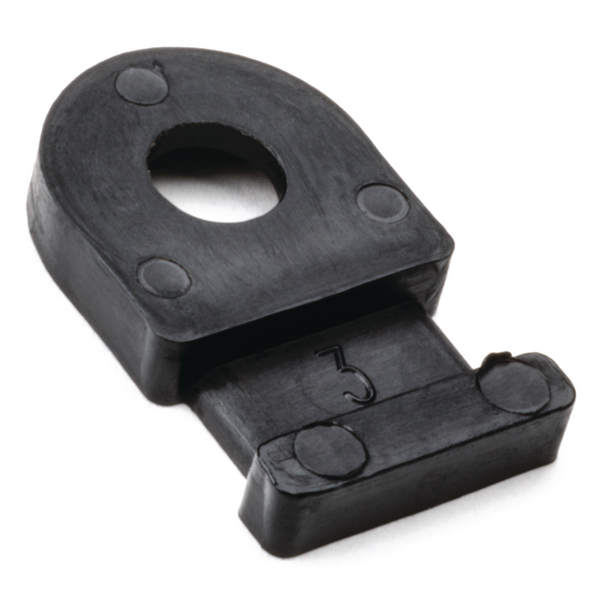

Screwable Fixing Mount with flat design 20.5x12.5 mm black, Article number: 151-28210
Features
- Simple to install with a screw or bolt
- Excellent security, particularly in areas of high vibration
- Single hole fixing with two-way entry for cable tie
Certifications & Approvals
Application
These cable tie mounts are very small in their overall size. They are designed for simple yet robust installation particulary in areas with high vibrations and/or limited space. They are a common fixing method for telecoms equipment, switchgear and control cabinets.
More products in this product group
Screw Fixing Mounts >| Colour | Black (BK) |
| Fixation Method | Screw Mounting and Rivet |
| Mounting Screw Type | M4 |
| Pack Cont. | 100pcs. |
| Package Quantity per | Bag |
| PART DESCRIPTION | MB2-PA66-BK |
| Product Family | MB with flat design |
| Product Group | Screw Fixing Mounts |
| Short Description | Screwable Fixing Mount with flat design 20.5x12.5 mm black |
| Type | MB2.NB3P |
|
|
|

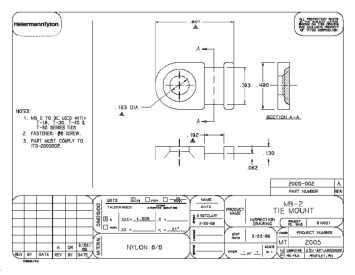

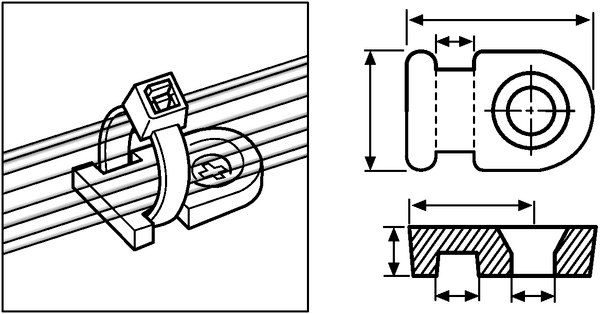

| for Hole ∅ (FH) | 5.0 mm |
| Height (H) | 3.3mm |
| Height (H2) | 1.7mm |
| Length (L) | 20.5mm |
| Strap Width max. (G) | 5.0mm |
| Width (W) | 12.5mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C |
| Specifications |
|
|
|
|
| EAN / GTIN | 5022660022869 |
| Packaging 1 - Height (m) | 0.019m |
| Packaging 1 - Length (m) | 0.17m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00048m³ |
| Packaging 1 - Weight (kg) | 0.060601kg |
| Packaging 1 - Width (m) | 0.15m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 20000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 12.9222kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.258m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 400000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.208m³ |
| Packaging 4 - Weight (kg) | 279.44kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.0606kg |
| ETIM 6.0 | EC000449 |
| ETIM 7.0 Key | EC000449 |
| UNSPSC Key | 39121717 |
