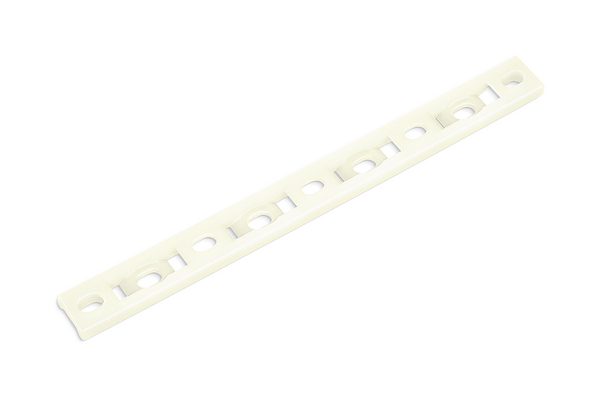

Mounting plates for screw fixing : MSMP6/6
Mounting Plates for M5 Screw Fixing, Article number: 151-25619
Features
- Allow multiple cables to run in parallel
- Simple to fix with two screws
- Cables are fixed by using a cable tie through any combination of the available slots
Certifications & Approvals
Application
Many applications require each cable run to be firmly held in place but to be held separately from adjacent cable runs (example - control cabinets, machinery and military systems). The MP series of mounts can achieve this.
More products in this product group
Mounting plates for screw fixing >| Colour | Natural (NA) |
| Fixation Method | Screw Mounting and Rivet |
| Mounting Screw Type | #6 (M3) Screw |
| No. of bundles | 6 |
| Pack Cont. | 100pcs. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | MSMP6/6-PA66-NA |
| Product Family | MSMP-Series |
| Product Group | Mounting plates for screw fixing |
| Short Description | Mounting Plates for M5 Screw Fixing |
| Type | MSMP6.NN3P |
|
|
|
| Fixing Hole Centres (F) | 38.0mm |
| Fixing Hole Centres (F) (imperial) | 1.48" |
| for Hole ∅ (FH) | 3.8 mm |
| Height (H) | 5.30mm |
| Hole Size (HS) | 7.7mm |
| Length (L) | 244.0mm |
| Strap Width max. (G) | 7.6mm |
| Strap Width max. (G) (imperial) | 0.3" |
| Width (W) | 15.8mm |
| CE Certification | Yes |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C |
| Prop65 Warning | No |
| Specifications |
|
| Specifications | ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | Yes |
| UL-File Number | E64139 |
|
|
|
| EAN / GTIN | 4031026122441 |
| Packaging 1 - Height (m) | 0.03m |
| Packaging 1 - Length (m) | 0.33m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00257m³ |
| Packaging 1 - Weight (kg) | 1.6kg |
| Packaging 1 - Width (m) | 0.26m |
| Packaging 3 - Height (m) | 0.215m |
| Packaging 3 - Length (m) | 0.512m |
| Packaging 3 - Qty | 1000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0347m³ |
| Packaging 3 - Weight (kg) | 16.61kg |
| Packaging 3 - Width (m) | 0.315m |
| Packaging 4 - Height (m) | 1.22m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 20000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.171m³ |
| Packaging 4 - Weight (kg) | 353.2kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 1.6kg |
| ETIM 6.0 | EC000449 |
| ETIM 7.0 Key | EC000449 |
| UNSPSC Key | 39121717 |
