26/02/2024

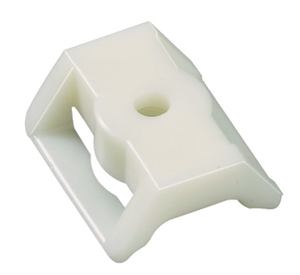

Cable tie mount for screw fixation, Ø3.1 mm, natural, 1000pcs.
Art.-No. 151-25219 | NY3256-PA66-NA Details

  • Curved design for additional cable support
  • Simple to install with a screw or bolt
  • Excellent security, particularly in areas of high vibration

Request your individual offer now

Application Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries from agriculture to truck manufacture, they offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 13 mm width.
Colour Natural (NA)
Fixation Method Screw Mounting and Rivet
Local order number NY3256.NN7P
Material Polyamide 6.6 (PA66)
Pack Cont. 1000pcs.
Package Content packed in pcs.
PART DESCRIPTION NY3256-PA66-NA
Product Family NY with curved design
Product Group Screw Fixing Mounts
Short Description Screw Fixing Mount with curved design 3.5x7.8 mm natural
for Hole ∅ (FH) 3.1 mm
Height (H) 7.8mm
Length (L) 13.5mm
Strap Width max. (G) 8.0mm
Weight/Unit 0.000502kg
Width (W) 12.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Nato number 5975-12-161-1864
Operating Temperature -40 °C to +85 °C
Specifications
Specifications EN 45545-2
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026122410
Packaging 1 - Height (m) 0.055m
Packaging 1 - Length (m) 0.42m
Packaging 1 - Qty 1000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.003
Packaging 1 - Weight (kg) 0.513kg
Packaging 1 - Width (m) 0.13m
Packaging 3 - Height (m) 0.171m
Packaging 3 - Length (m) 0.56m
Packaging 3 - Qty 10000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0172
Packaging 3 - Weight (kg) 5.35kg
Packaging 3 - Width (m) 0.18m
Packaging 4 - Height (m) 1.17m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 480000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.123
Packaging 4 - Weight (kg) 277.8kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 39121717
