Cable tie mount for adhesive use, black, 100pcs.
Art.-No. 151-02575 | PMB3-PA666V0-BK Details

  • PMB3 paste adhesive mount for fixings with paste / liquid adhesive
  • Mount geometry offers a good form closure with cured adhesive
  • Can even be installed onto uneven surfaces
  • Designed for use in confined spaces
  • Made of flame-retardant material PA666V0
  • Cost efficiency through reduced use of paste adhesive
Show more

Request your individual offer now

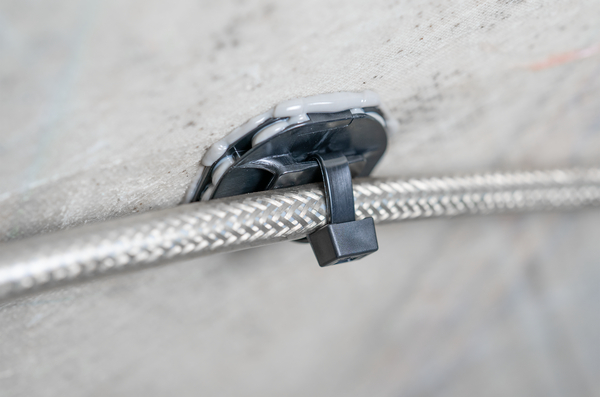

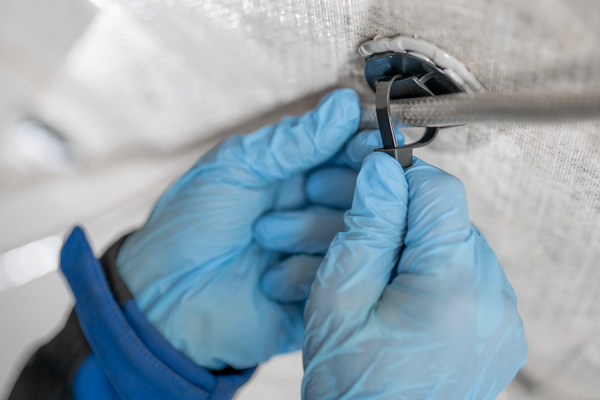

Application PMB3 paste mount offers a fixing solution wherever screw fixing is not allowed. Due to the design the mount can even be installed onto uneven surfaces. PMB3 paste mount is used in the railway industry as well as in the renewable energy industry. Further applications are in the electrical industry and the production of switching cabinets. The PMB3 paste adhesive mount is suitable for fixings with paste/liquid adhesive.
Colour Black (BK)
Fixation Method Pasting / Stick
Key product features liquid/paste adhesive, uneven surfaces
Local order number Cradle PMB3_PA666V0_BK
Material Polyamide 6.6/6, V0 (PA666V0)
PART DESCRIPTION PMB3-PA666V0-BK
Pack Cont. 100pcs.
Package Content packed in Box
Product Family PMB-Series
Product Group Paste adhesive mount
Short Description Paste Adhesive Mount, 22,6x22,6 mm, PA666V0, black
Type PMB3

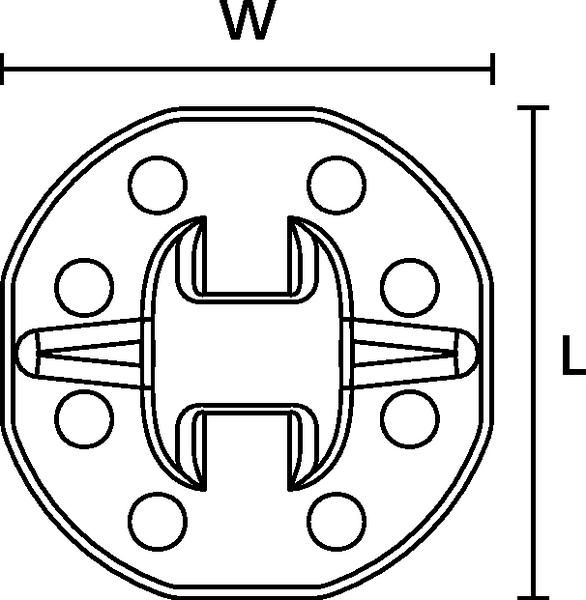

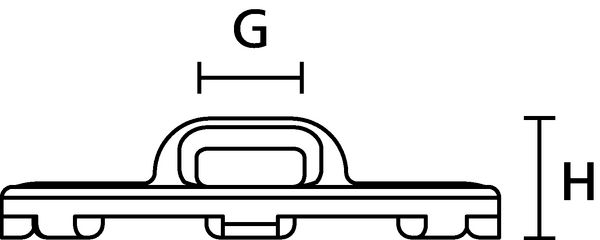

Height (H) 5.4mm
Length (L) 22.6mm
Strap Width max. (G) 4.7mm
Weight/Unit 0.0009kg
Width (W) 22.6mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
Specifications EN 45545-2
Country of Origin PL
Customs Number 39269097
GTIN-13 / EAN 4031026613635
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.12m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00127
Packaging 1 - Weight (kg) 0.09551kg
Packaging 1 - Width (m) 0.265m
Packaging 3 - Height (m) 0.133m
Packaging 3 - Length (m) 0.33m
Packaging 3 - Qty 2000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0105
Packaging 3 - Weight (kg) 2.1552kg
Packaging 3 - Width (m) 0.24m
Packaging 4 - Height (m) 1.208m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 160000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.16
Packaging 4 - Weight (kg) 194.2kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 39121717
