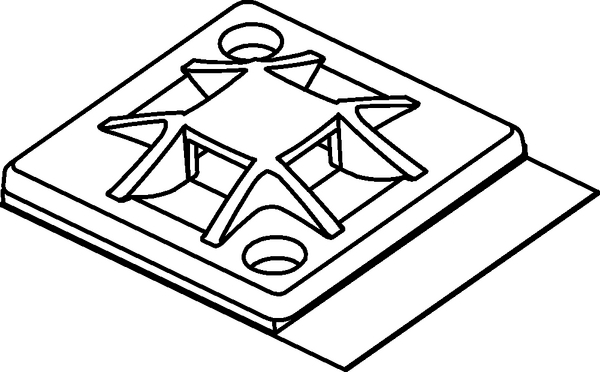

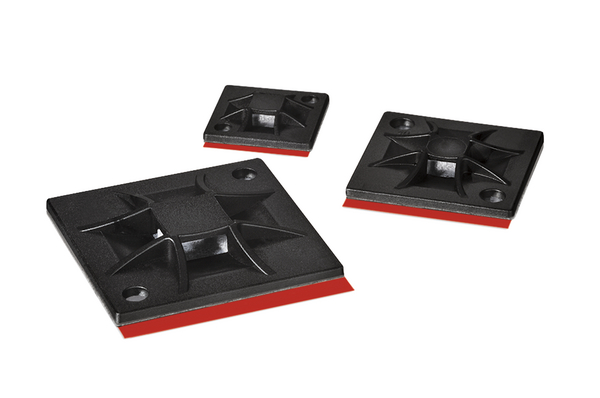

Cable Tie Mounts with high performance adhesive QM40APT-I

SolidTack-Series QM, Article number: 151-01595

Features

  • Q-mounts with homogeneous system of acrylic adhesive
  • Perfect for combination with Q-ties
  • Very good initial adhesion, increases with time
  • Adhesive with high cohesive strength combined with good weathering resistance
  • Innovative fixing solution for high and low energy surfaces
  • Q-Mount base locks Q-tie in vertical position, means the hands are free to apply cables

Certifications & Approvals

Application

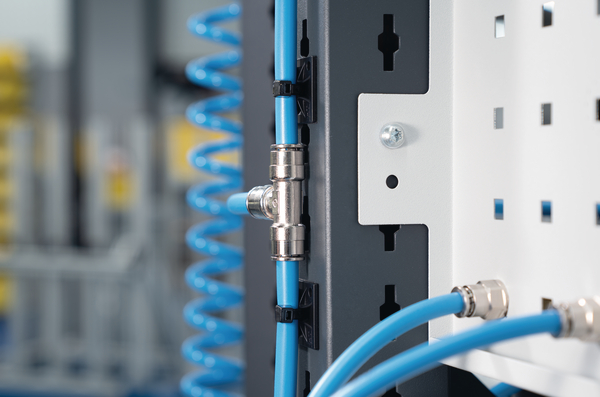

Q-mounts are ideally suited for holding our innovative Q-ties in place. They would perfectly fit to all applications where a reliable and durable fixation is required. With its SolidTack adhesive Q-mounts offer an innovative fixing solution especially for low energy surfaces or if drilling a hole is not possible. Suitable for a wide range of applications on varnished or plastic or metal surfaces in many areas like electrical cabinet, railway, aerospace, automotive and agriculture machinery.

SolidTack-Series QM is suitable for following markets and industries

Colour Natural (NA)
Description Short (BMEcat) (max. 150 characters) Adhesive Cable Tie Mount 40x40 mm natural
Fixation Method Screw Mounting and Adhesive
GLOBAL PART DESCRIPTION QM40APT-I-PA66-NA
Pack Cont. 50pcs.
Package Quantity per Bag
Product Family SolidTack-Series QM
Product Group Cable Tie Mounts with high performance adhesive
Type QM40 APT-I PA66 NA50
Fixing Hole Centres (F) 30.0mm
for Hole ∅ (FH) 4.1 mm
Height (H) 5.5mm
Length (L) 40.0mm
Strap Width max. (G) 8.4mm
Width (W) 40.mm
Adhesive Acrylate with base of acrylic foam
Adhesive Operating Temperature -35 °C to +120 °C
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2 (excluding adhesive)
Halogenfree Yes
Hazardous good No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
EAN / GTIN 4031026562759
Packaging 1 - Height (m) 0.1m
Packaging 1 - Length (m) 0.22m
Packaging 1 - Qty 50
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00528
Packaging 1 - Weight (kg) 0.2215kg
Packaging 1 - Width (m) 0.24m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 2000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 9.51kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.235m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 40000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.186
Packaging 4 - Weight (kg) 211.2kg
Packaging 4 - Width (m) 0.8m
Weight 0.2115kg
ETIM 5.0 EC000449
ETIM 6.0 EC000449
