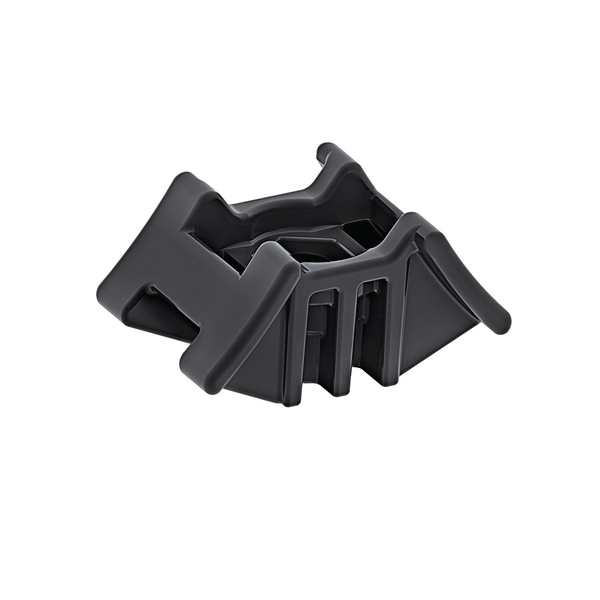

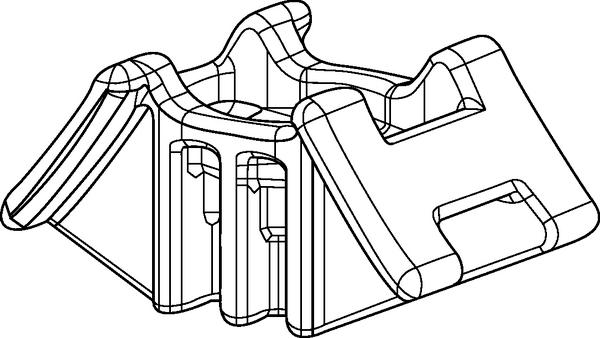

Two way saddle mount for heavy duty applications, for parallel separation : S2HM25

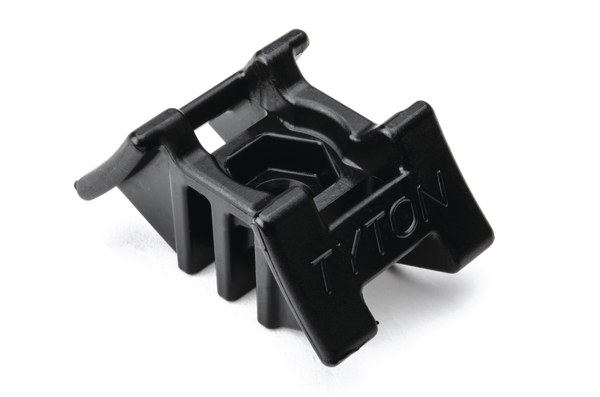

Two way saddle mount 45x30 mm, high impact, heat and UV stabilised, black, Article number: 151-29403
Features

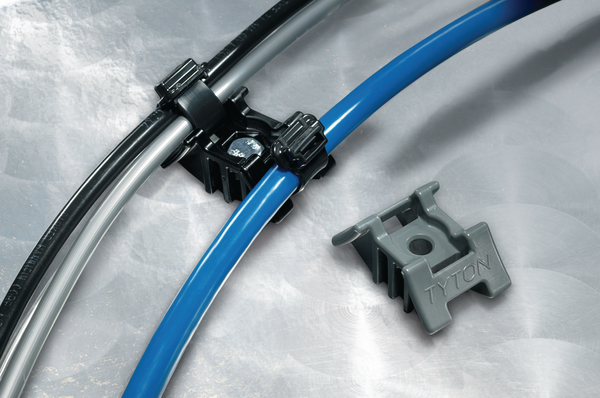

- For parallel routing of bundles
- Secure alignment to the bundle due to H-design
- Cable tie head can be moved after bundling
- For cable ties up to 12.7 mm wide
- Easy maintenance of bundle by simply changing the cable tie
Certifications & Approvals
Application
With its heavy duty fixing ability this product offers excellent performance for the truck, ship and construction vehicle industries.
More products in this product group
Two way saddle mount for heavy duty applications, for parallel separation >| Colour | Black (BK) |
| Fixation Method | Screw Mounting and Rivet |
| Mounting Screw Type | #1/4" (M6) Screw |
| Pack Cont. | 500pcs. |
| Package Quantity per | Bag |
| PART DESCRIPTION | S2HM25-PA66HIRHSUV-BK |
| Product Group | Two way saddle mount for heavy duty applications, for parallel separation |
| Short Description | Two way saddle mount 45x30 mm, high impact, heat and UV stabilised, black |
| Type | S2HM25-MC3-BK-D1 |
|
|
|
| Bundle ∅ max. | 89.0mm |
| for Hole ∅ (FH) | 6.0 mm, 6.35 mm (hexagonal) |

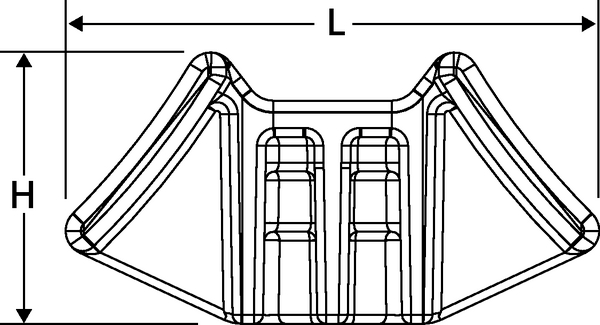

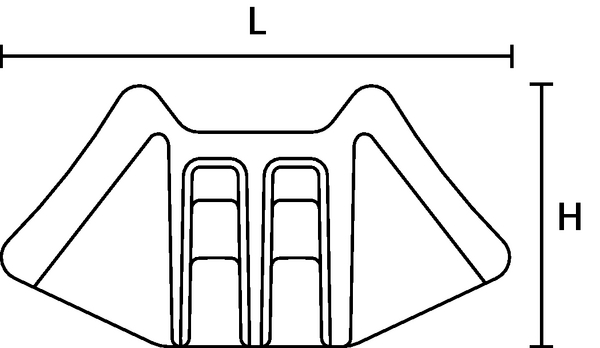

| Height (H) | 23.0mm |
| Height (H2) | 15.0mm |
| Length (L) | 45.0mm |
| Strap Width max. (G) | 12.7mm |
| Strap Width max. (G) (imperial) | 0.5" |
| Stud ∅ | 6.35 mm |
| Stud ∅ (imperial) | 0.25" |
| Width (W) | 30.0mm |
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Operating Temperature - °C | -40 °C to +105 °C, (+105 °C for 500 h) |
| Prop65 Warning | No |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
|
|
|
| EAN / GTIN | 4031026312477 |
| Packaging 1 - Height (m) | 0.048m |
| Packaging 1 - Length (m) | 0.22m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0018m³ |
| Packaging 1 - Weight (kg) | 4.940001kg |
| Packaging 1 - Width (m) | 0.17m |
| Packaging 3 - Height (m) | 0.145m |
| Packaging 3 - Length (m) | 0.512m |
| Packaging 3 - Qty | 500 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0234m³ |
| Packaging 3 - Weight (kg) | 5.450001kg |
| Packaging 3 - Width (m) | 0.315m |
| Packaging 4 - Height (m) | 1.159m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 14000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.113m³ |
| Packaging 4 - Weight (kg) | 173.6kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 4.94kg |
| ETIM 6.0 | EC000449 |
| ETIM 7.0 Key | EC000449 |
| UNSPSC Key | 39121717 |
