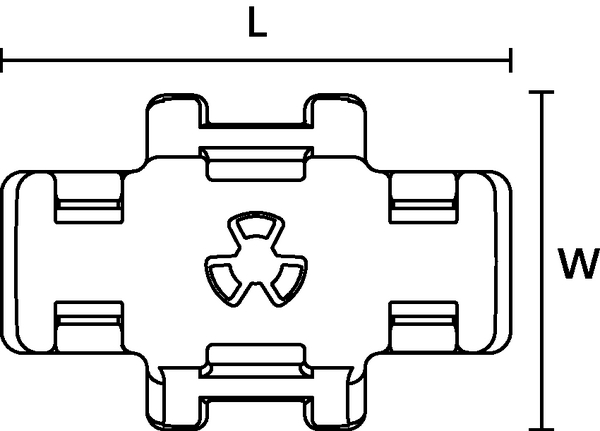

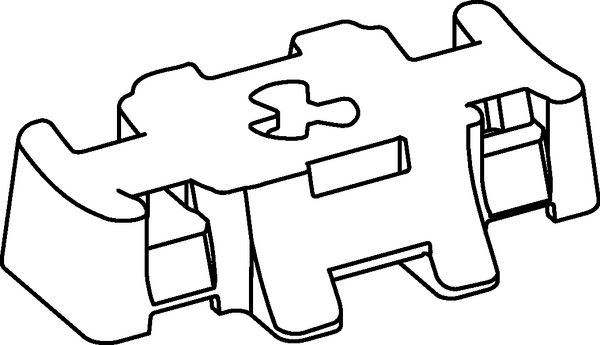

Cable tie mount for screw fixation, Wmax=9.0mm, ⌀8.0 mm, M8 Screw, black, 500pcs.
Art.-No. 151-02092
| S3SBM8-PA66HIRHS-BK
|
Copied
- For parallel routing of bundles
- Secure alignment to the bundle due to H-design
- Easy maintenance of bundle by simply changing cable tie
- Cable tie head can be moved after bundling
Request quote
More products in this product group:
This product is part of:

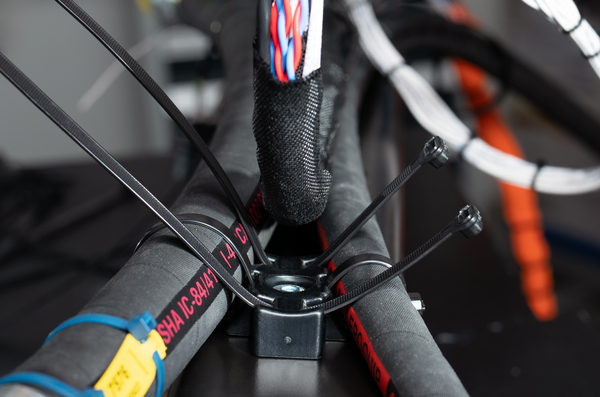

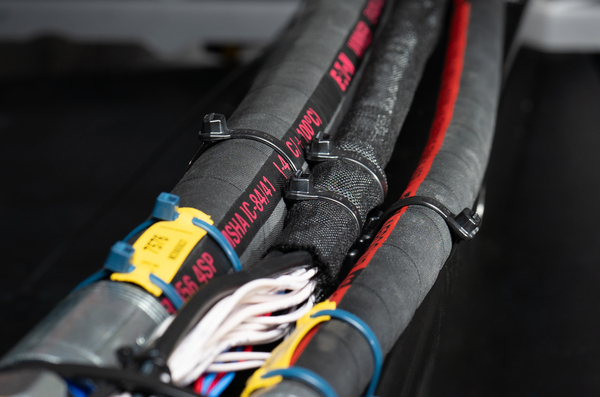

| Application | These 3-way routing saddle mounts are designed to secure up to three bundles for multiple routing and reduce chaving or wear to those bundles. Applicable for various applications within the OEM, mass transit, defence or heavy truck and automotive markets. |
| Colour | Black (BK) |
| Key product features | vibration absorbing, for multiple routing |
| Local order number | S3SBM8_PA6GF30_BK |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Mounting Screw Type | M8 Screw |
| PART DESCRIPTION | S3SBM8-PA66HIRHS-BK |
| Package Content | 500pcs. |
| Package Content packed in | Bag |
| Product Family | S3SBM8 |
| Product Group | Heavy duty mounts for 3-way routing |
| Type | S3SBM8 |
| Weight/Unit | 0.0172kg |
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026599991 |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 500 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 9.566kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.204m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 10000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.156m³ |
| Packaging 4 - Weight (kg) | 213.32kg |
| Packaging 4 - Width (m) | 0.8m |
