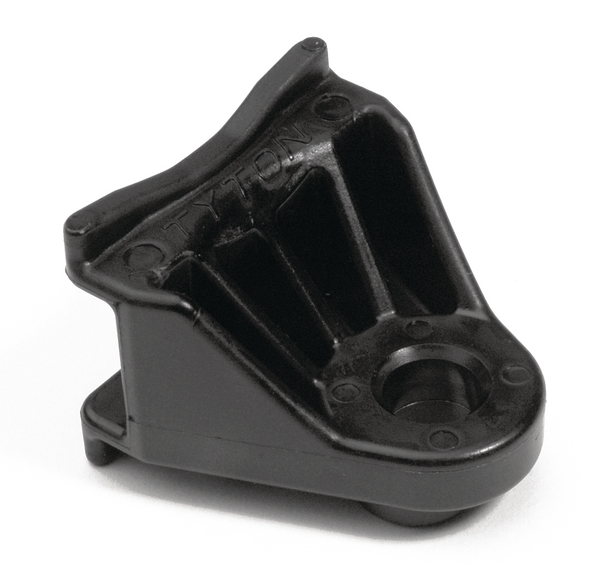

Harness clip for heavy duty applications, for screws or threaded bolts for edges : SAOM82
Harness clip 34x26 mm, high impact, heat and UV stabilised, black, Article number: 151-29701
Features
- Guides bundles securely above sharp edges
- For threaded bolts or screws
- Can be used in combination with heavy duty cable ties
- For cable ties up to 12.7 mm width
Certifications & Approvals
Application
This axial oval mount stands off bundles from frame rails and cross members to prevent them from rubbing and chafing. They can be perfectly used in combination with heavy duty cable ties up to 12.7 mm width – ideal to securely fix cables and wires in the railway and shipbuilding industry as well as in truck and agricultural vehicle construction.
More products in this product group
Harness clip for heavy duty applications, for screws or threaded bolts for edges >| Colour | Black (BK) |
| Fixation Method | Screw Mounting and Rivet |
| Mounting Screw Type | 5/16" (M8) Screw |
| Pack Cont. | 500pcs. |
| Package Quantity per | Bag |
| PART DESCRIPTION | SAOM82-PA66HIRHSUV-BK |
| Product Family | SAOM82 with Turnstop |
| Product Group | Harness clip for heavy duty applications, for screws or threaded bolts for edges |
| Short Description | Harness clip 34x26 mm, high impact, heat and UV stabilised, black |
| Type | SAOM82-MC3-BK-D |
|
|
|

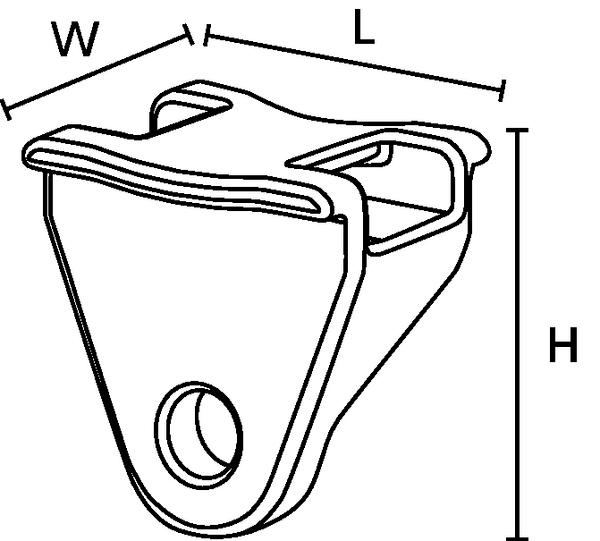

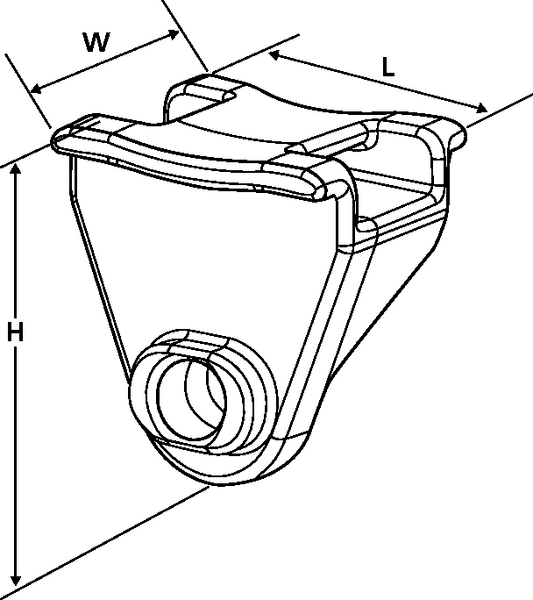

| for Hole ∅ (FH) | 8.0 mm |
| Height (H) | 35.0mm |
| Length (L) | 34.0mm |
| Strap Width max. (G) | 12.7mm |
| Strap Width max. (G) (imperial) | 0.5" |
| Stud ∅ | 8.0 mm |
| Stud ∅ (imperial) | 0.3125" |
| Width (W) | 26.0mm |
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Operating Temperature - °C | -40 °C to +105 °C, (+105 °C for 500 h) |
| Prop65 Warning | No |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
|
|
|
| EAN / GTIN | 4031026312507 |
| Packaging 1 - Height (m) | 0.048m |
| Packaging 1 - Length (m) | 0.22m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0018m³ |
| Packaging 1 - Weight (kg) | 5.400001kg |
| Packaging 1 - Width (m) | 0.17m |
| Packaging 3 - Height (m) | 0.158m |
| Packaging 3 - Length (m) | 0.435m |
| Packaging 3 - Qty | 500 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0183m³ |
| Packaging 3 - Weight (kg) | 5.700001kg |
| Packaging 3 - Width (m) | 0.266m |
| Packaging 4 - Height (m) | 1.09m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 21000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.046m³ |
| Packaging 4 - Weight (kg) | 260.4kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 5.4kg |
| ETIM 6.0 | EC000449 |
| ETIM 7.0 Key | EC000449 |
| UNSPSC Key | 39121717 |
