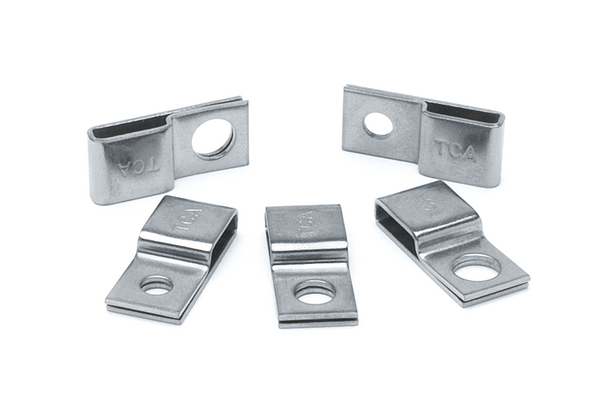

Stainless steel cable tie mount for screw fixation, untreated, Wmax=10.0mm, metal, 100pcs.
Art.-No. 151-00837 | SSPC4-SS316L-ML Details

  • 2-way fixing for metal cable ties
  • High performance stainless steel 316 material
  • Heavy duty design
  • Robust and durable solution
  • Resistant to a range of chemicals in challenging environments
  • Quick and easy to install
  • Safe and secure solution for cables, tubing, conduits and pipes
Show more

Request your individual offer now

Application Suitable for the secure fixing of cables, tubing, conduits and pipes within the most arduous of environments. Providing a complete fastening and fixing solution when used in conjunction with stainless steel ties up to 10.0 mm width. SSPC metal cable tie mounts are ideal for use within shipbuilding, oil and gas (offshore), industrial machinery and vehicles, food and beverage, power, renewable energy or process industries.
Application Method Screw fixing
Colour Metal (ML)
Fixation Method Screw Mounting and Rivet
Key product features vibration absorbing
Local order number SSPC4.M3P
Material Stainless Steel (SS316L)
Mounting Screw Type M4 Screw
PART DESCRIPTION SSPC4-SS316L-ML
Pack Cont. 100pcs.
Package Content packed in Bag
Product Group Stainless Steel P-mount (4mm hole size)
Short Description Stainless Steel P-Mount 4mm hole size
Type SSPC4

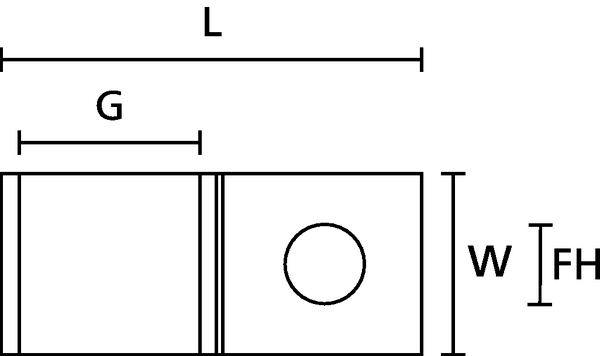

Height (H) 4.5mm
Length (L) 23.0mm
Strap Width max. (G) 10.0mm
Strap Width max. (G) (imperial) 0.39"
Weight/Unit 0.00339kg
Width (W) 10.2mm
for Hole ∅ (FH) 4.2 mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability non-burning
Halogen-free Yes
Hazardous Goods No
Limited Fire Hazard Yes
Operating Temperature -80 °C to +538 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised No
Country of Origin GB
Customs Number 73269098
GTIN-13 / EAN 5022660339707
Packaging 1 - Height (m) 0.01m
Packaging 1 - Length (m) 0.15m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00014
Packaging 1 - Weight (kg) 0.339001kg
Packaging 1 - Width (m) 0.095m
Packaging 3 - Height (m) 0.15m
Packaging 3 - Length (m) 0.2m
Packaging 3 - Qty 2000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0045
Packaging 3 - Weight (kg) 7.28002kg
Packaging 3 - Width (m) 0.15m
Packaging 4 - Height (m) 0.444m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 128000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.426
Packaging 4 - Weight (kg) 486.92kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 30264500
