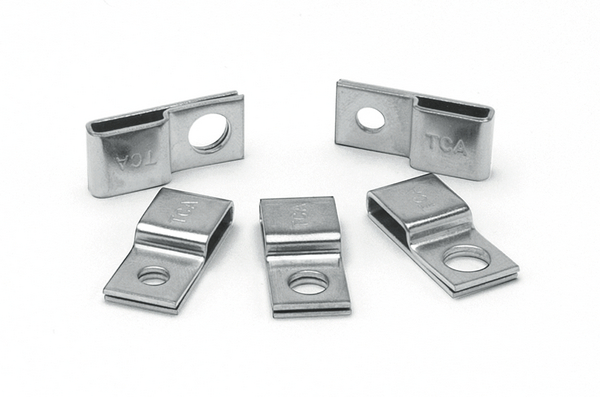

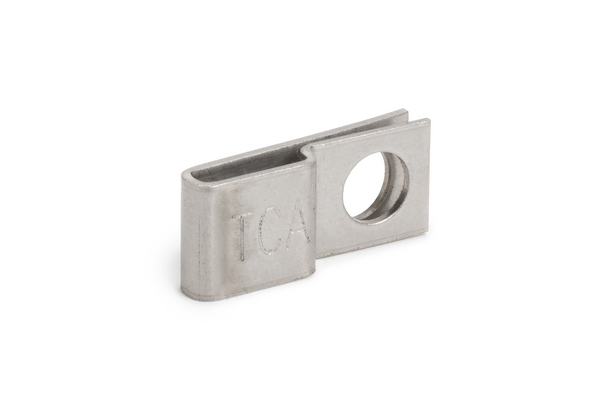

Stainless steel cable tie mount for screw fixation, untreated, Wmax=10.0mm, metal, 100pcs.
Art.-No. 151-00839 | SSPC6-SS316-ML Details

  • 2-way fixing for stainless steel cable ties
  • High performance stainless steel 316 material
  • 10mm slot width
  • Single 4mm, 5mm or 6mm fixing hole
  • Heavy duty design
  • Robust and durable solution
  • Resistant to a range of materials and conditions
  • Quick and easy to install
  • Safe and secure solution for cables, tubing, conduits and pipes
  • Ideal for a range of industries and applications
Show more

Request your individual offer now

Application Suitable for the secure fixing of cables, tubing, conduits and pipes within the most arduous of environments. Providing a complete fastening and fixing solution when used in conjunction with stainless steel ties up to 10.0 mm width. SSPC metal cable tie mounts are ideal for use within shipbuilding, oil and gas (offshore), industrial machinery and vehicles, food and beverage, power, renewable energy or process industries.
Application Method Screw fixing
Colour Metal (ML)
Fixation Method Screw Mounting and Rivet
Key product features vibration absorbing
Local order number SSPC6.M3P
Material Stainless Steel (SS316)
Mounting Screw Type M6 Screw
Pack Cont. 100pcs.
Package Content packed in Bag
PART DESCRIPTION SSPC6-SS316-ML
Product Group Stainless Steel P-mount (6mm hole size)
Short Description Stainless Steel Mount 23x10,2mm with 6.0mm Hole Size
for Hole ∅ (FH) 6.3 mm

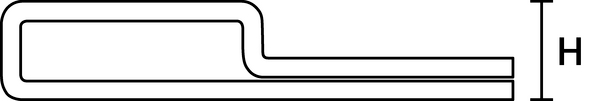

Height (H) 4.5mm
Length (L) 23.0mm
Strap Width max. (G) 10.0mm
Strap Width max. (G) (imperial) 0.39"
Weight/Unit 0.003159kg
Width (W) 10.2mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability non-burning
Halogen-free Yes
Hazardous Goods No
Limited Fire Hazard Yes
Operating Temperature -80 °C to +538 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised (Yes/No) No
Country of Origin GB
Customs Number 73269098
GTIN-13 / EAN 5022660339721
Packaging 1 - Height (m) 0.02m
Packaging 1 - Length (m) 0.13m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00039
Packaging 1 - Weight (kg) 0.3199kg
Packaging 1 - Width (m) 0.15m
EFO Norway block number 110102
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 39121702
