Cable Ties for higher chemical resistance for temperatures up to +170 °C in Ethylentetrafluorineethylene : T120R

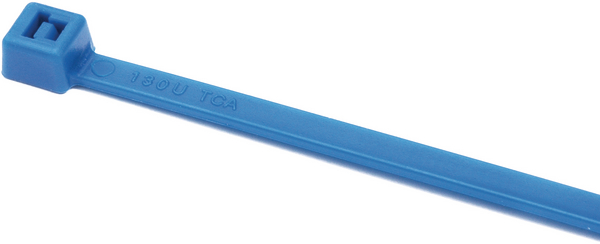

Cable Tie 380x7.6 E/TFE blue, Article number: 111-01125
Features
- Available in a wide range of materials and sizes
- High tensile strength with very low insertion force
- Only high quality plastic is used meeting recycling targets
- Inside serrated cable ties for a strong hold onto bundles
- Ergonomic bent tail offers quick and simple installation
- Easy application either manually or with an application tool
Certifications & Approvals
Application
These cable ties are used for routing, bundling and securing of cables, pipes and hoses.
T-Series in E/TFE is suitable for following markets and industries
More products in this product group
Cable Ties for higher chemical resistance for temperatures up to +170 °C in Ethylentetrafluorineethylene >| Application Tool | MK6, MK9P, MK21, EVO9, EVO9HT |
| Colour | Blue (BU) |
| Identification Plate Position | none |
| Pack Cont. | 50pcs. |
| PART DESCRIPTION | T120R-E/TFE-BU |
| Product Family | T-Series in E/TFE |
| Product Group | Cable Ties for higher chemical resistance for temperatures up to +170 °C in Ethylentetrafluorineethylene |
| Releasable Closure (Yes/No) | No |
| Short Description | Cable Tie 380x7.6 E/TFE blue |
| Tie Closure | plastic pawl |
| Type | T120R-TZ |
| Variant | Inside Serrated |
|
|
|
| Bundle ∅ max. | 105.0mm |
| Bundle ∅ min. | 15.0mm |
| Length (L) | 387.0mm |
| Min.Tensile Strength | 535.0N |
| Thickness (T) | 1.9mm |
| Width (W) | 7.4mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V0 |
| Hazardous good | No |
| Material | Ethylene Tetrafluoroethylene (E/TFE) |
| Operating Temperature - °C | -80 °C to +170 °C |
| Specifications |
|
| Specifications | ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B |
| UL Listed (US and Canada) | No |
| UL OCD link | Link |
| UL Recognized (US and Canada) | Yes |
| UL-File Number | E193818 |
|
|
|
| EAN / GTIN | 4031026316833 |
| Packaging 1 - Height (m) | 0.045m |
| Packaging 1 - Length (m) | 0.431m |
| Packaging 1 - Qty | 50 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00264m³ |
| Packaging 1 - Weight (kg) | 0.5kg |
| Packaging 1 - Width (m) | 0.136m |
| Packaging 3 - Height (m) | 0.186m |
| Packaging 3 - Length (m) | 0.315m |
| Packaging 3 - Qty | 1000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0267m³ |
| Packaging 3 - Weight (kg) | 10.26kg |
| Packaging 3 - Width (m) | 0.456m |
| Packaging 4 - Height (m) | 1.261m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 25000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.211m³ |
| Packaging 4 - Weight (kg) | 277.5kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.5kg |
| ETIM 6.0 | EC000046 |
| ETIM 7.0 Key | EC000046 |
| UNSPSC Key | 39121703 |
