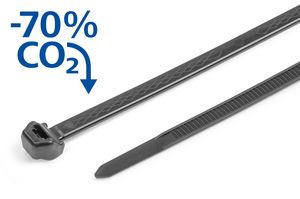

Cable tie outside serrated small diameter, 200.0x4.9mm, ∅1.0-50.0mm, black, 1000pcs.
Art.-No. 118-00270 | S50ROS-PP-BK Details

  • The S50ROS features a significantly lower CO₂ footprint compared to cable ties made of standard material, in line with sustainability goals in various industries
  • The outside serration design ensures gentle handling of sensitive cables and bundles, reducing the risk of damage during installation and maintenance
  • With an anti-slip feature on the inside, the S50ROS prevents undesired lateral movement of cables and bundles, maintaining tidy and organized cable management within vehicles
  • Resistant to various chemicals including salt and acid, the S50ROS is ideal for automotive applications where exposure to harsh environments is common, ensuring long-lasting performance and reliability
Package size

Request your individual offer now

e-Learning
Application S-Series cable ties made from Polypropylene (PP) are non hydroscopic, offer a higher chemical resistance and reduced CO2 footprint compared to a standard cable tie material. These cable ties are used to bundle and secure cables, pipes and/or hoses.
Application Tool EVO7SP
Colour Black (BK)
Fixation Method Cable Tie
Identification Plate Position none
Key product features small diameter
Local order number S50ROS-PP-BK
Material Polypropylene (PP)
PART DESCRIPTION S50ROS-PP-BK
Pack Cont. 1000pcs.
Product Family S-Series
Product Group Cable ties for thin-walled bundles
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type S50ROS
Variant Outside Serrated
Bundle Diameter max (metric) 50.0mm
Bundle ∅ 1.0-50.0mm
Bundle ∅ min. 1.0mm
Height (H) 7.5mm
Length (L) 200.0mm
Min.Tensile Strength 185N
Thickness (T) 1.45mm
Weight/Unit 0.001265kg
Width (W) 4.9mm
ELV compliant Dir. Art. 4 (2) YES
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +110 °C, (3000 h)
ROHS compliant Yes
Specifications
Country of Origin PL
Customs Number 39269097
GTIN-13 / EAN 4031026706924
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.395m
Packaging 1 - Qty 1000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.02666
Packaging 1 - Weight (kg) 1.294135kg
Packaging 1 - Width (m) 0.45m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 8000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 11.17308kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 96000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 155.064kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
