Releasable cable tie, 150x4.7mm, ⌀5.0-36mm, 135N, yellow, 100pcs.
Art.-No. 115-00160
| ORF150-S-PA66-YE
|
Copied

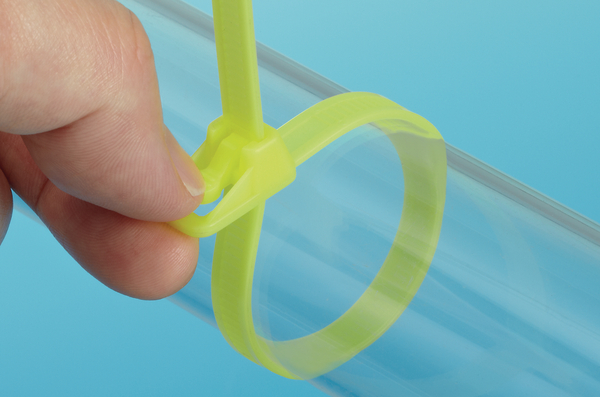

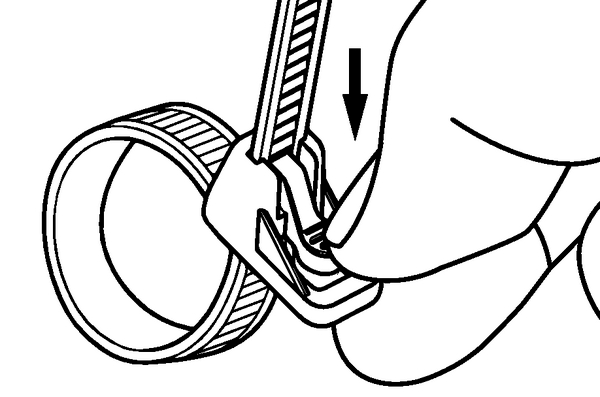

- Designed for easy release with one-hand
- Suitable for temporary colour coding
- Gentle on the bundled material thanks to outside serration
Request quote
More products in this product group:
| Application | The ORF-Series with lever lock has been designed for easy removal and reuse without a knife or side cutter, but conveniently with a lever. The outside serration minimises the risk of damage to cables and other elements. |
| Colour | Yellow (YE) |
| Fixation Method | Releasable Cable Tie |
| Identification Plate Position | none |
| Key product features | releasable |
| Local order number | ORF150-S-YLW |
| Material | Polyamide 6.6 (PA66) |
| Min.Tensile Strength | 135N |
| PART DESCRIPTION | ORF150-S-PA66-YE |
| Package Content | 100pcs. |
| Package Content packed in | Bag |
| Product Family | ORF-Series up to 135 N loop tensile strength |
| Product Group | Cable tie outside serrated with lever lock |
| Releasable Closure (Yes/No) | Yes |
| Short Description |
Designed for easy release with one-hand Suitable for temporary colour coding Gentle on the bundled material thanks to outside serration |
| Type | ORF150-S |
| Typical Application | The ORF-Series with lever lock has been designed for easy removal without a knife or side cutter, using the integrated lever. The outside serration minimises the risk of damage to cables and other elements. |
| Weight/Unit | 0.00101kg |
|
|
|
| Country of Origin | JP |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4944387118384 |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Weight (kg) | 0.101001kg |
| Packaging 3 - Height (m) | 0.21m |
| Packaging 3 - Length (m) | 0.455m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0296m³ |
| Packaging 3 - Weight (kg) | 5.77205kg |
| Packaging 3 - Width (m) | 0.31m |
| Packaging 4 - Height (m) | 1.194m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 100000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.146m³ |
| Packaging 4 - Weight (kg) | 137.44kg |
| Packaging 4 - Width (m) | 0.8m |
