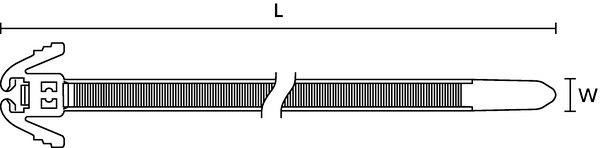

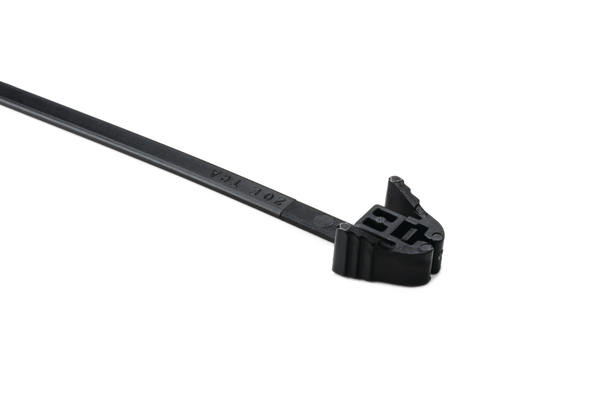

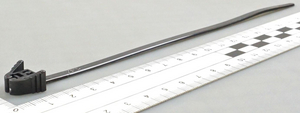

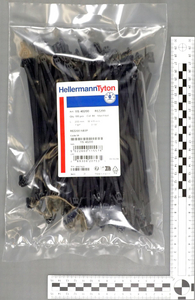

Releasable cable tie, 200x4.7mm, ⌀16.0-50.0mm, 135N, black, 100pcs.
Art.-No. 115-40200
| REZ200-PA66-BK
|
Copied

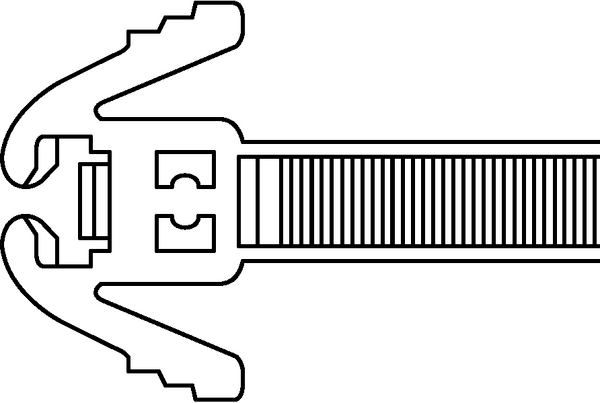

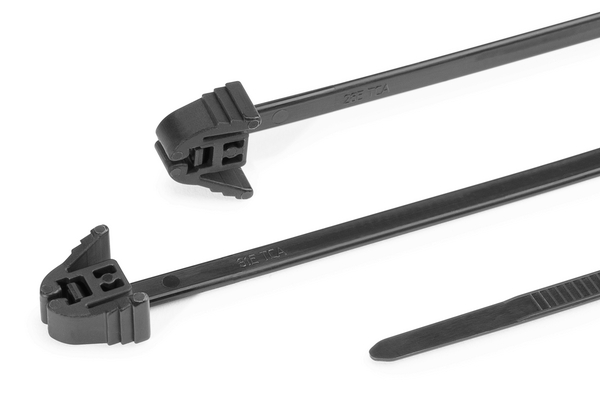

- Patented head design for simple and rapid use

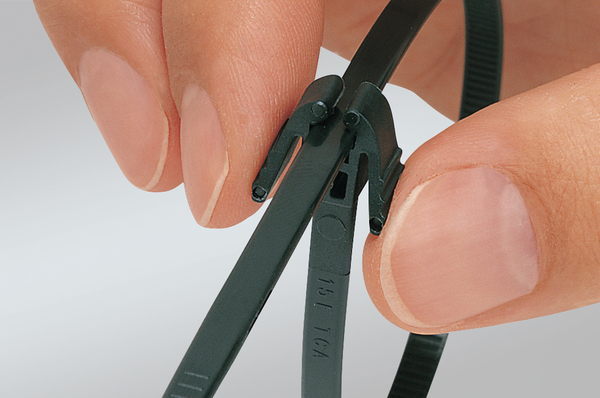

- Quick-release mechanism for one-hand operation, even under tension
Request quote
More products in this product group:
This product is part of:
| Colour | Black (BK) |
| Fixation Method | Releasable Cable Tie |
| Identification Plate Position | none |
| Key product features | releasable |
| Local order number | REZ200.NB3P |
| Material | Polyamide 6.6 (PA66) |
| Min.Tensile Strength | 135N |
| PART DESCRIPTION | REZ200-PA66-BK |
| Package Content | 100pcs. |
| Package Content packed in | Pack |
| Product Family | REZ-Series |
| Product Group | Cable ties inside serrated with one-hand release mechanism |
| Releasable Closure (Yes/No) | Yes |
| Short Description | Releasable Cable Tie 200x4.7 mm, black |
| Tie Closure | plastic pawl |
| Type | REZ200 |

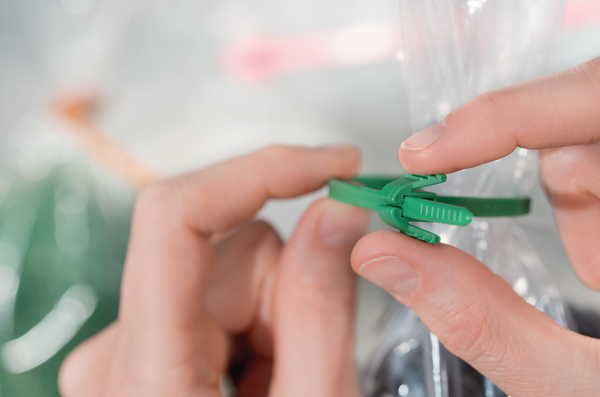

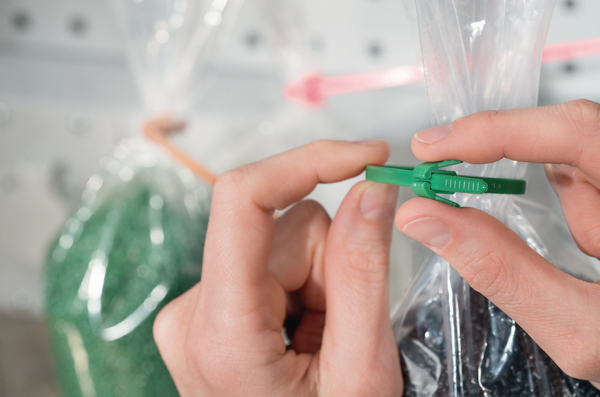

| Typical Application | Thanks to its innovative head design, the REZ-Series cable ties can be released using only two fingers. By applying pressure to the integrated wings, the tie can be quickly and securely disengaged without damage. The REZ cable tie provides a reliable fastening solution suitable for a wide range of applications, especially in temporary setups and areas with limited accessibility. |
| UV-Stabilised | No |
| Variant | Inside Serrated |
| Weight/Unit | 0.00176kg |
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | Yes |
| EPD File Link | Link |
| Flammability | UL 94 V2 |
| Hazardous Goods | No |
| Nato number | 5975-12-384-8208 |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Reusable (Yes/No) | Yes |
| Specifications |
|
|
|
|
| Country of Origin | GB |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 5022660115578 |
| Packaging 1 - Height (m) | 0.035m |
| Packaging 1 - Length (m) | 0.33m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00236775m³ |
| Packaging 1 - Weight (kg) | 0.176001kg |
| Packaging 1 - Width (m) | 0.205m |
| Packaging 3 - Height (m) | 0.364m |
| Packaging 3 - Length (m) | 0.563m |
| Packaging 3 - Qty | 6000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0777m³ |
| Packaging 3 - Weight (kg) | 11.52106kg |
| Packaging 3 - Width (m) | 0.379m |
| Packaging 4 - Height (m) | 1.236m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 72000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.187m³ |
| Packaging 4 - Weight (kg) | 160.252kg |
| Packaging 4 - Width (m) | 0.8m |
