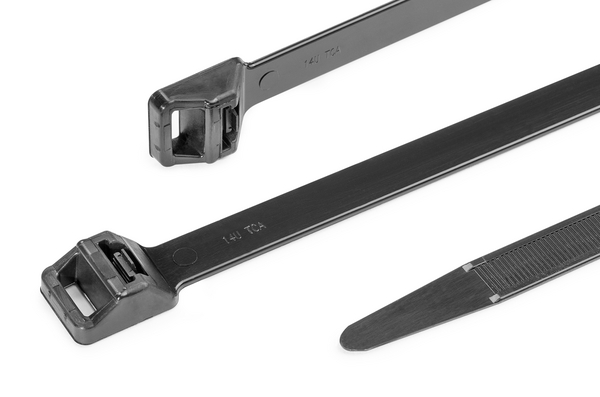

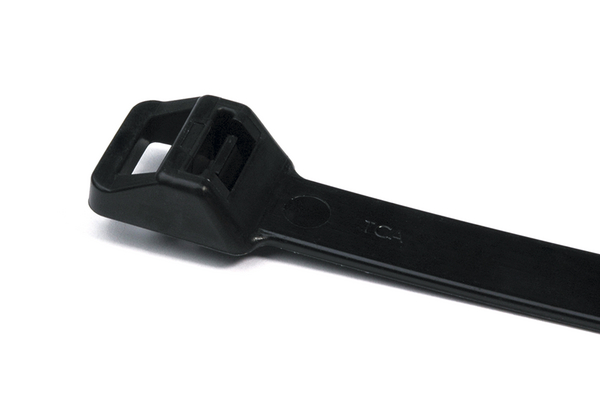

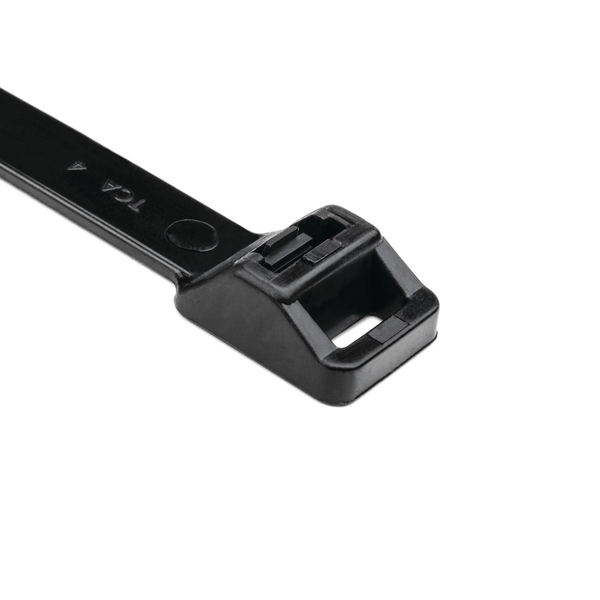

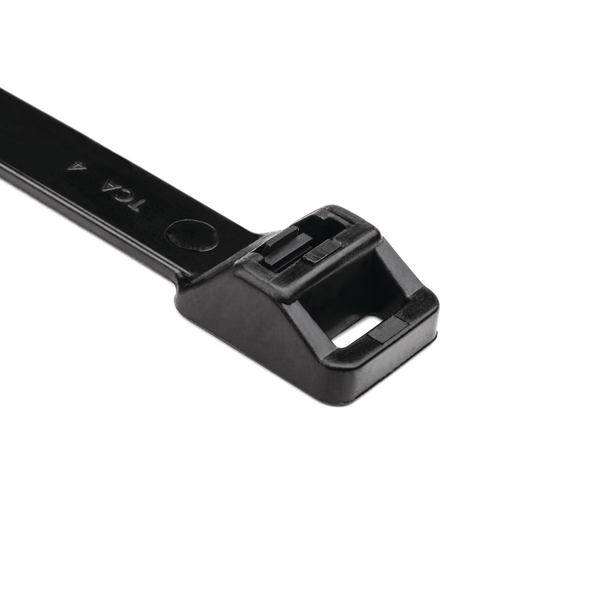

Releasable cable tie, 565.3x12.5mm, Ø12.0-150.0mm, 1115N, black, 25pcs.
Art.-No. 131-75610 | RT250M-PA66-BK Details

  • Releasable and reusable cable tie
  • Suitable for larger and/or heavier bundles

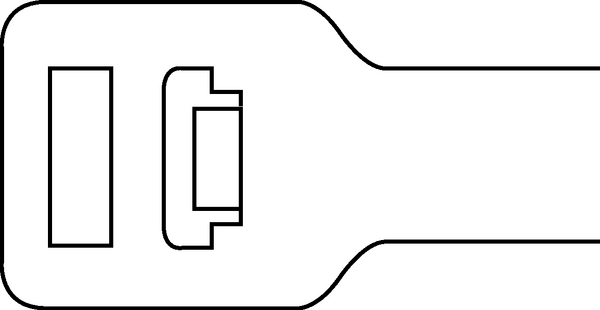

  • Eyelet allows excess tail to be tucked neatly away
  • Available in black and natural colour

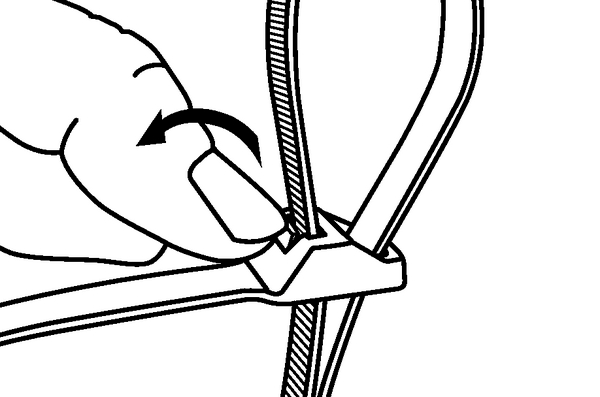

  • Extended trigger for simple and quick release of ties
  • Protected trigger to avoid accidental release
  • RT250 cable ties are inside serrated
Show more

Request your individual offer now

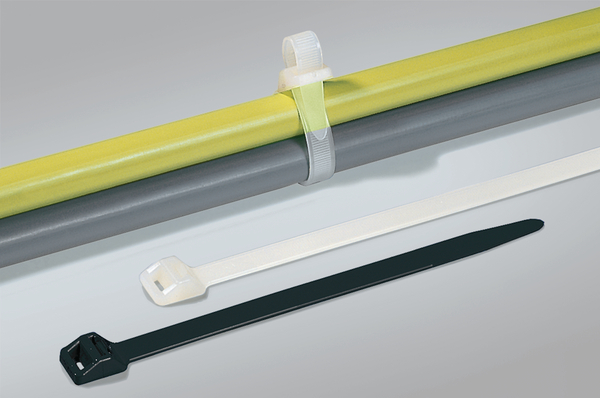

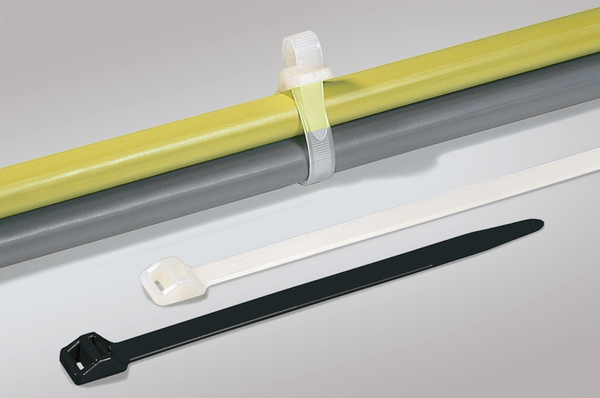

Application The RT250 is a releasable cable tie. Due to its minimum loop tensile strength of 1,115 N the cable tie is perfectly suited to fix larger and/or heavier bundles. RT250 can be opened and reused. UV-resistant cable ties manufactured from PA66W are recommended for outdoor applications. For shorter lengths REL250-Series can be offered.
Colour Black (BK)
Fixation Method Releasable Cable Tie
Identification Plate Position none
Key product features releasable
Local order number RT250M.NB1P
Material Polyamide 6.6 (PA66)
PART DESCRIPTION RT250M-PA66-BK
Pack Cont. 25pcs.
Package Content packed in Bag
Product Family RT250-Series up to 1115 N loop tensile strength
Product Group Cable ties inside serrated with tuckaway
Releasable Closure (Yes/No) Yes
Short Description Cable Tie with Tuckaway 565x12.5 mm PA66 black
Tie Closure plastic pawl
Type RT250M
Variant Inside Serrated
Bundle Diameter max (metric) 150.0mm
Bundle ∅ 12.0-150.0mm
Bundle ∅ min. 12.0mm
Length (L) 565.3mm
Min.Tensile Strength 1115N
Thickness (T) 2.2mm
Weight/Unit 0.013kg
Width (W) 12.5mm
CE Certification Yes
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B, IEC 60092 series
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL Recognized (US and Canada) Yes
UL-File Number E64139
UV-Stabilised No
Country of Origin MX
Customs Number 39269097
GTIN-13 / EAN 4031026115719
Packaging 1 - Height (m) 0.043m
Packaging 1 - Length (m) 0.602m
Packaging 1 - Qty 25
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00365
Packaging 1 - Weight (kg) 0.325001kg
Packaging 1 - Width (m) 0.141m

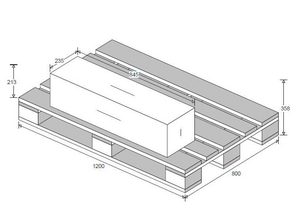

Packaging 3 - Height (m) 0.213m
Packaging 3 - Length (m) 0.845m
Packaging 3 - Qty 500
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0423
Packaging 3 - Weight (kg) 7.09002kg
Packaging 3 - Width (m) 0.235m

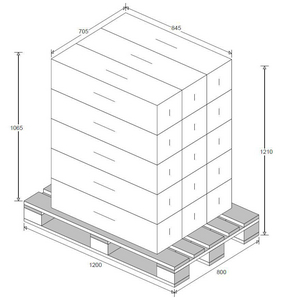

Packaging 4 - Height (m) 1.209m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 7500
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.161
Packaging 4 - Weight (kg) 127.35kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
