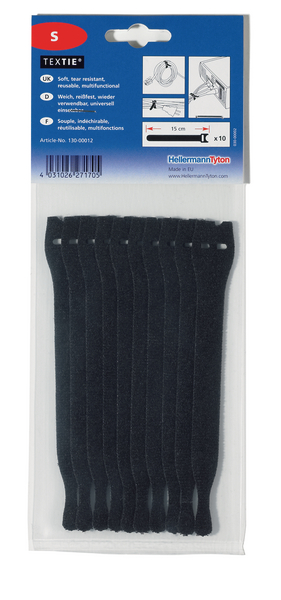

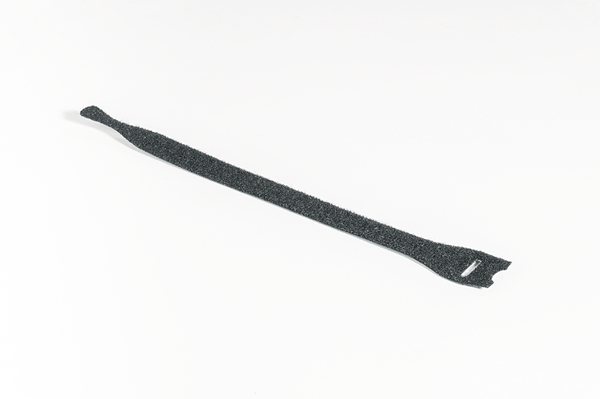

Hook and Loop Ties TEXTIE S

TEXTIE-Series, Article number: 130-00012

Features

  • Quick and simple to use without tools
  • Re-usable up to 400 times
  • Various colours for easy identification
  • For indoor and outdoor use
  • Can be attached to the bundle permanently
  • Resistant to ageing, no corrosion

Certifications & Approvals

Application

The TEXTIE-Series offers a soft bundling method and is ideal for use on telephone cables, optical fibre and network cables. These cable ties can be reopened and reused up to 400 times. A perfect solution for temporary installations and cable management for stage equipment, at outdoor events or for prototype harnessing. Also suitable for use in private or office applications. TEXTIE cable ties are available in various colours and can be used to colour-code cables and/or wires.

TEXTIE-Series is suitable for following markets and industries

Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Hook and Loop Tie 150x12.5 black
GLOBAL PART DESCRIPTION TEXTIE S-PA66/PP-BK
Identification Plate Position none
Pack Cont. 10pcs.
Package Quantity per Bag
Product Family TEXTIE-Series
Product Group Hook and Loop Ties
Releasable Closure (Yes/No) Yes
Tie Closure hook and loop
Type TEXTIE-S-PA/PP-BK-X1
Variant Grip Tie
Bundle ∅ max. 45.0mm
Length (L) 150mm
Thickness (T) 1.3mm
Width (W) 12.5mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous good No
Material Polyamide 6.6 (PA66), Polypropylene (PP)
Material Hook Polypropylene (PP)
Material Loop Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Shortcut Material Hook PP
Shortcut Material Loop PA
Specifications
EAN / GTIN 4031026271705
Minimum Order Quantity 1
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.242m
Packaging 1 - Qty 1
Packaging 1 - Type Pack
Packaging 1 - Volume (m³) 0.00097
Packaging 1 - Weight (kg) 0.018kg
Packaging 1 - Width (m) 0.1m
Packaging 3 - Height (m) 0.27m
Packaging 3 - Length (m) 0.6m
Packaging 3 - Qty 150
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0648
Packaging 3 - Weight (kg) 5.955kg
Packaging 3 - Width (m) 0.4m
Weight 0.018kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
