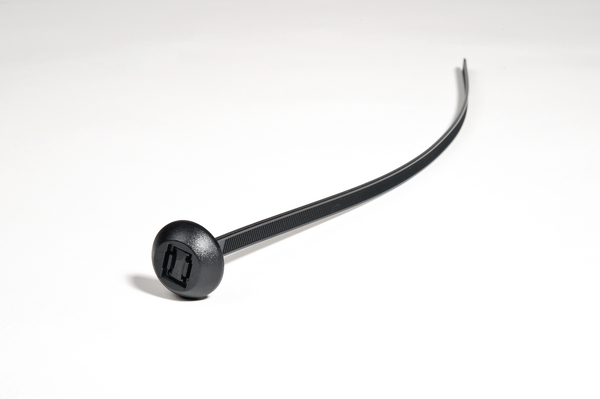

Cable Ties for single hole application (Chassis Tie) : BHT375

Chassis Tie 375x7.6 centrering HS-black, Article number: 150-37595

Features

  • Both sides of the cable tie serrated

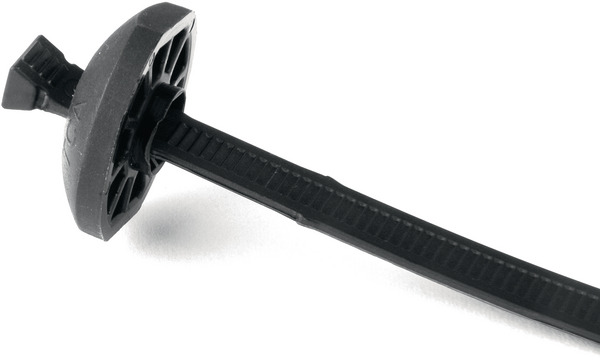

  • BHT-Series with round head for larger bearing area
  • BHT375 for centred position
  • CT- and DE-Series with small squared head for restricted space areas
  • Tensioning with application tool

Certifications & Approvals

Application

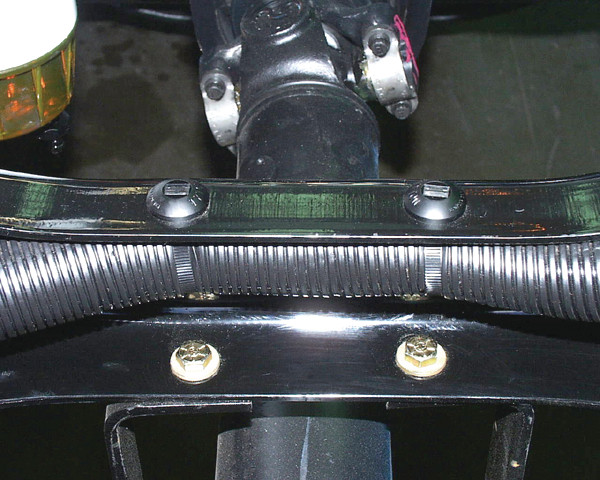

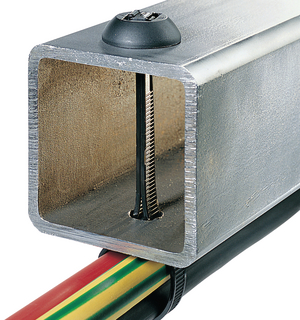

Using a single hole these 'chassis ties' are widely used in the automotive, truck and heavy equipment markets. Ideal for applications which have access to both sides of the hole - for example truck frames.

Application Tool MK6, MK9P, MK21, EVO9, EVO9HT
Colour Black (BK)
Fixation Method Fixing hole
Identification Plate Position none
Pack Cont. 250pcs.
Package Quantity per Bag
PART DESCRIPTION BHT375-PA66HS-BK
Product Family BHT-Series with round head
Product Group Cable Ties for single hole application (Chassis Tie)
Releasable Closure (Yes/No) No
Short Description Chassis Tie 375x7.6 centrering HS-black
Tie Closure plastic pawl
Type BHT375.HB5P
Variant Outside Serrated

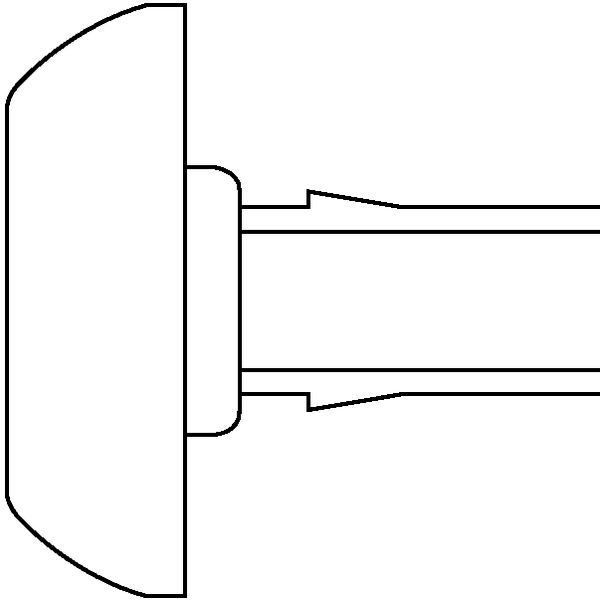

Bundle ∅ max. 100mm
for Hole ∅ (FH) 12.0 mm
Height (H) 7.5mm
Length (L) 375mm
Min.Tensile Strength 700N
Thickness (T) 1.5mm
Width (W) 7.6mm
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous good No
Material Polyamide 6.6, heat stabilised (PA66HS)
Material Head Polyamide 6.6, heat stabilised (PA66HS)
Operating Temperature - °C -40 °C to +105 °C, (+105 °C for 500 h)
Specifications
EAN / GTIN 4031026120591
Packaging 1 - Height (m) 0.2m
Packaging 1 - Length (m) 0.47m
Packaging 1 - Qty 250
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.05123
Packaging 1 - Weight (kg) 1.593597kg
Packaging 1 - Width (m) 0.545m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 2000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 13.568776kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 24000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 183.864kg
Packaging 4 - Width (m) 0.8m
Weight 1.55kg
ETIM 6.0 EC000046
ETIM 7.0 Key EC000046
