Cable tie outside serrated for direct fixation, 375x7.6mm, Ø100mm, black, 500pcs.
Art.-No. 132-37540 | CT375-PA66HS-BK Details

  • Both sides of the cable tie serrated
  • BHT-Series with round head for larger bearing area
  • BHT375 for centred position
  • CT- and DE-Series with small squared head for restricted space areas
  • Tensioning with application tool
Show more
Package size

Request your individual offer now

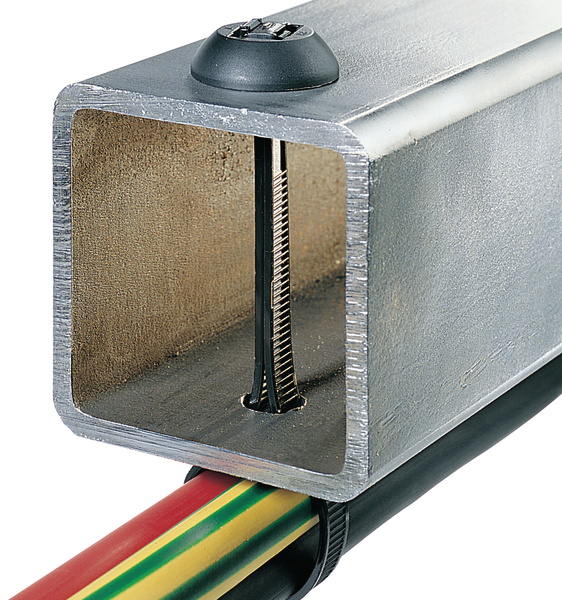

Application Using a single hole these 'chassis ties' are widely used in the automotive, truck and heavy equipment markets. Ideal for applications which have access to both sides of the hole - for example truck frames.
Application Tool ProCut 9 no battery, EVOcut, MK9P, MK9P w/ Upper air, MK10-SB, MK21, EVO9SP, EVO9HT, EVO9i, EVO9iSP, EVO9iHT
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
Colour Black (BK)
Fixation Method Others
Identification Plate Position none
Key product features for direct fixation
Local order number CT375.HB6E
Material Polyamide 6.6, heat stabilised (PA66HS)
Material Head Polyamide 6.6, heat stabilised (PA66HS)
PART DESCRIPTION CT375-PA66HS-BK
Pack Cont. 500pcs.
Package Content packed in pcs.
Product Family CT-Series with square head, 700 N loop tensile strength
Product Group Cable ties for single hole application
Releasable Closure (Yes/No) No
Short Description Chassis Tie 375x7.6 mm, heat stabilised, black
Tie Closure plastic pawl
Type CT375
Variant Outside Serrated
Bundle Diameter max (metric) 100mm
Bundle ∅ 100mm
Cable Tie Head Height (metric) 12mm
Cable Tie Head Length (metric) 7.5mm
Cable Tie Head Width (metric) 15mm
Height (H) 1.5mm
Height (H2) 7.5mm

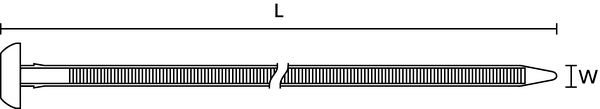

Length (L) 375mm
Min.Tensile Strength 700N
Thickness (T) 1.5mm
Weight/Unit 0.0038kg
Width (W) 7.6mm
for Hole ∅ (FH) 9.5 - 10.5 mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Nato number 5975-12-183-4844
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
Country of Origin SG
Customs Number 39269097
GTIN-13 / EAN 4031026115832
Packaging 1 - Height (m) 0.057m
Packaging 1 - Length (m) 0.415m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00994
Packaging 1 - Weight (kg) 2.550001kg
Packaging 1 - Width (m) 0.42m
Packaging 3 - Height (m) 0.218m
Packaging 3 - Length (m) 0.599m
Packaging 3 - Qty 2000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0522
Packaging 3 - Weight (kg) 10.950004kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Height (m) 1.234m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 40000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.185
Packaging 4 - Weight (kg) 240.0kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
