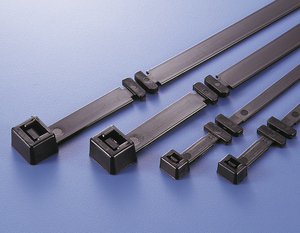

Cable tie inside serrated for direct fixation, 320x7.6mm, black, 100pcs.
Art.-No. 111-98121 | CTF120-PA66-BK Details

  • Usable with common styles of cable tray
  • Meets rated break point to provide easy installation
  • No pulling of cable tie underneath cable harness

Request your individual offer now

Application The CTF Fixing Ties are designed specifically for use with cable tray.
Application Tool ProCut 9 no battery, EVOcut, MK9P, MK9P w/ Upper air, MK10-SB, MK21, EVO9SP, EVO9HT, EVO9i, EVO9iSP, EVO9iHT
Colour Black (BK)
Fixation Method Others
Identification Plate Position none
Key product features for direct fixation
Local order number CTF120.NB3P
Material Polyamide 6.6 (PA66)
PART DESCRIPTION CTF120-PA66-BK
Pack Cont. 100pcs.
Package Content packed in Bag
Product Family CTF-Series
Product Group Cable Ties inside serrated for cable tray
Releasable Closure (Yes/No) No
Short Description Cable Ties inside serrated for cable tray 320x7.6 black
Tie Closure plastic pawl
Type CTF120
Variant Inside Serrated

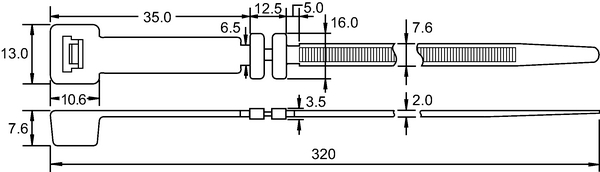

Height (H) 7.6mm
Length (L) 320mm
Min.Tensile Strength 535N
Thickness (T) 2mm
Weight/Unit 0.005kg
Width (W) 7.6mm
for Hole ∅ (FH) 6.5 x 16.0 mm, 9.5 x ∞ mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660019265
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.406m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00247
Packaging 1 - Weight (kg) 0.500001kg
Packaging 1 - Width (m) 0.152m
Packaging 3 - Height (m) 0.345m
Packaging 3 - Length (m) 0.38m
Packaging 3 - Qty 2000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0498
Packaging 3 - Weight (kg) 10.62002kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.179m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 36000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.132
Packaging 4 - Weight (kg) 212.16kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
