1-Piece Fixing Ties for Weld Studs, for Heavy Duty Applications, for parallel routing : DCT11

1-piece dual clamp tie 488x12.7 mm black, Article number: 115-31100

Features

  • Parallel seperation between hoses, wires, cables and tubing
  • Abrasion protecion
  • Optional mounting hole for securing bundles along the Chassis of trucks, trails and heavy duty equipment

Certifications & Approvals

Application

Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.

DCT11 is suitable for following markets and industries

Application Tool MK6, MK9P, MK21, EVO9, EVO9HT
Colour Black (BK)

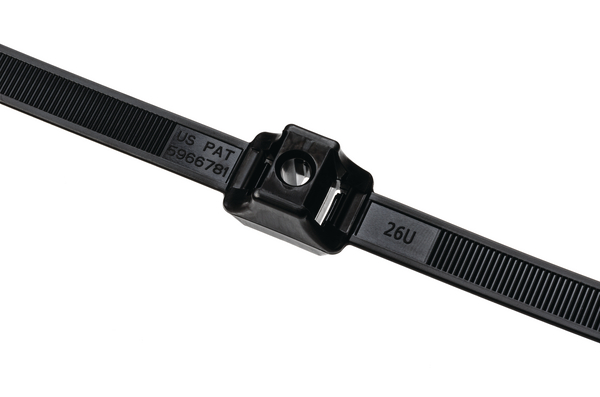

Description Dual Clamp Ties are designed to provide parallel separation between hoses, wires, cables, and tubing to protect them from abrasion. These ties have an optional mounting hole for securing bundles along the chassis of tracks, trailers, and heavy duty equipment. The unique one-piece design features the dual head centered on the strap.
Fixation Method Weld Stud Fixing
Identification Plate Position none
Pack Cont. 50pcs.
Package Quantity per Bag
PART DESCRIPTION DCT11-PA66HIRHS-BK
Product Group 1-Piece Fixing Ties for Weld Studs, for Heavy Duty Applications, for parallel routing
Releasable Closure (Yes/No) No
Short Description 1-piece dual clamp tie 488x12.7 mm black
Tie Closure plastic pawl
Type DCT11.NB2P
Variant Inside Serrated
Bundle ∅ max. 58.0mm
Bundle ∅ min. 6.4mm
for Hole ∅ (FH) 6.2 mm
Height (H) 20.32mm
Length (L) 487.68mm
Min.Tensile Strength 667.0N
Stud ∅ M6
Stud ∅ (imperial) 1/4"
Width (W) 12.7mm
Width (W2) 19.7mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous good No
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Operating Temperature - °C -40 °C to +110 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
EAN / GTIN 4031026108612
Packaging 1 - Height (m) 0.075m
Packaging 1 - Length (m) 0.565m
Packaging 1 - Qty 50
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01526
Packaging 1 - Weight (kg) 0.600001kg
Packaging 1 - Width (m) 0.36m
Packaging 3 - Height (m) 0.375m
Packaging 3 - Length (m) 0.585m
Packaging 3 - Qty 500
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0625
Packaging 3 - Weight (kg) 6.73001kg
Packaging 3 - Width (m) 0.285m
Packaging 4 - Height (m) 1.269m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 6000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.218
Packaging 4 - Weight (kg) 101.76kg
Packaging 4 - Width (m) 0.8m
Weight 0.6kg
ETIM 6.0 EC000046
ETIM 7.0 Key EC000046
UNSPSC Key 39121703
