28/04/2024

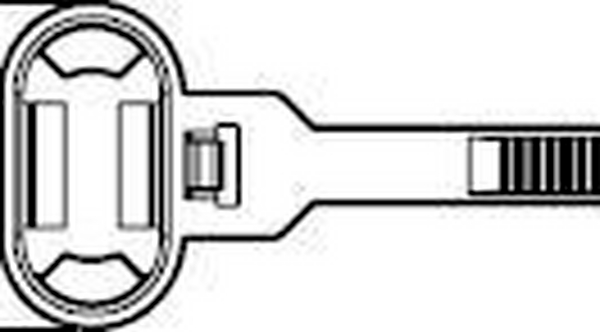

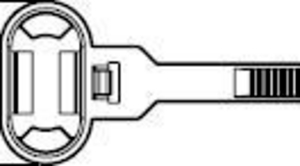

Fixing tie for stud, Ø1.5-35mm, black, 500pcs.
Art.-No. 157-00094 | HT160SB6HE-PA66-BK |  Details

    • One-piece fixing ties
    • High specification materials
    • Superior design
    • Suitable for complex applications
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
    Application Tool ProCut 9 no battery, EVOcut, MK9P, MK9P w/ Upper air, MK10-SB, MK21, EVO9SP, EVO9HT, EVO9i, EVO9iSP, EVO9iHT
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Identification Plate Position none
    Local order number HT160SB6HE-B
    Material Polyamide 6.6 (PA66)
    Mounting Screw Type M6 Screw
    Pack Cont. 500pcs.
    Package Content packed in Bag
    PART DESCRIPTION HT160SB6HE-PA66-BK
    Product Group 1-piece fixing ties for weld studs
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Bundle Diameter max (metric) 35mm
    Bundle ∅ 1.5-35mm
    Bundle ∅ min. 1.5mm
    Height (H) 1.35mm
    Height (H2) 17.3mm
    Length (L) 167mm
    Min.Tensile Strength 200N
    Stud ∅ M6
    Width (W) 5mm
    Width (W2) 21.2mm
    Specifications
    Country of Origin KR
    GTIN-13 / EAN 4031026406183
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
