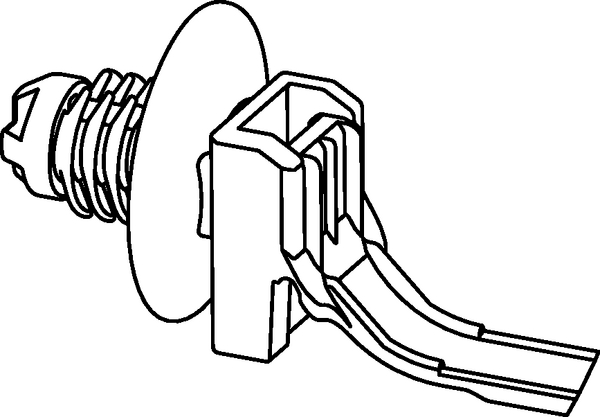

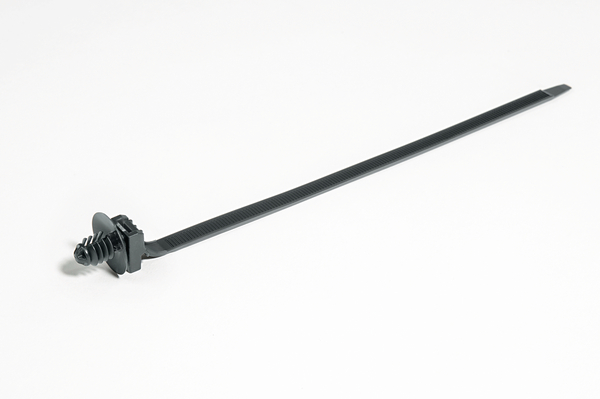

1-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes OS170-FT7-LH

Fir Tree Parts FT7, Article number: 157-00019

Features

  • Cable tie head always situated in defined position
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust, dirt and water
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes

Certifications & Approvals

Application

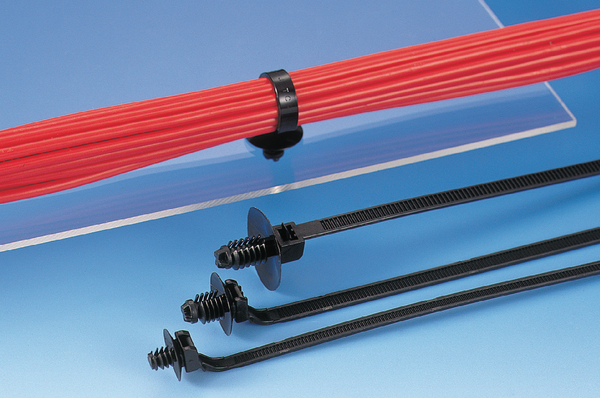

Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear and white goods manufacturing.

Fir Tree Parts FT7 is suitable for following markets and industries

Application Tool MK6, MK9P, MK21, EVO9, EVO9HT
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) 1-Piece fixing tie 163x4.6 mm, with fir tree, grey
Fixation Method Fir Tree
GLOBAL PART DESCRIPTION OS170-FT7-LH-PA66-BK
Identification Plate Position none
Pack Cont. 100pcs.
Package Quantity per Bag
Product Family Fir Tree Parts FT7
Product Group 1-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type OS170-FT7-LH
Bundle ∅ max. 30.0mm
Bundle ∅ min. 1.6mm
Disc ∅ 16.0mm
for Hole ∅ (FH) 6.8 - 7.2 mm
for Panel Thickness min - max 0.6 - 4.5 mm
Hole Depth 9.9mm
Length (L) 170mm
Length (L2) 16.9mm
Min.Tensile Strength 147N
Thickness (T) 1.4mm
Width (W) 5.3mm
Width (W2) 8.8mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous good No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
EAN / GTIN 4944387938562
Packaging 1 - Height (m) 0.058m
Packaging 1 - Length (m) 0.22m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00255
Packaging 1 - Weight (kg) 0.163kg
Packaging 1 - Width (m) 0.2m
Packaging 3 - Height (m) 0.315m
Packaging 3 - Length (m) 0.505m
Packaging 3 - Qty 2500
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0589
Packaging 3 - Weight (kg) 4.605kg
Packaging 3 - Width (m) 0.37m
Packaging 4 - Height (m) 1.089m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 30000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.045
Packaging 4 - Weight (kg) 76.26kg
Packaging 4 - Width (m) 0.8m
Weight 0.163kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
