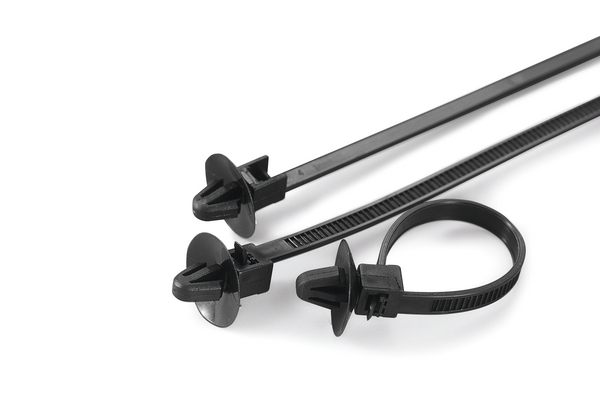

1-Piece Fixing Ties with Arrowhead, with Disc, releasable RT50SD6
1-Piece Fixing Tie with Arrowhead, with Disc, releasable, for round holes, Article number: 111-85480
Features
- Easy to install without the need for a tool
- Arrowhead simply locks into place

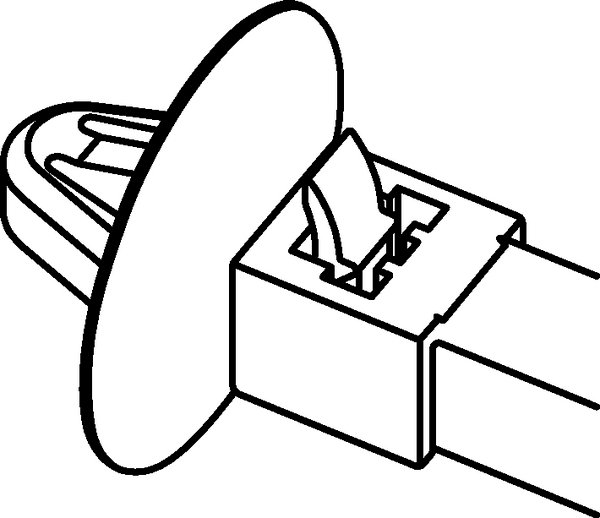

- Disc adjusts tie for pressures from various directions and minimises access of dust, dirt and water
- Cable tie head always situated in a defined position
- releasable and therefor reusable
Certifications & Approvals
Application
With a diverse range of fixing possibilities are ideal for use in many different industries, including automotive, aerospace and panel building.
1-Piece Fixing Tie with Arrowhead, with Disc, releasable, for round holes is suitable for following markets and industries
More products in this product group
1-Piece Fixing Ties with Arrowhead, with Disc, releasable >| Application Tool | MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9 |
| Colour | Black (BK) |
| Description Short (BMEcat) (max. 150 characters) | Releasable 1-Piece Fixing Tie with Arrowhead and Disc PA66HS 160x5 mm black |
| Fixation Method | Arrowhead |
| GLOBAL PART DESCRIPTION | RT50SD6-PA66HS-BK |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | pcs. |
| Product Family | 1-Piece Fixing Tie with Arrowhead, with Disc, releasable, for round holes |
| Product Group | 1-Piece Fixing Ties with Arrowhead, with Disc, releasable |
| Releasable Closure (Yes/No) | Yes |
| Tie Closure | plastic pawl |
| Type | RT50SD6.HB3P |
|
|
|
| Bundle ∅ max. | 31.0mm |
| Bundle ∅ min. | 1.5mm |
| Disc ∅ | 18.0mm |
| for Hole ∅ (FH) | 6.3 - 7.5 mm |
| for Panel Thickness min - max | 0.6 - 1.8 mm |
| Height (H) | 18.0mm |

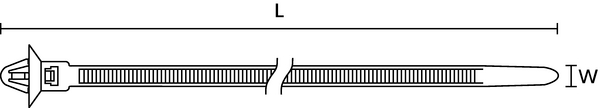

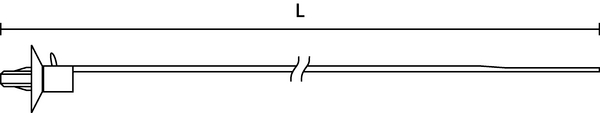

| Length (L) | 160.0mm |
| Min.Tensile Strength | 225N |
| Thickness (T) | 1.5mm |
| Width (W) | 5.0mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Operating Temperature - °C | -40 °C to +105 °C |
| Specifications |
|
|
|
|
| EAN / GTIN | 5022660118463 |
| Packaging 1 - Height (m) | 0.055m |
| Packaging 1 - Length (m) | 0.365m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00422m³ |
| Packaging 1 - Weight (kg) | 0.161kg |
| Packaging 1 - Width (m) | 0.21m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 3000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 5.632kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.164m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 60000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.117m³ |
| Packaging 4 - Weight (kg) | 133.64kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.161kg |
| ETIM 5.0 | EC000046 |
| ETIM 6.0 | EC000046 |
