Fixing tie for stud/with pipe/tube holder, outside serrated, ⌀1.5-40.0mm, black, 250pcs.
Art.-No. 157-00539
| T50ROSASHC13SB5-6E-PA66HIRHS-BK
|
Copied
- Bundling and fixing solution
- Ideal combination of materials and design
- Different positions of the fixing anchor are available to fit installation space
Request quote
This product is part of:
| Cable Tie | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Colour | Black (BK) |
| Ergonomy Feature |

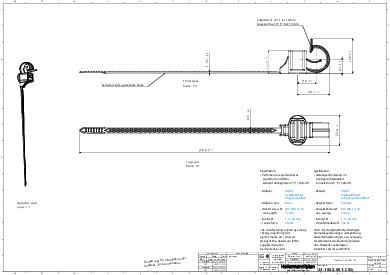

≤ 30 N assembly force: Product fulfills defined assembly force requirements. Details and tolerances as per technical drawing. Actual force may vary depending on the surface, assembly situation and accessibility. Verify applicability under real conditions before use to ensure applicability for the intended purpose. |
| Fixation Method | Stud Mount |
| Identification Plate Position | none |
| Key product features | ergonomic design |
| Local order number | T50ROSASHC13SB5-6E-PA66HIRHS-BK |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Min.Tensile Strength | 180N |
| PART DESCRIPTION | T50ROSASHC13SB5-6E-PA66HIRHS-BK |
| Package Content | 250pcs. |
| Package Content packed in | Bag |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | T50ROSASHC13SB5-6E |
| UV-Stabilised | No |
| Variant | Outside Serrated with AntiSlip Engraving |
| Weight/Unit | 0.004009kg |
|
|
|
| Country of Origin | PL |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026749464 |
| Packaging 1 - Height (m) | 0.075m |
| Packaging 1 - Length (m) | 0.455m |
| Packaging 1 - Qty | 250 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.013479375m³ |
| Packaging 1 - Weight (kg) | 1.031385kg |
| Packaging 1 - Width (m) | 0.395m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 2250 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 10.153265kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 27000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 143.827kg |
| Packaging 4 - Width (m) | 0.8m |
