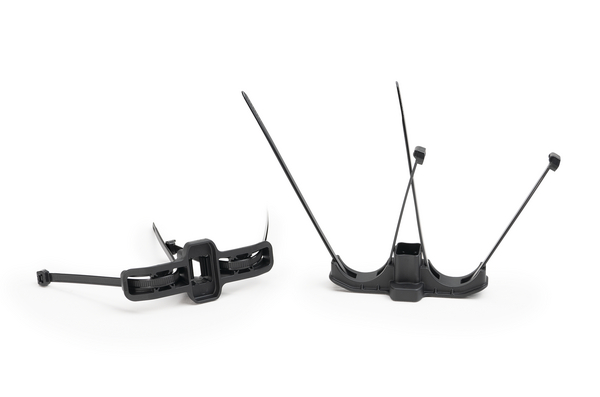

Fixing tie for cable bundles/for stud, outside serrated, ⌀8.0-26.0mm, black, 200pcs.
Art.-No. 156-03240
| T50ROSCTMD26SB5-6-PA66HS/PA66HIRHS-BK
|
Copied
- Oval housing for welding studs enables tolerance compensation during assembly
- Supports a wider range of cable diameters for parallel bundling
- Cable tie head can be repositioned for ideal alignment with the cable bundle
- ‘Soft-push’ design enables effortless, tool-free manual assembly by hand
- Integrated retaining rib secures corrugated cables (e.g. protective conduits) and provides additional stability and protection in dynamic environments
Request your individual offer now
Request quote
More products in this product group:

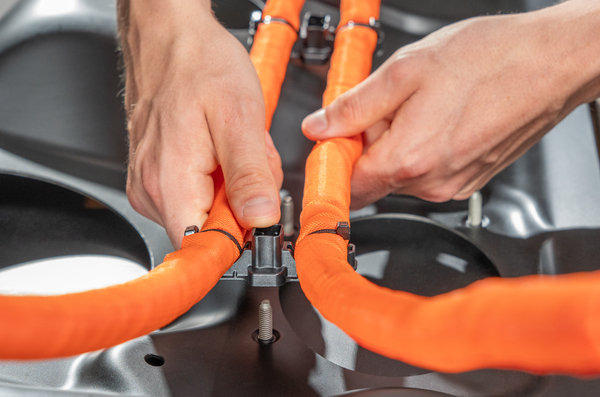

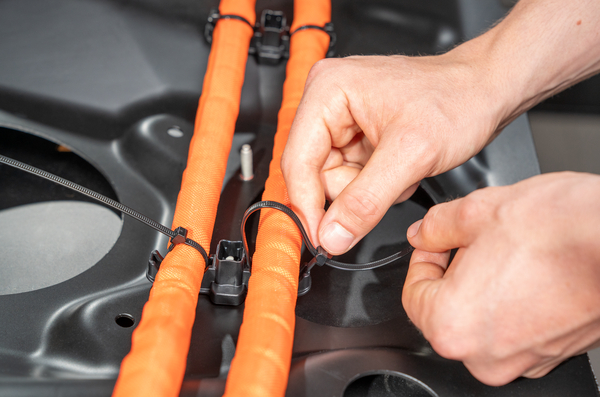

| Application | With our new “WAVE FIXING” products, we meet the increasing demand of parallel cable routing for electric vehicles. |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Key product features | for multiple routing |
| Local order number | T50ROSCTMD26SB5-6-PA66HS/PA66HIRHS-BK |
| Material | Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | T50ROSCTMD26SB5-6-PA66HS/PA66HIRHS-BK |
| Pack Cont. | 200pcs. |
| Package Content packed in | Bag |
| Product Family | multi parallel routing, outside serrated |
| Product Group | Fixing ties for weld studs |
| Type | T50ROSCTMD26SB5-6 |
Download
|
|
|
| Country of Origin | PL |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026731353 |
| Packaging 1 - Height (m) | 0.115m |
| Packaging 1 - Length (m) | 0.55m |
| Packaging 1 - Qty | 200 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.03036m³ |
| Packaging 1 - Weight (kg) | 1.588197kg |
| Packaging 1 - Width (m) | 0.48m |
| Packaging 3 - Height (m) | 0.538m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 1200 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.1213m³ |
| Packaging 3 - Weight (kg) | 10.629182kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.22m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 9600 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.171m³ |
| Packaging 4 - Weight (kg) | 106.053kg |
| Packaging 4 - Width (m) | 0.8m |
T50ROSCTM16D26SB5-6-PA66HS/PA66HIRHS-BK
156-03242
