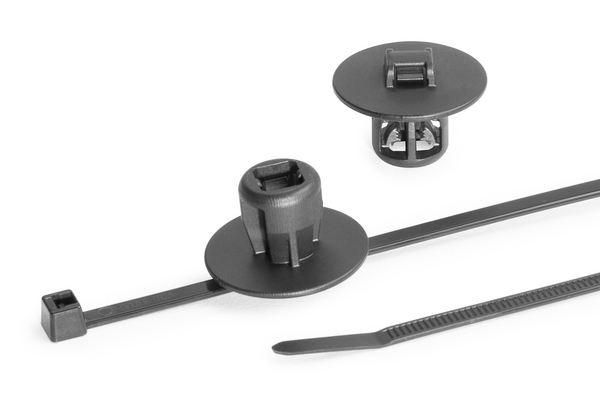

Fixing tie for stud, inside serrated, ⌀1.4-45.0mm, black, 500pcs.
Art.-No. 156-03416
| T50RSBD5-6SD-PA66HS/PA66HIRHS-BK
|
Copied

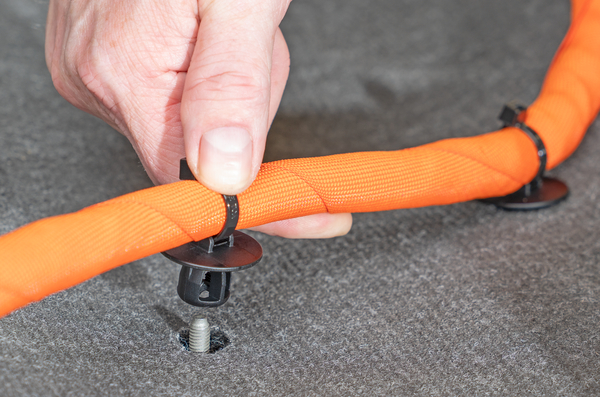

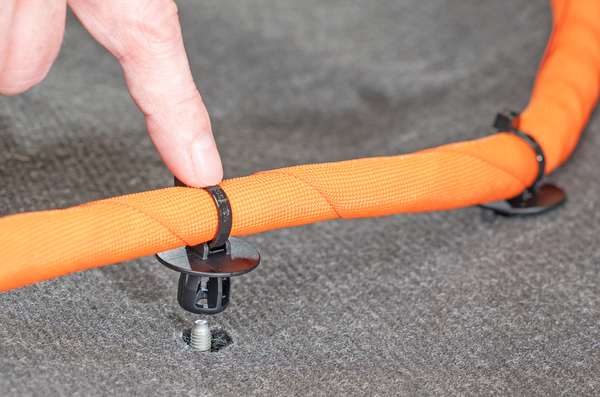

- Pre-assembled with integrated cable tie and weld stud mounting foot for quick and solid installation
- Low insertion force (~30 N or less) supports ergonomic and worker-friendly installation - ideal for high-volume production lines
- Enables secure bundling of very small diameters, starting at a diameter of just 1.0 mm
- Designed for sustainable workflows by reducing operator strain and minimising rework
Request your individual offer now
Request quote
More products in this product group:
| Application | Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where 5mm weld studs or 5mm ISO bolts are used and cables need to be bundled and secured |
| Cable Tie | Polyamide 6.6, high heat stabilised (PA66HHS) |
| Colour | Black (BK) |
| Fixation Method | Weld Stud Fixing |
| Foot Part | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Identification Plate Position | none |
| Key product features | small diameter, ergonomic design |
| Local order number | PA66+PA66HIRHS T50RSBD5-6SD_BK |
| Material | Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Min.Tensile Strength | 225N |
| PART DESCRIPTION | T50RSBD5-6SD-PA66HS/PA66HIRHS-BK |

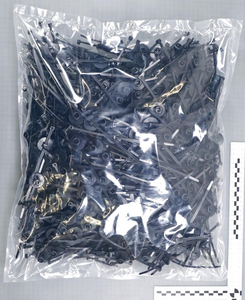

| Package Content | 500pcs. |
| Package Content packed in | Bag |
| Product Family | on the stud |
| Product Group | 2-Piece Fixing Ties for Weld Studs |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | T50RSBD5-6SD |
| Weight/Unit | 0.003862kg |
Download
|
|
|
| Country of Origin | PL |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026742823 |
| Packaging 1 - Height (m) | 0.095m |
| Packaging 1 - Length (m) | 0.55m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.02481875m³ |
| Packaging 1 - Weight (kg) | 1.974597kg |
| Packaging 1 - Width (m) | 0.475m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 2500 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 10.692985kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 30000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 149.34kg |
| Packaging 4 - Width (m) | 0.8m |
