Fixing tie for stud, ⌀1.0-45.0mm, black, 500pcs.
Art.-No. 156-03434 | T50RSBD5-6SD20-PA66HIRHS-BK |

Copied

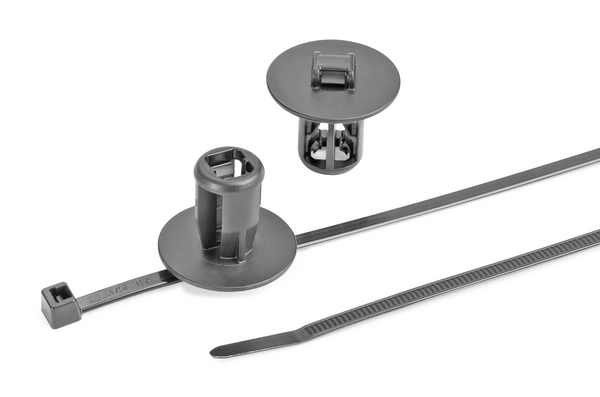

2-piece fixing tie for stud mounts. Cable tie in combination with an ERGO modified stud mount for NVH mats.
Two-piece fastening tie for 5 and 6 mm bolts — easily applied with just your thumb thanks to its ergonomic design, engineered for reduced assembly force within defined tolerance ranges.
Two-piece fastening tie for 5 and 6 mm bolts — effortlessly pushed on with your index finger thanks to its ergonomic design, optimized for low insertion forces within defined tolerance ranges.

    • Pre-assembled with cable tie and weld stud mounting base
    • Quick and easy installation
    • Head rotates into perfect position for installation
    • 'Soft-push' design for tool-free installation
    • Mushroom-shaped SBD handles insulation or a sound-deadening blanket
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where 5mm weld studs or 5mm ISO bolts are used and cables need to be bundled and secured
    Cable Tie Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Identification Plate Position none
    Key product features ergonomic design, small diameter
    Local order number T50RSBD5-6SD20-PA66HIRHS-BK
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Mechanical Strength 225N
    PART DESCRIPTION T50RSBD5-6SD20-PA66HIRHS-BK
    Package Content 500pcs.
    Package Content packed in Bag
    Product Group 2-Piece Fixing Ties for Weld Studs
    Short Description 2-piece cable tie with weld stud mounting base, ⌀1.0-45.0mm, black
    Tie Closure plastic pawl
    Type T50RSBD5-6SD20
    Weight/Unit 0.004114kg
    Bundle ⌀ 1.0-45.0mm
    Bundle ⌀ max. 45.0mm
    Bundle ⌀ min. 1.0mm
    Disc ⌀ 30.0mm
    Height (H) 1.2mm
    Height (H2) 27.6mm
    Height (H3) 20.8mm
    Length (L) 202.0mm
    Length (L2) 9.0mm
    Min Stud Length 10.0mm
    Stud ⌀ M5, T5, M6, T6
    Thickness (T) 1.2mm
    Width (W) 4.6mm
    Width (W2) 9.6mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026744469
    Packaging 1 - Height (m) 0.105m
    Packaging 1 - Length (m) 0.56m
    Packaging 1 - Qty 500
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.028224m³
    Packaging 1 - Weight (kg) 2.100597kg
    Packaging 1 - Width (m) 0.48m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 2000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 9.222388kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 24000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 131.688kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
