01/11/2025

Fixing tie for stud, ⌀1.0-45.0mm, black, 2000pcs.
Art.-No. 156-03432 | T50RSBD5-6SD20SET-PA66HIRHS-BK |

Copied

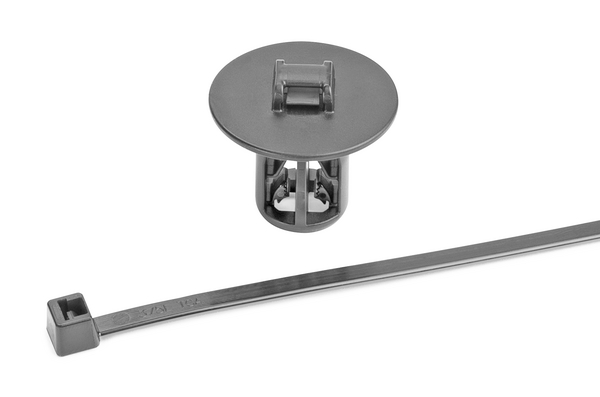

2-piece fixing tie for stud mounts. Cable tie in combination with an ERGO modified stud mount for NVH mats.

    • 2-piece cable tie and weld stud mounting base (as SET)
    • Quick and easy installation
    • Head rotates into perfect position for installation
    • 'Soft-push' design for tool-free installation
    • Mushroom-shaped SBH handles insulation or a sound-deadening blanket
    • SBS ideal for installation prior to attaching cable (i.e. no lateral tolerances required)
    • SB5 allow lateral tolerance for fixing point
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Cable Tie Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Identification Plate Position none
    Key product features ergonomic design, small diameter
    Local order number T50RSBD5-6SD20SET-PA66HIRHS-BK
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Mechanical Strength 225N
    Min.Tensile Strength 225N
    PART DESCRIPTION T50RSBD5-6SD20SET-PA66HIRHS-BK
    Package Content 2000pcs.
    Package Content packed in Bag
    Releasable Closure (Yes/No) No
    Short Description Fixing tie with weld stud mounting base, ⌀1.0-45.0mm, black
    Tie Closure plastic pawl
    Type T50RSBD5-6SD20SET
    Weight/Unit 0.004113kg

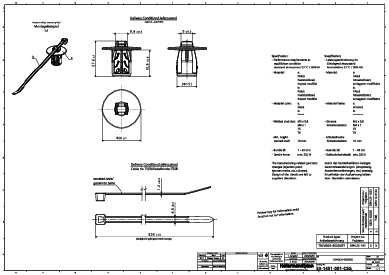

    Bundle ⌀ 1.0-45.0mm
    Bundle ⌀ max. 45.0mm
    Bundle ⌀ min. 1.0mm
    Disc ⌀ 30.0mm
    Height (H) 1.2mm
    Height (H2) 27.6mm
    Height (H3) 20.8mm
    Length (L) 202.0mm
    Min Stud Length 10.0mm
    Stud ⌀ T5, M5, T6, M6
    Thickness (T) 1.2mm
    Width (W) 4.6mm
    Width (W2) 9.6mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026744445
    Packaging 1 - Type Bag
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 2000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 9.188kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.204m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 40000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.156m³
    Packaging 4 - Weight (kg) 204.76kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
