Fixing tie for stud, outside serrated, ∅3.0-30.0mm, grey, 100pcs.
Art.-No. 157-00064 | T50SOSSBU-M5-PA66HSUV-GY Details

  • One-piece fixing ties
  • High specification materials
  • Superior design
  • Suitable for complex applications

Request your individual offer now

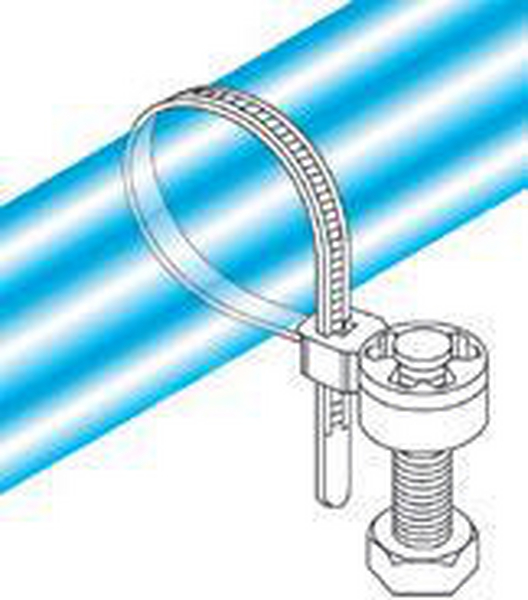

Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
Colour Grey (GY)
Fixation Method Weld Stud Fixing
Identification Plate Position none
Local order number T50SOSSBU-M5-HSW
Material Polyamide 6.6, heat and UV-stabilised (PA66HSUV)
Mounting Screw Type M5 Screw
PART DESCRIPTION T50SOSSBU-M5-PA66HSUV-GY
Pack Cont. 100pcs.
Package Content packed in Bag
Product Family T50SOSSBU for cable routing alongside the stud
Product Group 1-piece fixing ties for weld studs
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50SOSSBU-M5
Variant Outside Serrated
Bundle Diameter max (metric) 30.0mm
Bundle ∅ 3.0-30.0mm
Bundle ∅ min. 3.0mm
Length (L) 175.0mm
Min.Tensile Strength 150N
Stud ∅ M5
Thickness (T) 1.3mm
Width (W) 5.7mm
Flammability UL 94 V2
Operating Temperature -40 °C to +110 °C
ROHS compliant Yes
Specifications
Country of Origin JP
GTIN-13 / EAN 4944387954999
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
