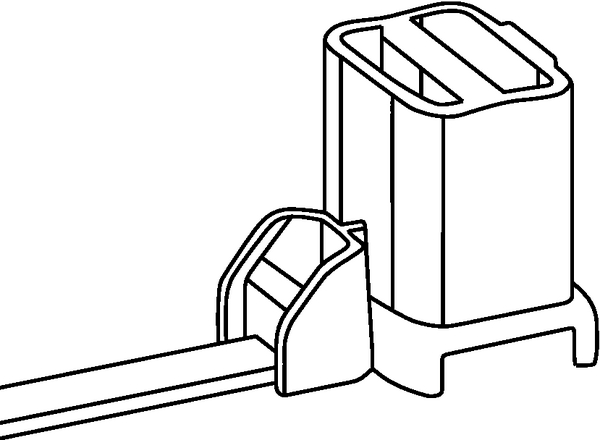

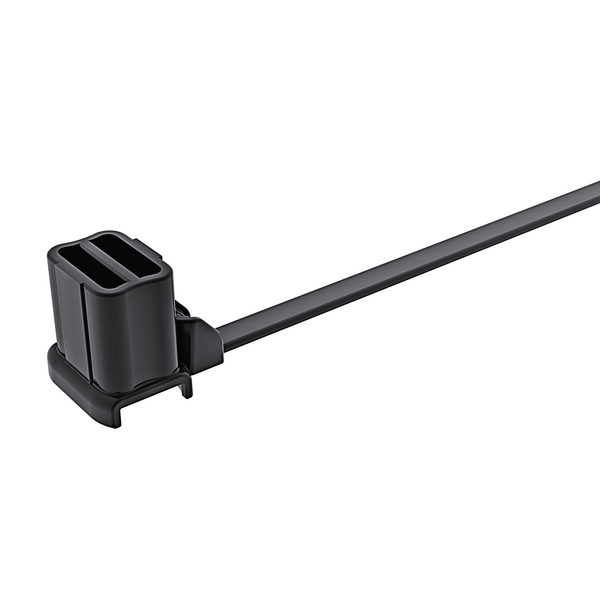

1-piece fixing ties for weld studs : T60ROSSB6HEC

Article number: 157-00101

Add to watchlist

Features

One-piece fixing ties
High specification materials
Superior design
Suitable for complex applications

Certifications & Approvals

Application

Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.

More products in this product group

1-piece fixing ties for weld studs >

Base Data

Application Tool	MK6, MK9P, MK21, EVO9, EVO9HT
Colour	Black (BK)
Fixation Method	Weld Stud Fixing
Identification Plate Position	none
Pack Cont.	500pcs.
Package Quantity per	Bag
PART DESCRIPTION	T60ROSSB6HEC-PA66HS-BK
Product Group	1-piece fixing ties for weld studs
Releasable Closure (Yes/No)	No
Tie Closure	plastic pawl
Type	T60ROSSB6HEC_PA66HS_D1

Product Dimensions

Bundle ∅ max.	55.0mm
Bundle ∅ min.	2.0mm
Height (H)	19.3mm
Length (L)	227.4mm
Max Stud Length	18mm
Min.Tensile Strength	300N
Stud ∅	6.0 mm
Width (W)	5.5mm

Material and Specifications

ELV compliant Dir. Art. 4 (2)	YES
Hazardous good	No
Material	Polyamide 6.6, heat stabilised (PA66HS)
Operating Temperature - °C	-40 °C to +105 °C, (+105 °C for 500 h)
Specifications

Logistics and Packaging


EAN / GTIN	4031026428321
Packaging 1 - Height (m)	0.2m
Packaging 1 - Length (m)	0.47m
Packaging 1 - Qty	500
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.05123m³
Packaging 1 - Weight (kg)	1.787097kg
Packaging 1 - Width (m)	0.545m
Packaging 3 - Height (m)	0.368m
Packaging 3 - Length (m)	0.584m
Packaging 3 - Qty	2500
Packaging 3 - Type	Carton
Packaging 3 - Volume (m³)	0.083m³
Packaging 3 - Weight (kg)	9.755485kg
Packaging 3 - Width (m)	0.386m
Packaging 4 - Height (m)	1.248m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	30000
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.198m³
Packaging 4 - Weight (kg)	138.09kg
Packaging 4 - Width (m)	0.8m
Weight	1.7435kg
