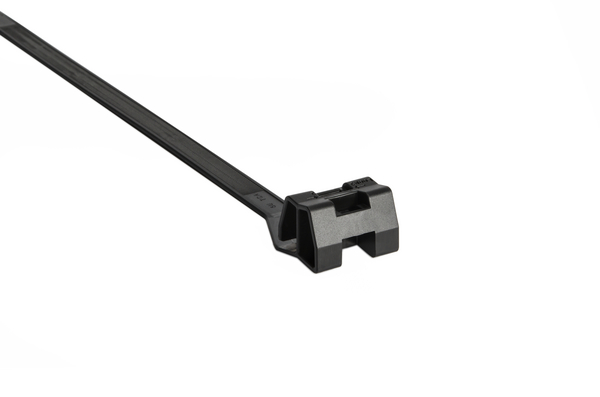

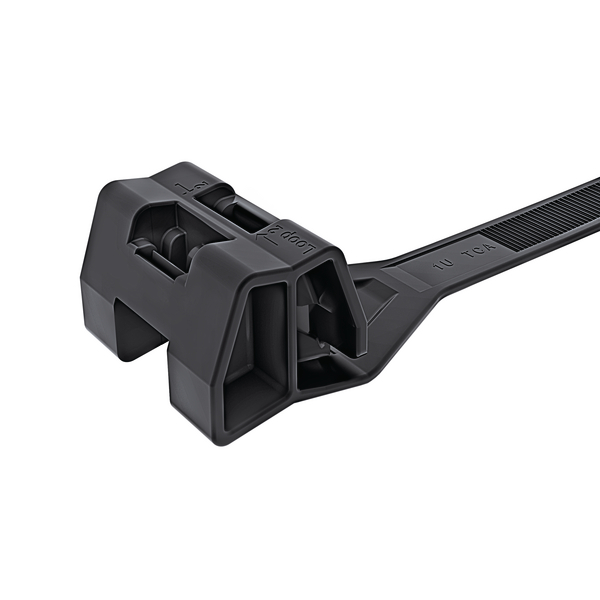

Cable tie outside serrated for direct fixation, 420.0x12.7mm, ⌀114.0mm, black, 500pc.
Art.-No. 111-01672
| TAS120L-PA66HIRHSUV-BK
|
Copied
- Halogen-free
- Suitable for installation in public areas, road or railway tunnels
- Built-in spacer for easy and quick installation
Request your individual offer now
Request quote
More products in this product group:

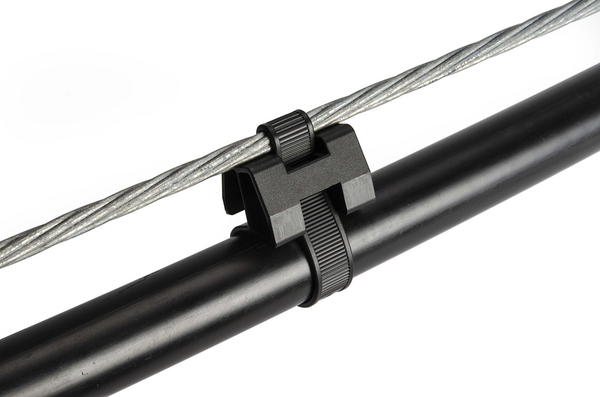

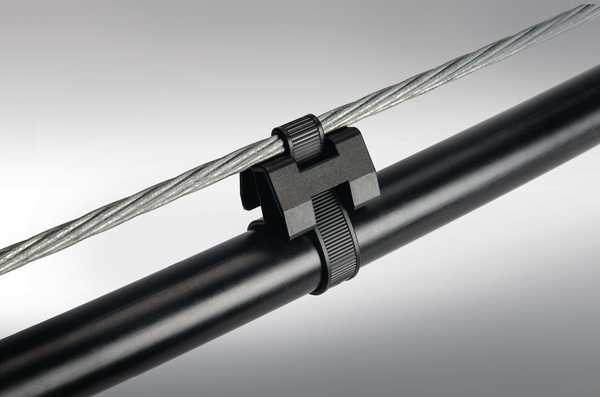

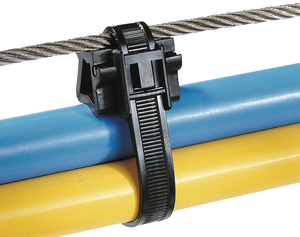

| Application | Designed as a catenary mounting tie it is simple to use. Typical applications are for suspending cables between buildings, supporting antenna cables or installation of railway signalling cables.Aerial Support Ties feature a built-in spacer to separate cables from the support wire and prevent abrasion. Formulated from a special nylon blend, these ties are specifically suited for long-term outdoor use. The bent tail allows for quick and simple installation by hand. |
| Colour | Black (BK) |
| Fixation Method | Others |
| Identification Plate Position | none |
| Key product features | for direct fixation |
| Local order number | 111-01672 |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Min.Tensile Strength | 535N |
| PART DESCRIPTION | TAS120L-PA66HIRHSUV-BK |
| Package Content | 500pc. |
| Package Content packed in | Pack |
| Product Family | For parallel routing of pipes and harnesses |
| Product Group | 1-piece fixing tie with built-in spacer |
| Releasable Closure (Yes/No) | No |
| Short Description | Cable Tie 420x12.7 mm, outside serrated for parallel routing, high impact modified, heat and UV stabilised, black |
| Tie Closure | plastic pawl |
| Type | TAS120L |
| UV-Stabilised | Yes |
| Variant | Outside Serrated |
| Weight/Unit | 0.014538kg |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C, (+105 °C for 500 h) |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026514581 |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Weight (kg) | 7.388kg |
| Packaging 3 - Height (m) | 0.37465m |
| Packaging 3 - Length (m) | 0.59055m |
| Packaging 3 - Qty | 500 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0646m³ |
| Packaging 3 - Weight (kg) | 8.208kg |
| Packaging 3 - Width (m) | 0.2921m |
| Packaging 4 - Height (m) | 1.263m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 6000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.212m³ |
| Packaging 4 - Weight (kg) | 119.496kg |
| Packaging 4 - Width (m) | 0.8m |
