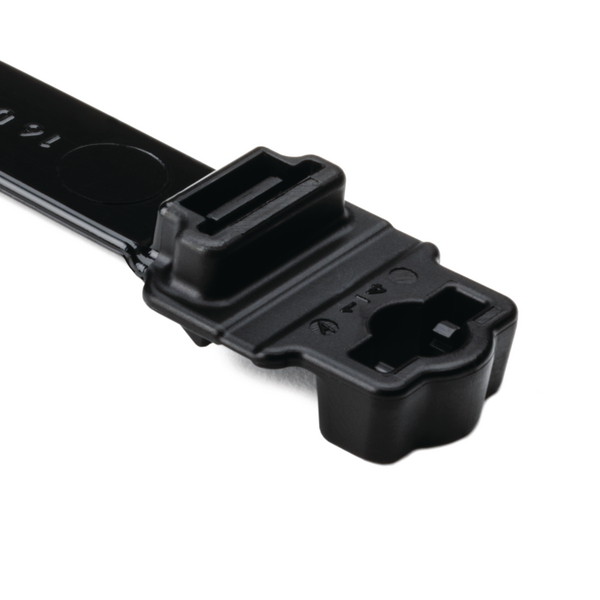

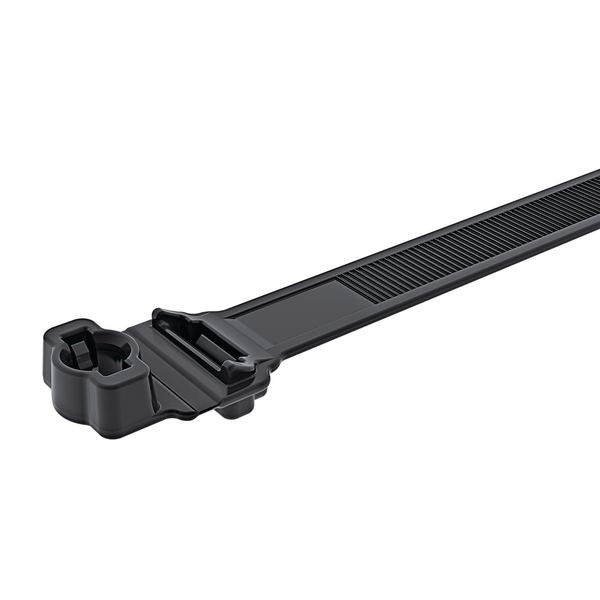

1-Piece Fixing Ties for Weld Studs, for Heavy Duty Applications WSR250

WS-Series for 6.35 mm threaded studs, Article number: 157-00402

Features

  • One-piece fixing ties
  • High specification materials
  • Superior design
  • Suitable for complex applications

Certifications & Approvals

Application

Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.

WS-Series for 6.35 mm threaded studs is suitable for following markets and industries

Colour Black (BK)
Fixation Method Weld Stud Fixing
Identification Plate Position none
Pack Cont. 300Bag
Package Quantity per Bag
PART DESCRIPTION WSR250-PA66HIRHSUV-BK
Product Family WS-Series for 6.35 mm threaded studs
Product Group 1-Piece Fixing Ties for Weld Studs, for Heavy Duty Applications
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type WSR25-HIRHS-BK-D1
Variant Inside Serrated
Bundle ∅ max. 104.1mm
Bundle ∅ min. 9.5mm
Length (L) 398.8mm
Min.Tensile Strength 534N
Stud ∅ M6
Stud ∅ (imperial) 1/4"
Width (W) 12.7mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous good No
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Operating Temperature - °C -40 °C to +110 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
EAN / GTIN 4031026312637
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.5m
Packaging 1 - Qty 300
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0018
Packaging 1 - Weight (kg) 2.4kg
Packaging 1 - Width (m) 0.12m
Packaging 3 - Height (m) 0.225m
Packaging 3 - Length (m) 0.605m
Packaging 3 - Qty 1200
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0538
Packaging 3 - Weight (kg) 10.45kg
Packaging 3 - Width (m) 0.395m
Packaging 4 - Height (m) 1.045m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 14400
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.003
Packaging 4 - Weight (kg) 146.4kg
Packaging 4 - Width (m) 0.8m
Weight 2.4kg
ETIM 6.0 EC000046
ETIM 7.0 Key EC000046
UNSPSC Key 39121703
