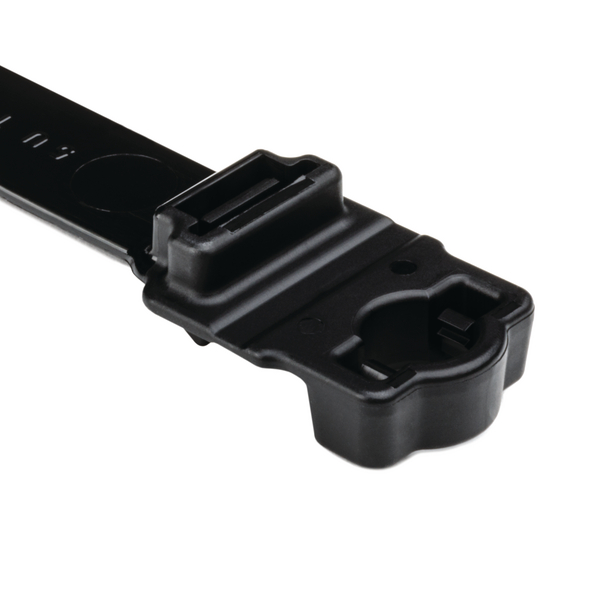

1-Piece Fixing Ties for Weld Studs, for Heavy Duty Applications WSR8MM

Article number: 157-00036

Features

  • One-piece fixing ties
  • High specification materials
  • Superior design
  • Suitable for complex applications

Certifications & Approvals

Application

Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.

WSR8MM is suitable for following markets and industries

Application Tool MK9P, EVO9HT
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) 1-Piece fixing tie 398.8x12.7 mm, for weld studs, PA66HIRHSUV, black
Fixation Method Weld Stud Fixing
Identification Plate Position none
Pack Cont. 300Bag
Package Quantity per Bag
PART DESCRIPTION WSR8MM-PA66HIRHSUV-BK
Product Group 1-Piece Fixing Ties for Weld Studs, for Heavy Duty Applications
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type WSR8MM
Variant Inside Serrated
Bundle ∅ max. 104.1mm
Bundle ∅ min. 9.5mm
Length (L) 398.8mm
Min.Tensile Strength 534N
Stud ∅ M8
Stud ∅ (imperial) 5/16"
Width (W) 12.7mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous good No
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Operating Temperature - °C -40 °C to +110 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
EAN / GTIN 4031026425580
Packaging 1 - Qty 300
Packaging 1 - Type Bag
Packaging 1 - Weight (kg) 2.2734kg
Packaging 3 - Height (m) 0.225m
Packaging 3 - Length (m) 0.605m
Packaging 3 - Qty 1200
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0538
Packaging 3 - Weight (kg) 9.9436kg
Packaging 3 - Width (m) 0.395m
Packaging 4 - Height (m) 1.045m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 14400
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.003
Packaging 4 - Weight (kg) 140.304kg
Packaging 4 - Width (m) 0.8m
Weight 2.271kg
ETIM 6.0 EC000046
ETIM 7.0 Key EC000046
UNSPSC Key 39121703
