Category 6A U/FTP Shielded Cable
Art.-No. 851-05049
| CA159
|
Copied
This product is not available anymore.
Alternative product available
- Exceeds Category 6A performance standards
- Uncompromised support for 10G
- Shielding eliminates alien crosstalk
- Metre marked for accurate measuring
- Supplied on 500m drums
Request your individual offer now
Request quote
More products in this product group:
| Colour | Violet (VT) |
| Description |

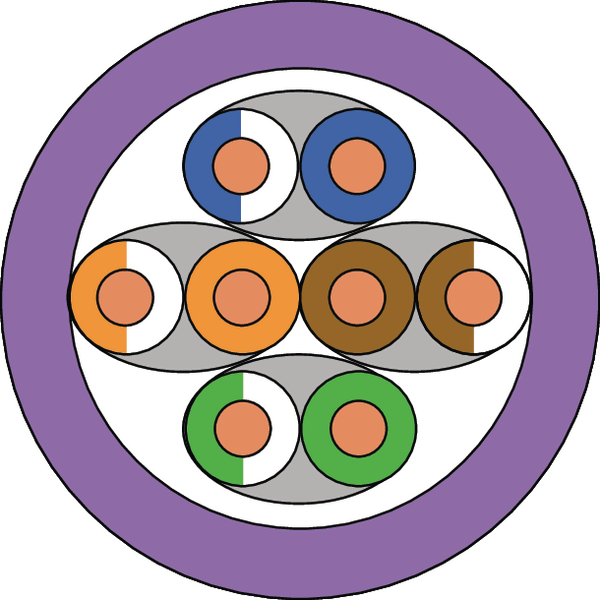

The Category 6A Cable is a U/FTP construction with individual pair screening eliminating the possibility of alien crosstalk. The cable is marked at 1m intervals for accurate measuring. |
| Local order number | CA159 |
| PART DESCRIPTION | CA159 |
| Pack Cont. | 500m |
| Package Content packed in | drum |
| Performance Category | Category 6A (Class EA) |
| Product Family | Category 6A U/FTP Shielded Cable |
| Product Group | Category 6A U/FTP Shielded Cable |
| Technical Description |
The Category 6A Cable is constructed as a U/FTP Cable and exceeds the relevant performance requirements of ISO/IEC 11801-2 and TIA/ANSI 568-C.2 EN50173, IEC 61156-5, EN 50288-10-1. The LS0H sheath conforms with fire rating IEC 60332-1, 60754-2 and 61034. The copper conductor is AWG 23 and the cable has an nominal overall diameter of 7.2mm. This cable complies with the requirements within the Construction Products regulations EN50575:2014+A1:2016 - Power, control and communication cables. Cables for general applications in construction works subject to reaction to fire requirements. A copy of the Declaration Of Performance is available from HellermannTyton upon request. Please quote the part and serial numbers when contacting sales@htdata.co.uk |
| Type | CA159 |
