Category 6A F/FTP Shielded Bulk Cable - Cca
Art.-No. 851-05105 | CA199 Details

  • Exceeds Category 6A performance standards
  • Uncompromised support for 10G
  • Shielding eliminates alien crosstalk
  • CPR Euroclass rating: Cca, S1a, d1, a1
  • Suitable for Cca, Dca and Eca specified installations
  • Metre marked for accurate measuring

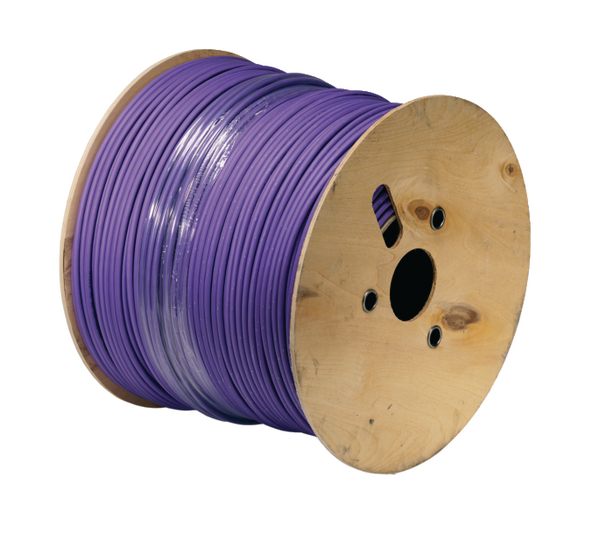

  • Supplied on 500m drums
Show more

Request your individual offer now

Colour Violet (VT)

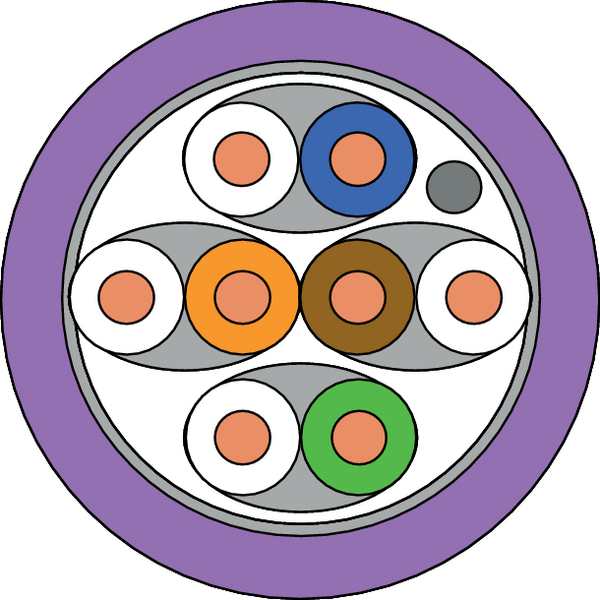

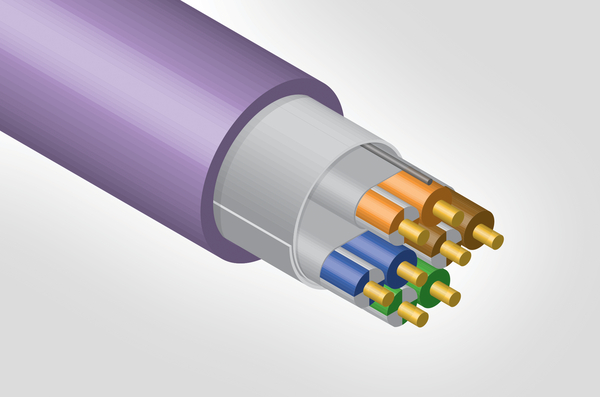

Description Category 6A Cable is a F/FTP construction with individual pair screening eliminating the possibility of alien crosstalk. The cable is marked at 1m intervals for accurate measuring. Conforms to CPR Euroclass rating Cca, S1a, d1, a1
PART DESCRIPTION CA199
Pack Cont. 500m
Package Content packed in drum
Performance Category Category 6A (Class EA)
Product Family Category 6A F/FTP Shielded Cable - Cca
Product Group Category 6A F/FTP Shielded Cable - Cca
Short Description Category 6A F/FTP Shielded Bulk Cable - Cca
Technical Description The Category 6A Cable is constructed as a U/FTP Cable and exceeds the relevant performance requirements of ISO/IEC 11801-2 and TIA/ANSI 568-C.2 EN50173, IEC 61156-5, EN 50288-10-1. The LSHF-FR sheath conforms with fire rating IEC 60332-1, 60332-3-24, 60754-2 and 61034. The copper conductor is AWG 23 and the cable has an nominal overall diameter of 7.6mm. This cable complies with the requirements within the Construction Products regulations EN50575:2014+A1:2016 - Power, control and communication cables. Cables for general applications in construction works subject to reaction to fire requirements
Type CA199
Length (L) 500m
Hazardous Goods No
Country of Origin GB
Customs Number 85444993
GTIN-13 / EAN 5022660167935
