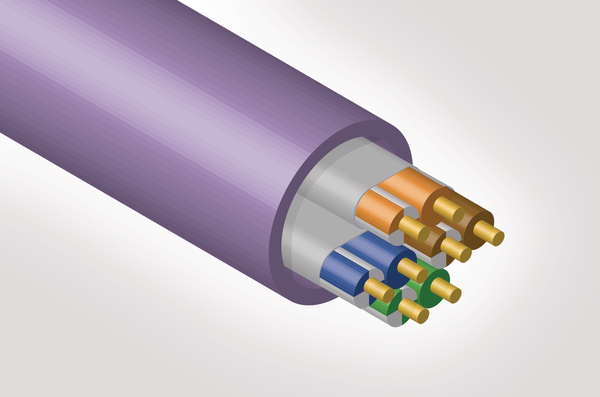

Category 6A U/FTP Shielded Bulk Cable - B2ca
Art.-No. 851-05115
|
|
Copied
- Exceeds Category 6A performance standards
- Uncompromised support for 10G
- Shielding eliminates alien crosstalk
- CPR Euroclass rating: B2ca-S1a-d1-a1
- Suitable for Cca, Dca and Eca specified installations
- Metre marked for accurate measuring
- Supplied in 305m Reelex box
Show more
Show less
Request quote
More products in this product group:
| Colour | Violet (VT) |

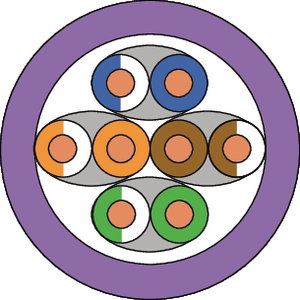

| Description | Category 6A Cable is a U/FTP construction with individual pair screening eliminating the possibility of alien crosstalk. The cable is marked at 1m intervals for accurate measuring. Conforms to CPR Euroclass rating B2ca-S1a-d1-a1 |
| PART DESCRIPTION | CA206 |
| Package Content | 305m |
| Package Content packed in | Box |
| Performance Category | Category 6A (Class EA) |
| Product Family | Category 6A U/FTP 305m Reelex Cable - B2ca |
| Product Group | Category 6A U/FTP 305m Reelex Cable - B2ca |
| Short Description | Category 6A U/FTP Shielded Bulk Cable - B2ca |
| Technical Description | The Category 6A Cable is constructed as a U/FTP Cable and exceeds the relevant performance requirements of ISO/IEC 11801-2 and TIA/ANSI 568-C.2 EN50173, IEC 61156-5, EN 50288-10-1. The LSHF-FR sheath conforms with fire rating IEC 60332-1, 60332-3-24, 60754-2 and 61034. The copper conductor is AWG 23 and the cable has an nominal overall diameter of 7.6mm. This cable complies with the requirements within the Construction Products regulations EN50575:2014+A1:2016 - Power, control and communication cables. Cables for general applications in construction works subject to reaction to fire requirements |
| Type | CA206 |
