Cast resin joint, armoured, Straight-through i, 3 x 1.5mm² to 5 x 6mm², L=190mm, 165 ml/226 g, Polyurethane resin (PUR) green
Art.-No. 435-12209 | i-1 Premium A-PUR-GN Details

  • Two-part, impact-proof, transparent moulding shells
  • Compact, optimized dimensions
  • Standard cable diameters indicated on the shells
  • Safe-Filling system (SF)
  • Immediately ready for use
  • Longitudinally and transversely watertight
  • Joint can be submerged directly after casting
  • Connectors for aluminium and copper conductors
  • Safe connection for up to 5 core cables
Show more

Request your individual offer now

Application RELICON cast resin Premium cable joints for armoured cables are suitable for polymeric cables with earth bonding/continuity of AWA and SWA. The transparent two-chamber resin bag makes the mixing process visible and therefore more reliable. Integrated connector block with 6 connectors that guarantee optimum and stable distances with smaller cable cross-sections. Included all necessary earth continuity parts that suits the complete range of the joint and consists of constant force springs with straight ends for easy installation without any classical injuries. The range of the constant force springs is also printed on the constant force spring to make installation comfortable and to avoid mistakes. Application: Public and private networks, In- and outdoor,above ground, underground or submerged ,Cable ducts
Application Tool PTS4, ASS103, RCS0425
Colour Green (GN)
Content Cast resin PUR 33 with ‘’colour change’’ in a transparent two-chamber pouch
PP Moulding shells, transparent

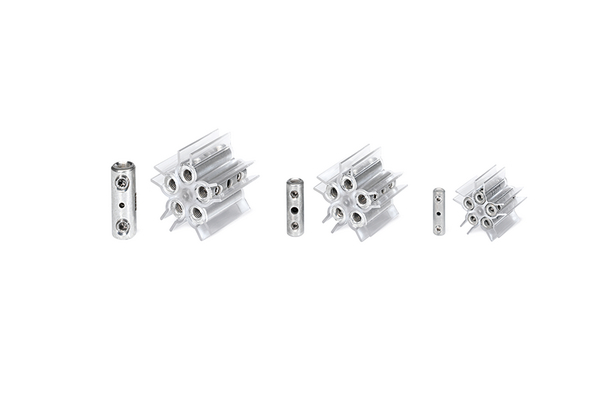

Crimp connector included
Earthing braid and constant force springs for armour continuity
SF-filling system and adapter
Emery cloth for roughening the cable sheath
HelaTape-Flex 15 insulating tape
HelaTape-Power 600 tape
Protective gloves
Detailed installation instruction and material list
Material Polyurethane resin (PUR)
No. of Wires 5
Pack Cont. 1Set
Package Content packed in set
PART DESCRIPTION i-1 Premium A-PUR-GN
Product Family RELICON i-A Line Premium SF Armoured with PUR 33
Product Group Straight-through cable joints with connectors
Short Description Straight-through joint i-1-A / SF 3x1.5 to 5x6
Variant Cast resin
Cable Diameter Main Cable 6-24mm

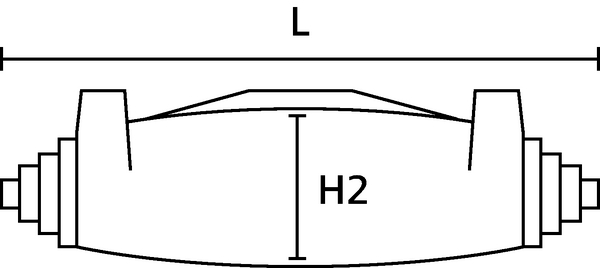

Height (H2) 36mm
Length (L) 190mm
Main Cabel max 5 x 6mm²
Main Cable min 3 x 1.5mm²
Resin Quantity 165 ml/226 g
Weight/Unit 0.48kg
ELV compliant Dir. Art. 4 (2) YES
Halogen-free Yes
Hazardous Goods No
Operating Temperature -25 °C to +130 °C
Shelf Life 48 months
Specifications
Voltage Range 0.6/1kV
Country of Origin PL
Customs Number 39095090
GTIN-13 / EAN 4031026627267
Packaging Bag
Packaging 1 - Height (m) 0.06m
Packaging 1 - Length (m) 0.24m
Packaging 1 - Qty 1
Packaging 1 - Type Carton
Packaging 1 - Volume (m³) 0.00245
Packaging 1 - Weight (kg) 0.98kg
Packaging 1 - Width (m) 0.17m
Packaging 3 - Height (m) 0.307m
Packaging 3 - Length (m) 0.344m
Packaging 3 - Qty 10
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0267
Packaging 3 - Weight (kg) 10.3kg
Packaging 3 - Width (m) 0.253m
Packaging 4 - Height (m) 1.065m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 300
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.022
Packaging 4 - Weight (kg) 330.0kg
Packaging 4 - Width (m) 0.8m
Storage Temperature +4 °C to +40 °C
ETIM 7.0 Key EC001169
ETIM 8.0 Key EC001169
ETIM 9.0 Key EC001169
