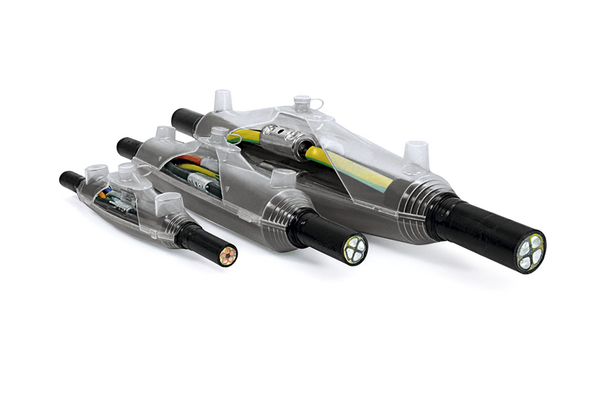

Cast resin joint, armoured, 5 x 10mm² to 5 x 35mm², L=360mm, 655 ml/897 g, Polyurethane resin (PUR) black
Art.-No. 435-12232
| i-3 A Premium-PUR-BK
|
Details
This product is not available anymore.
- Two-part, impact-proof, transparent moulding shells
- Compact, optimized dimensions
- Standard cable diameters indicated on the shells
- Safe-Filling system (SF)
- Immediately ready for use
- Longitudinally and transversely watertight
- Joint can be submerged directly after casting
- Connectors for aluminium and copper conductors
- Safe connection for up to 5-core
Request your individual offer now
Request quote
More products in this product group:
| Application | RELICON cast resin cable Premium joints for armoured cables are suitable for polymeric cables with earth bonding/continuity of SWA and STA. The transparent two-chamber resin bag makes the mixing process visible and therefore more reliable. Integrated connector block with 5 connectors that guarantee optimum and stable distances with smaller cable cross-sections. Included all necessary earth continuity parts that suits the complete range of the joint and consists of constant force springs with straight ends for easy installation without any classical injuries. The range of the constant force springs is also printed on the constant force spring to make installation comfortable and to avoid mistakes. Application: Public and private networks, In- and outdoor, above ground, underground or submerged, cable ducts |
| Application Tool | PTS4, ASS103, RCS0425 |
| Colour | Black (BK) |
| Content |
Cast resin PUR771 in a transparent two-chamber pouch PP Moulding shells, transparent Connector block with 5 mechanical connectors pre-installed Earthing braid and constant force springs for armour continuity SF-filling system and adapter Emery cloth for roughening the cable sheath HelaTape-Flex 15 insulating tape HelaTape-Power 715 tape Protective gloves Detailed installation instruction and material list |
| Material | Polyurethane resin (PUR) |
| No. of Wires | 5 |
| Pack Cont. | 1Set |
| Package Content packed in | set |
| PART DESCRIPTION | i-3 A Premium-PUR-BK |
| Product Family | RELICON i-A Line SF Premium Armoured with PUR 771 |
| Product Group | Straight-through cable joints with connectors |
| Short Description | Straight-through joint i-3-A / 5 x 10 - 4 x50mm²/ 5 x 35mm² |
| Variant | Cast resin |
Download
| Country of Origin | DE |
| GTIN-13 / EAN | 4031026627496 |
| Packaging | Bag |
| Packaging 3 - Height (m) | 0.07m |
| Packaging 3 - Length (m) | 0.38m |
| Packaging 3 - Qty | 1 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0056m³ |
| Packaging 3 - Weight (kg) | 1.745kg |
| Packaging 3 - Width (m) | 0.21m |
| Packaging 4 - Height (m) | 1.194m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 150 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.146m³ |
| Packaging 4 - Weight (kg) | 282.75kg |
| Packaging 4 - Width (m) | 0.8m |
| Storage Temperature | +4 °C to +40 °C |
