Cast resin joint, Straight-through i, 5 x 10mm² to 5 x 35mm², L=360mm, 655 ml/897 g, Polyurethane resin (PUR) green
Art.-No. 435-00083 | i-3 / SF-PUR-GN Details

  • Colour changes from blue to green whilst mixing
  • Two-part, impact-proof, transparent moulding shells
  • Compact, optimized dimensions
  • Standard cable diameters indicated on the shells

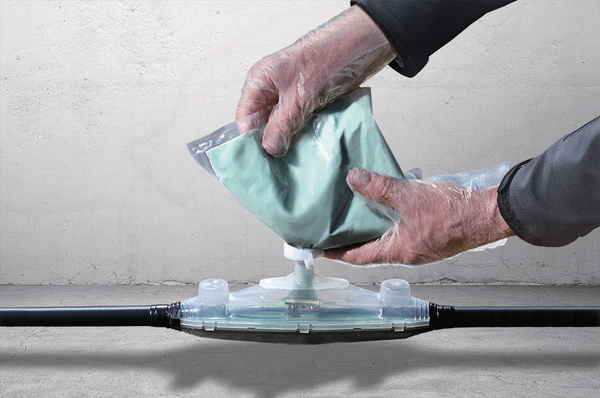

  • Safe-Filling system (SF)
  • Immediately ready for use
  • Longitudinally and transversely watertight

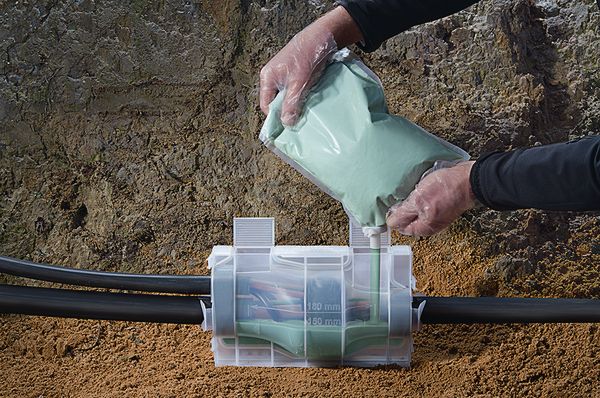

  • Joint can be submerged directly after casting
Show more

Request your individual offer now

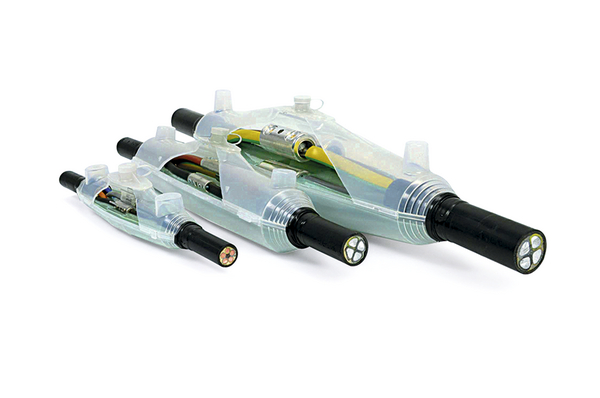

Application RELICON straight-through joints are made for installations in low-voltage electrical networks. They are suitable for jointing on polymeric cables and wires made of PVC, XLPE, PE, EPR and utility cables. Application: Connections in industrial buildings, power supply in the ground, outdoors and underwater.
Application Tool PTS4, ASS103, RCS0425
Colour Green (GN)
Content Cast resin PUR 33
Two-chamber pouch, transparent
Moulding shells, transparent

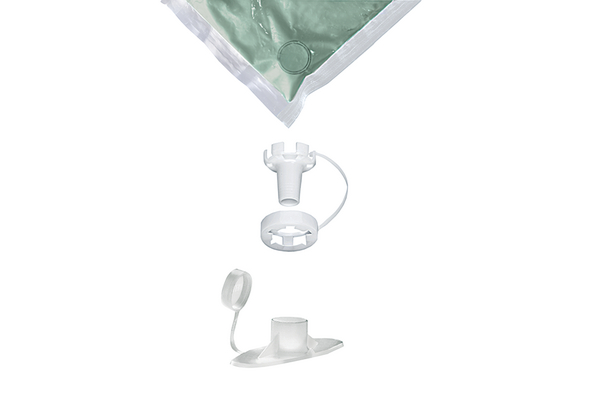

SF-system and nozzle
Protective gloves, emery cloth, installation instructions
HelaTape vinyl electrical tape
Spacer for max. 5 core cable (i-1 to i-4)
Material Polyurethane resin (PUR)
No. of Wires 5
PART DESCRIPTION i-3 / SF-PUR-GN
Pack Cont. 1Pack
Package Content packed in Pack
Product Family RELICON i-Line SF with PUR 33
Product Group Straight-through cable joints without connectors
Short Description Straight-through joint i-3 / SF 5x10 to. 5x35
Type i-3 / SF
Variant Cast resin
Cable Diameter Main Cable 21-39mm
Conductor Size Range mm² 10-35mm²

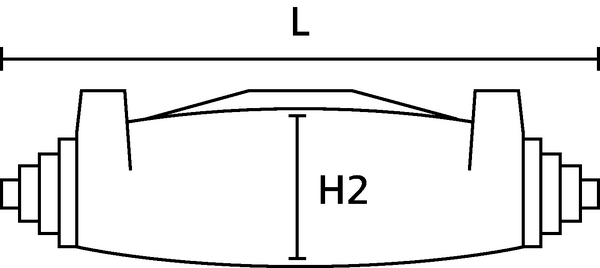

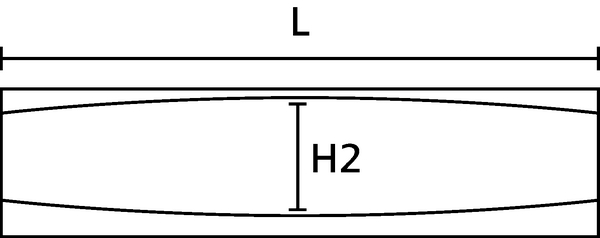

Height (H2) 54mm
Length (L) 360mm
Main Cabel max 5 x 35mm²
Main Cable min 5 x 10mm²
Weight/Unit 1.145kg
ELV compliant Dir. Art. 4 (2) YES
Halogen-free No
Hazardous Goods No
Operating Temperature -25 °C to +120 °C
ROHS compliant Yes
Shelf Life 48 months
Specifications
Vibrations absorbing No
Voltage Range 0.6/1kV
Country of Origin PL
Customs Number 39095090
GTIN-13 / EAN 4031026631189
Packaging Bag
Packaging 1 - Height (m) 0.07m
Packaging 1 - Length (m) 0.38m
Packaging 1 - Qty 1
Packaging 1 - Type Carton
Packaging 1 - Volume (m³) 0.00585
Packaging 1 - Weight (kg) 1.645kg
Packaging 1 - Width (m) 0.22m
Packaging 3 - Height (m) 0.171m
Packaging 3 - Length (m) 0.56m
Packaging 3 - Qty 1
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0172
Packaging 3 - Weight (kg) 1.865kg
Packaging 3 - Width (m) 0.18m
Packaging 4 - Height (m) 0.964m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 120
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.925
Packaging 4 - Weight (kg) 276.68kg
Packaging 4 - Width (m) 0.8m
Storage Temperature +4 °C to +40 °C
ETIM 7.0 Key EC001169
ETIM 8.0 Key EC001169
ETIM 9.0 Key EC001169
