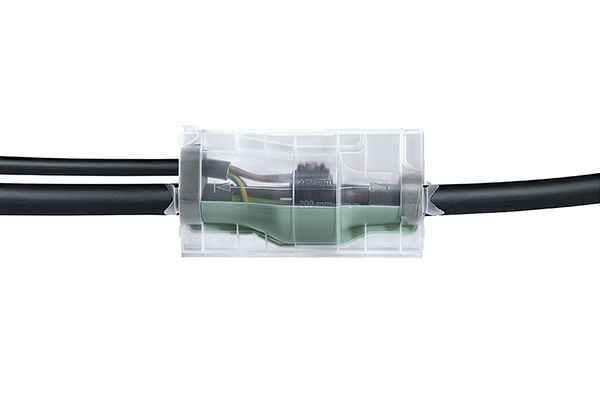

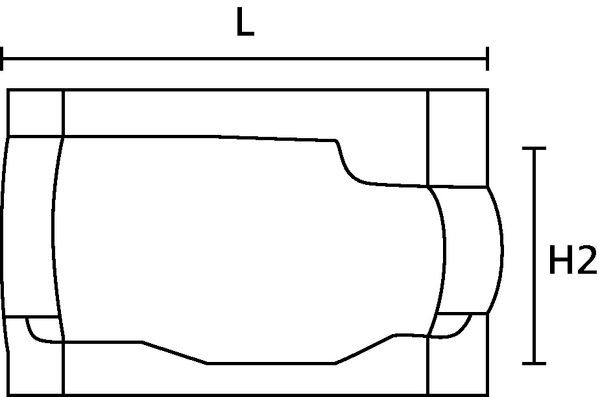

Cast resin joint, 4 x 35mm² to 4 x 95mm², L=360mm, 2800 ml/3836 g, Polyurethane resin (PUR) green
Art.-No. 435-00175
| PAH-3-135/360-B-SF-S-PUR-GN
|
Details
This product is not available anymore.
- Colour changes from blue to green whilst mixing
- Impact-proof, transparent moulding shell
- Compact, optimized dimensions
- Longitudinally and transversely watertight
- SF-system
- Joint can be submerged directly after casting
- Immediately ready for use
- Suitable for various compact branch clamping rings
Request your individual offer now
Request quote
More products in this product group:
| Application | The parallel branch joint PAH is a universal straight-through and branch joint. Suitable as single branch joint with various commercially available branch clamping rings. For polymeric cables and wires made of PVC, XLPE, PE, EPR and utility cables. Application: Especially designed branch joint for building and domestic connections to the low-voltage electrical network. Underground, submerged, outdoor, indoor. |
| Application Tool | PTS4, ASS103, RCS0425 |
| Colour | Green (GN) |
| Content |
Cast resin PUR 33 In a two-chamber pouch Transparent moulding shell Foam seals, protective gloves, emery cloth Cleaning cloth, cable kit, installation instructions SF-nozzle (two-chamber pouch) |
| Material | Polyurethane resin (PUR) |
| No. of Wires | 4 |
| Pack Cont. | 1Set |
| Package Content packed in | Box |
| PART DESCRIPTION | PAH-3-135/360-B-SF-S-PUR-GN |
| Product Family | RELICON PAH-3 with PUR 33 |
| Product Group | Parallel branch cable joints house connections |
| Short Description | Parallel branch joint house connections 4x35 to 4x185, 4x6 to 4x70 |
| Variant | Cast resin |
Download
| Country of Origin | DE |
| Customs Number | 39095010 |
| GTIN-13 / EAN | 4250596415504 |
| Packaging | Bag |
| Packaging 1 - Height (m) | 0.17m |
| Packaging 1 - Length (m) | 0.517m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | Pack |
| Packaging 1 - Volume (m³) | 0.02663m³ |
| Packaging 1 - Weight (kg) | 5.354kg |
| Packaging 1 - Width (m) | 0.303m |
| Packaging 4 - Height (m) | 10.95m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 20 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 10.512m³ |
| Packaging 4 - Weight (kg) | 128.08kg |
| Packaging 4 - Width (m) | 0.8m |
| Storage Temperature | +4 °C to +40 °C |
