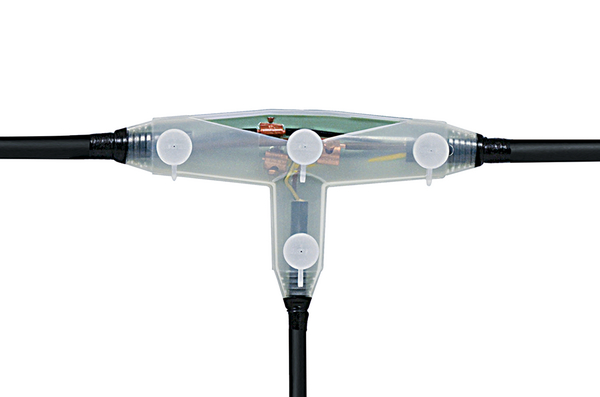

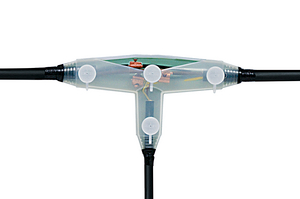

Cast resin joint, Branch T, 5 x 6mm² to 5 x 16mm², L=380mm, 2045 ml/2802 g, Polyurethane resin (PUR) green
Art.-No. 435-12070 | T-2 / SF-PUR-GN Details

  • Colour changes from blue to green whilst mixing
  • Two-part, impact-proof, transparent moulding shells
  • Compact, optimized dimensions
  • Standard cable diameters indicated on the shells
  • SF-system
  • Immediately ready for use
  • Longitudinally and transversely watertight
  • Joint can be submerged directly after casting
Show more

Request your individual offer now

Application RELICON branch joints are made for installations in low-voltage electrical networks. They are suitable for jointing on polymeric cables and wires made of PVC, XLPE, PE, EPR and utility cables. Application: Connections in industrial buildings, power supply in the ground, outdoors and underwater.
Application Tool PTS4, ASS103, RCS0425
Cable ∅ max 32mm
Cable ∅ min 25mm
Colour Green (GN)
Content Cast resin PUR 33
Two-chamber pouch, transparent
Moulding shells, transparent
SF-system and nozzle
Protective gloves, emery cloth, installation instructions
HelaTape vinyl electrical tape
Material Polyurethane resin (PUR)
No. of Wires 5
Pack Cont. 1Set
Package Content packed in set
PART DESCRIPTION T-2 / SF-PUR-GN
Product Family RELICON T-Line SF with PUR 33
Product Group Branch cable joints
Short Description Branch joint T-2 / SF 5x6 to 5x16, 5x1,5 to 5x10
Variant Cast resin
Angle 90°
Banch Cable min 5 x 1.5mm²
Branch Cable max 5 x 10mm²
Cable Diameter Branch Cable 18-25mm
Cable Diameter Main Cable 25-32mm
Connector none

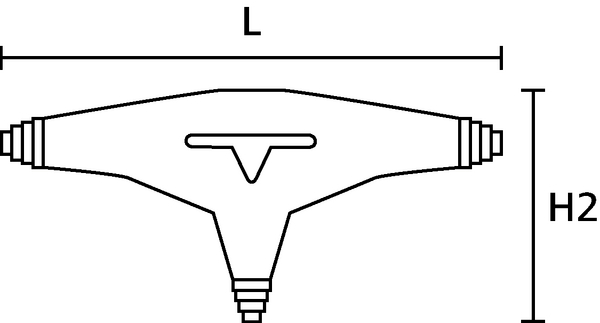

Height (H2) 225mm
Length (L) 380mm
Main Cabel max 5 x 16mm²
Main Cable min 5 x 6mm²
Resin Quantity 2045 ml/2802 g
Weight/Unit 3.228kg
ELV compliant Dir. Art. 4 (2) YES
Halogen-free No
Hazardous Goods No
Operating Temperature -25 °C to +120 °C
Shelf Life 48 months
Specifications
Country of Origin PL
Customs Number 39095090
GTIN-13 / EAN 4031026626871
Packaging Bag
Packaging 3 - Height (m) 0.18m
Packaging 3 - Length (m) 0.52m
Packaging 3 - Qty 1
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.029
Packaging 3 - Weight (kg) 3.728kg
Packaging 3 - Width (m) 0.31m
Packaging 4 - Height (m) 1.224m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 24
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.175
Packaging 4 - Weight (kg) 110.472kg
Packaging 4 - Width (m) 0.8m
Storage Temperature +4 °C to +40 °C
ETIM 7.0 Key EC001170
ETIM 8.0 Key EC001170
ETIM 9.0 Key EC001170
