25/05/2024

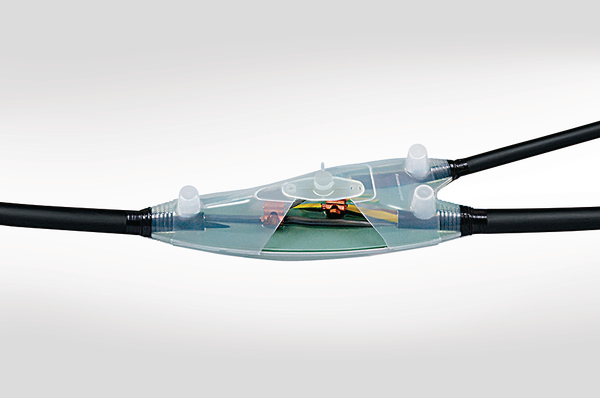

Cast resin joint, Branch Y, 4 x 16mm² to 5 x 16mm², L=330mm, 955 ml/1308 g, Polyurethane resin (PUR) green
Art.-No. 435-12066 | Y-3 / SF-PUR-GN Details

  • Colour changes from blue to green whilst mixing
  • Two-part, impact-proof, transparent moulding shells
  • Compact, optimized dimensions
  • Standard cable diameters indicated on the shells
  • SF-system
  • Immediately ready for use
  • Longitudinally and transversely watertight
  • Joint can be submerged directly after casting
Show more

Request your individual offer now

Application RELICON branch joints are made for installations in low-voltage electrical networks. They are suitable for jointing on polymeric cables and wires made of PVC, XLPE, PE, EPR and utility cables. Application: Connections in industrial buildings, power supply in the ground, outdoors and underwater.
Application Tool PTS4, ASS103, RCS0425
Colour Green (GN)
Content Cast resin PUR 33
Two-chamber pouch, transparent
Moulding shells, transparent
SF-system and nozzle
Protective gloves, emery cloth, installation instructions
HelaTape vinyl electrical tape
Material Polyurethane resin (PUR)
No. of Wires 5
PART DESCRIPTION Y-3 / SF-PUR-GN
Pack Cont. 1Set
Package Content packed in set
Product Family RELICON Y-Line SF with PUR 33
Product Group Branch cable joints
Short Description Branch joint Y-3 / SF 4x16 to 5x16, 4x10 to 5x10
Type Y-3 / SF
Variant Cast resin
Angle 20
Banch Cable min 4 x 10mm²
Branch Cable max 5 x 10mm²
Cable Diameter Branch Cable 13-28mm
Cable Diameter Main Cable 10-40mm
Connector none

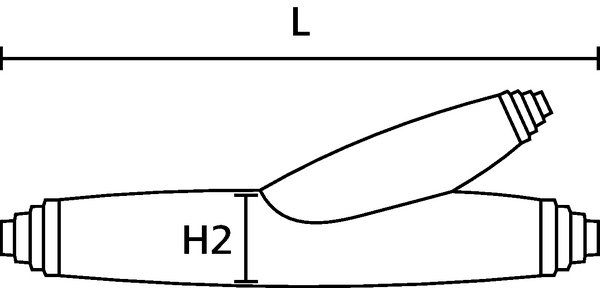

Height (H2) 90mm
Length (L) 330mm
Main Cabel max 5 x 16mm²
Main Cable min 4 x 16mm²
Resin Quantity 955 ml/1308 g
Weight/Unit 1.788kg
ELV compliant Dir. Art. 4 (2) YES
Halogen-free No
Hazardous Goods No
Operating Temperature -25 °C to +120 °C
ROHS compliant Yes
Shelf Life 48 months
Country of Origin PL
Customs Number 39095090
GTIN-13 / EAN 4031026626833
Packaging Bag
Packaging 3 - Qty 1
Packaging 3 - Weight (kg) 2.008kg
Packaging 4 - Height (m) 1.17m
Packaging 4 - Qty 48
Packaging 4 - Weight (kg) 117.384kg
Storage Temperature +4 °C to +40 °C
