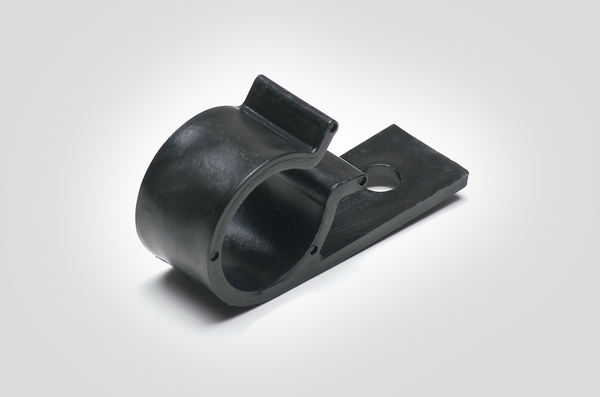

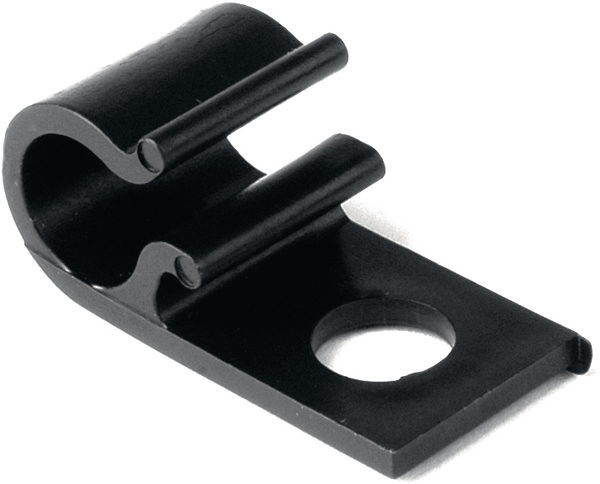

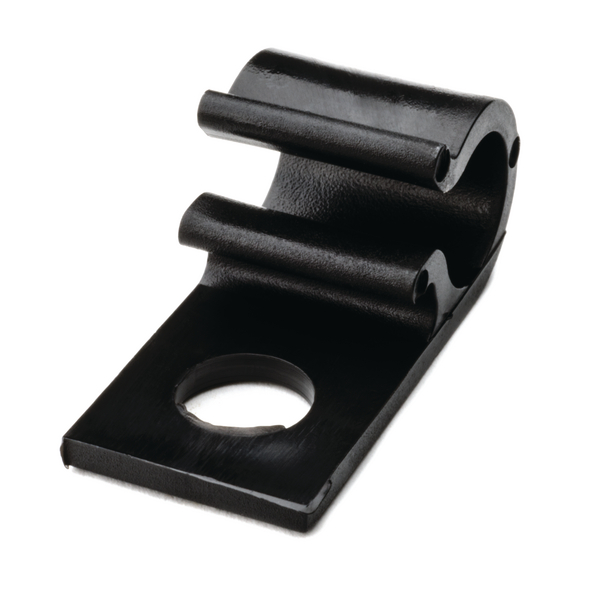

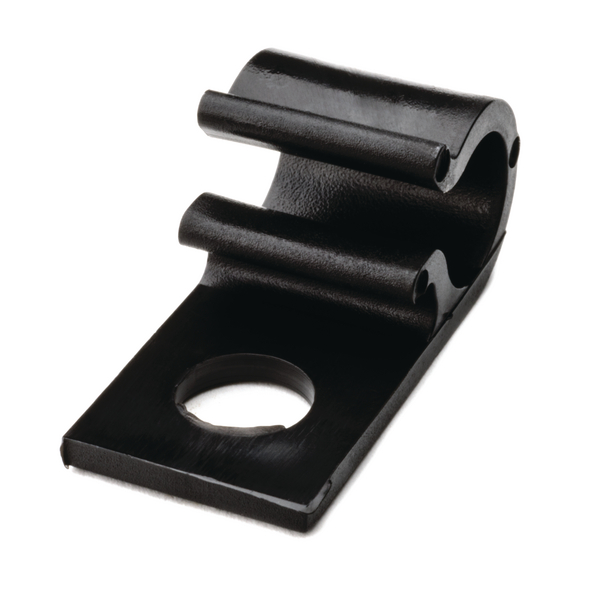

Cable clip with pipe/tube holder/for screw fixation, Ø8.0 mm, Dmin=10.0mm, Dmax=10.0mm, black, 500pcs.
Art.-No. 211-70200 | 8D10-POM-BK Details

  • Screwed D-Clips available in 3 sizes
  • Guaranteed time and cost saving by simply pressing cable into holder
  • Flexible grip for later removal or replacement of cables
  • 3 different bore diameters available for fixing holders

Request your individual offer now

Application Developed for fixing pipes, cables and hoses, the D-Clips elastic locking system ensures optimal fixing and at the same time, easy removal of the fixed elements by simply pressing the lower latch down and pulling the fixed element.
Colour Black (BK)
Fixation Method screw-hole
Local order number D10.NB6P
Material Polyacetal (POM)
Pack Cont. 500pcs.
Package Content packed in Bag
PART DESCRIPTION 8D10-POM-BK
Product Family D-Clip Series
Product Group Screw Mount
Short Description Screw Mount black
Variant Closed
Bundle Diameter max (Metric) 10.0mm
Bundle ∅ 10.0-10.0mm
Bundle ∅ min. 10.0mm

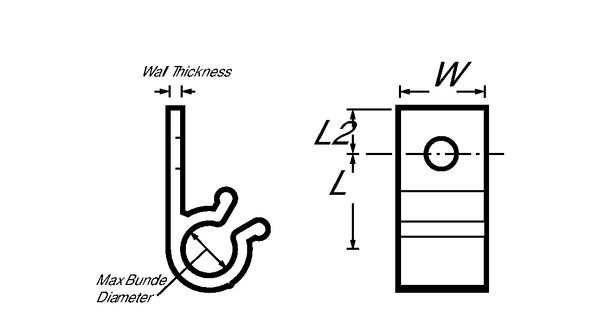

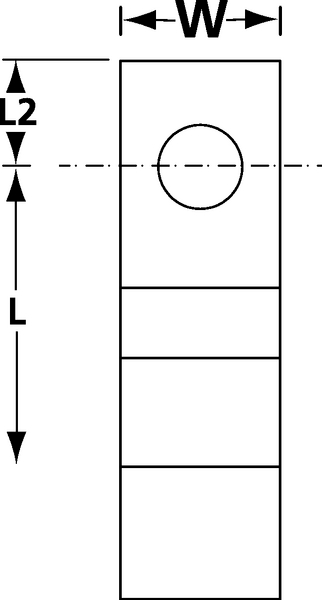

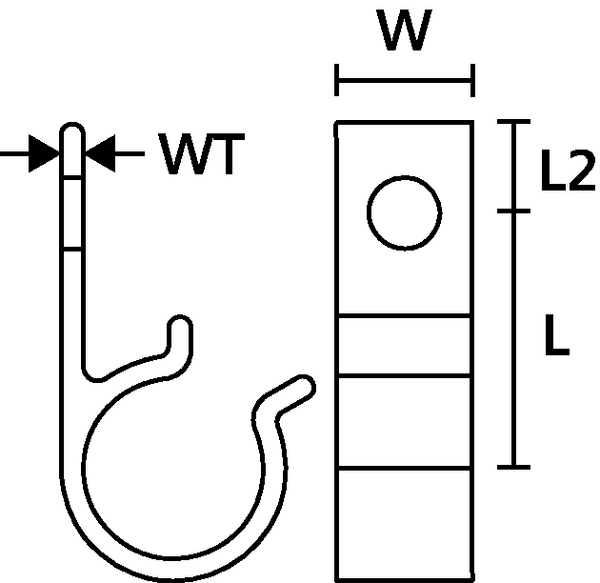

for Hole ∅ (FH) 8.0 mm
Length (L) 17.0mm
Length (L2) 8.0mm
Nominal ∅ 10.0mm
Nominal ∅ (imperial) 0.38"
Wall (WT) 2.0mm
Wall (WT) (imperial) 0.08"
Weight/Unit 0.0025kg
Width (W) 15.0mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +90 °C
Specifications
UV-Stabilised (Yes/No) No
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660023392
Packaging 1 - Height (m) 0.109m
Packaging 1 - Length (m) 0.201m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00543
Packaging 1 - Weight (kg) 1.250001kg
Packaging 1 - Width (m) 0.248m
Packaging 3 - Height (m) 0.345m
Packaging 3 - Length (m) 0.38m
Packaging 3 - Qty 6000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0498
Packaging 3 - Weight (kg) 15.620012kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.179m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 108000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.132
Packaging 4 - Weight (kg) 302.16kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
