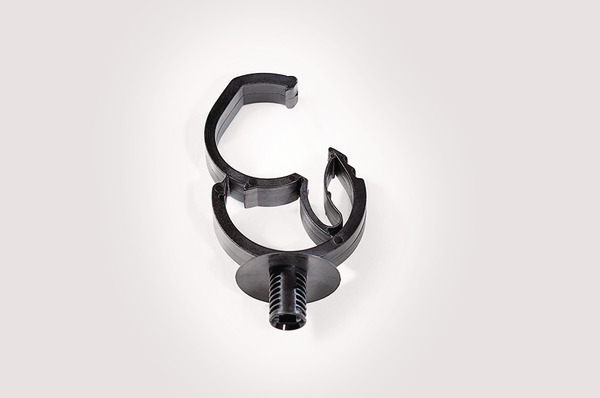

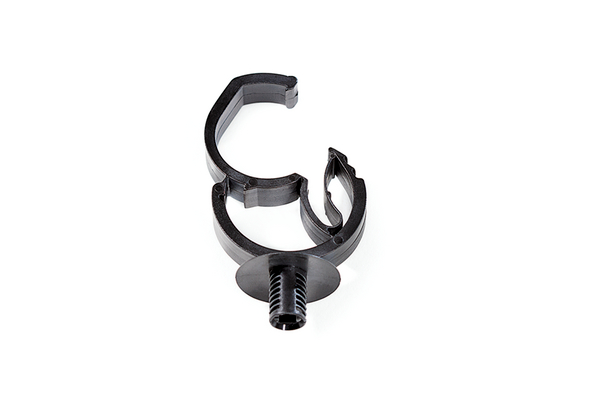

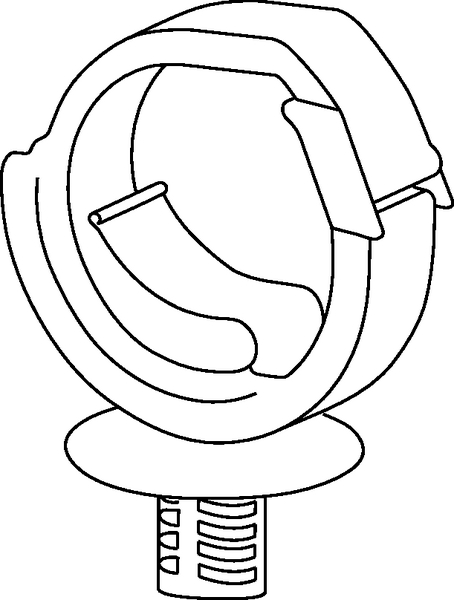

Cable clip for stud, Dmin=19.0mm, Dmax=28.0mm, ⌀5.0 mm
Art.-No. 151-00372
| AHC3SB-PA66HIRHS-BK
|
Copied
- Attached to panel before cable installation
- Simply push cable into place to activate automatic locking feature
- Three-stage ratchet closure
- The clip can be reopened
Request your individual offer now
Request quote
More products in this product group:
| Application | Offering a simple and secure method of attaching cables to panels. Originally designed for the automotive industry, these products are used in a wide range of applications with sheet metal panels across various industries. |
| Colour | Black (BK) |
| Key product features | for faster processing, for multiple routing, vibration absorbing, releasable, removable |
| Local order number | 17058 |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | AHC3SB-PA66HIRHS-BK |
| Package Content | 1000pcs. |
| Package Content packed in | Carton |
| Product Family | AHC Series for tubes and harnesses |
| Product Group | Fixing elements for tubes and harnesses with automatic locking feature |
| Short Description | Harness Clip 19-28 mm, automatic close, stud size 5 mm, black |
| Type | AHC3SB |
